Diaphragm Control Valve

Diaphragm Control Valve utilizes a flexible diaphragm to regulate fluid flow. Actuation of the stem connected to the diaphragm flexes it, adjusting the flow area and controlling flow rate. This type of valve is favored for applications requiring cleanliness or handling abrasive or corrosive fluids. It offers tight shutoff capabilities and is suitable for managing slurries, viscous fluids, and hazardous chemicals. Diaphragm valves are commonly found in industries where precise flow control and resistance to harsh environments are essential, such as pharmaceuticals, water treatment, and chemical processing.

Diaphragm valves play a crucial role in shut-off and throttling services across diverse industries, including Chemical, Fossil Power Plants, Pharmaceutical, Mining, Nuclear Power Plants, and Water treatments. Capable of efficiently handling liquids, slurries, and vacuum/gas, these valves feature a flexible membrane, typically elastomer reinforced with metal, ensuring a secure seal. Tensioned by a stem/compressor with linear movement, the membrane contacts the body seal, effectively isolating the operating parts from the flow. This design renders diaphragm valves ideal for viscous, hazardous, abrasive, and corrosive flows, preventing contamination. Available in sizes ranging from 1/2 Inch to 14 Inch (DN15-DN350) with a CLASS 200 LB rating, they come in metals, solid plastics, rubber, and glass linings, catering to a wide range of chemical applications, including clear fluids and slurries. Their extended use extends to low-pressure and slurry fluid environments, where other valves may corrode or clog.
The Diaphragm Control Valve operates like a pinch clamp, sealing with a flexible diaphragm against a transverse weir. It's optimal for handling sticky fluids, slurries, corrosive, and hazardous substances, ensuring leak-tight closure. Ideal for high-purity fluids, it prevents contamination. With its low-pressure design due to a large diaphragm area, it's widely used for On/Off and throttling services in industries like Waste & Water Treatment, Filtration, and Chlorination. This valve is crucial for maintaining purity in fluid handling applications, making it indispensable for systems requiring precise control and resistance to contamination.
CNCV-240508-DCV-02
Discover our range of Pneumatic Diaphragm Control Valves, crafted from ASTM A216 WCB for durability and reliability. With a size of 1-1/2 inches and compatibility with Class 300 LB and PN25 pressure ratings, these valves are suitable for various industrial applications. Featuring Flanged Ends, they ensure secure connections for seamless integration into your systems. Engineered with Equal Percentage and Linear Characteristics, they provide precise control over flow rates, enhancing process efficiency and performance.
CNCV-240508-DCV-01

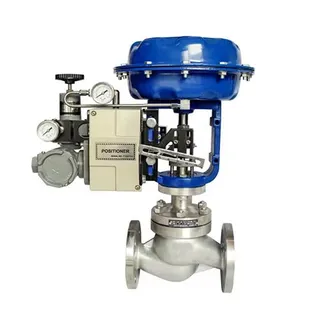

Explore our ASTM A995 4A Diaphragm Control Valve selection, designed for optimal performance in various applications. With a size of 4 inches and compatibility with Class 150 LB and PN20 pressure ratings, these valves provide robust control capabilities. Equipped with a Single Acting Pneumatic Actuator and Smart Positioner, they ensure precise and efficient operation. Featuring RF Flange Ends, they offer secure and reliable connections for seamless integration into your systems.
Introducing our Diaphragm Control Valves, crafted from a variety of robust materials including ASTM A216 WCB, ASTM A216WC6, ASTM A352 LCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3M, and ASTM A351 CF3. Available in Cast Globe Valve and Straight-through body types, with nominal sizes ranging from 3/4 inch to 1-1/4 inch. Pressure ratings span ANSI Class 125, 150, 300, and 600 LB, ensuring versatility across applications. Choose from a range of end connections including Flanged End options such as FF, RF, RJ, and LG, as well as Welded End choices like SW and BW, and Threaded End variants such as Threaded, RC, and NPT. Experience precision and reliability with our Diaphragm Control Valves.

What is a Diaphragm Control Valve?

A diaphragm control valve is a highly versatile and specialized valve designed to regulate, start, or stop the flow of liquids, gases, and slurries. It employs a flexible diaphragm as the primary closing element, providing precise control and ensuring a leak-free operation. This unique design makes it ideal for industries that prioritize sterility, contamination prevention, and durability, such as pharmaceuticals, food processing, water treatment, and chemical handling.

The diaphragm separates the flow medium from other valve components, preventing contamination and enhancing reliability. This isolation feature is a significant advantage over other valve types, making diaphragm control valves the preferred choice for critical applications requiring clean and dependable fluid handling.

How Does a Diaphragm Control Valve Work?

The diaphragm control valve functions by adjusting the position of a flexible membrane (the diaphragm) in response to pressure changes or manual adjustments. This mechanism allows the valve to precisely control the flow rate or completely isolate the fluid. Here are the key functions of a diaphragm control valve:

Precise Flow Control

The position of the diaphragm can be adjusted to increase, reduce, or halt the flow.

This precise control ensures accurate flow regulation, making it suitable for throttling applications.

Isolation

The valve provides a leak-tight seal, effectively isolating the fluid and preventing contamination or unwanted flow.

Corrosion Resistance

Depending on the material used for the diaphragm and lining, these valves can handle corrosive fluids, slurries, and hazardous chemicals without degradation.

Advantages of a Diaphragm Control Valve

Diaphragm control valves offer several benefits that set them apart from other valve types:

Leak-Free Performance

The diaphragm ensures a tight, reliable seal, preventing leaks and enhancing safety.

Contamination-Free Operation

The fluid is isolated from moving parts, making these valves ideal for sterile and hygienic processes.

Versatility

Suitable for handling various media, including liquids, gases, and slurries, even in corrosive or abrasive environments.

Low Maintenance

With fewer moving parts, diaphragm valves experience less wear and tear, reducing maintenance requirements and costs.

Flexibility

Available in weir-type and straight-through configurations to suit diverse applications, from throttling to managing viscous or particulate-laden media.

Ease of Replacement

The diaphragm is replaceable, extending the valve’s overall lifespan and reducing downtime during maintenance.

Installation and Maintenance Guidelines

Proper installation and maintenance are essential to ensure the optimal performance and longevity of a diaphragm control valve:

Pre-Installation Checks

Verify that the pipeline’s operating conditions align with the valve’s specified scope of use.

Clean the inner cavity of the valve to prevent dirt or debris from damaging the sealing components.

Avoiding Rubber Swelling

Do not apply grease or oil to the rubber lining or diaphragm, as this can cause swelling and reduce the valve’s service life.

Handling Precautions

Avoid using the handwheel or transmission mechanism for lifting.

Prevent collisions during transportation and installation.

Manual Operation

When operating the valve manually, avoid using auxiliary levers to prevent excessive torque from damaging the drive components or seals.

Storage Recommendations

Store diaphragm valves in a dry, ventilated room and avoid stacking to prevent damage.

Ensure both ends of the valve are sealed, and keep the opening and closing parts slightly open to maintain their condition.

Applications of Diaphragm Control Valves

Due to their robust design and exceptional performance, diaphragm control valves are widely used in various industries, including:

1. Pharmaceuticals: For sterile and contamination-free processes.

2. Food Processing: To handle sensitive liquids and ensure hygienic conditions.

3. Water Treatment: For controlling flow rates and isolating fluids in purification systems.

4. Chemical Processing: To manage corrosive and hazardous chemicals effectively.
