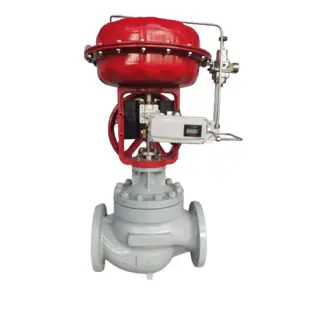

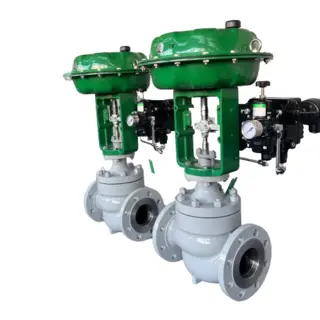

Diaphragm Pneumatic Control Valve, Cage-Guided, 6 IN, 150 LB

Key Specifications / Features

Pressure Balanced Cage Type Control Valves, designed for heavy-duty applications, boast a compact body with an S-shaped flow passage, minimizing pressure loss. Their stabilizer efficiently regulates turbulent flow, facilitating large flow capacity, rangeability, and precise flow characteristics. Featuring a pressure-balanced valve plug, they excel in controlling high differential pressures with minimal force. Integrated with straightforward mechanisms, the actuator employs a compact diaphragm actuator with multiple springs. These valves are versatile, catering to high/low temperature, high-pressure, or high-differential-pressure process lines, ensuring dynamic stability, low noise, and resistance to cavitation/flashing. Size Range spans from 3/4 Inch to 16 Inch, corresponding to DN20-DN400. Constructed with ASTM A216 WCB materials, they offer two valve actions: FO (Air to close) and FC (Air to open), each combined with respective direct or reverse action actuators.

Request a quote

Detail Information

SPECIFICATIONS
Product Name: Diaphragm Pneumatic Control Valve With Positioner
Key Features: Pneumatic Control Valve With Positioner, Pressure Balanced, Cage-Guided
Size Range: 3/4 Inch - 16 Inch, DN20-DN400
Pressure rating: ANSI Class 125 LB, 150 LB, 300 LB, 600 LB, JIS 10K, 16K, 20K, 30K, 40K, PN16, PN40, PN64, PN100
Materials: ASTM A216 WCB, WC6, ASTM A352 LCB, ASTM A351 CF8, CF8M, CF3M, CF3
End connection:
Flanged End: FF(Flat Face), RF(Raised Face), RJ(Ring Joint), LG(Large Male-Female)
Welded End: SW(Socket Weld), BW(Butt Weld)
Threaded End: Rc
Ambient temperature: -20 to 70°C
Bonnet:
Plain bonnet (-17 to 230°C)
Extension bonnet Type1(-45 to -17°C and 230 to 566°C)
Valve action:
FO: Air to close(Direct action actuator is combined.)
FC: Air to open(Reverse action actuator is combined.)
Flow characteristics: Equal percentage, Linear
