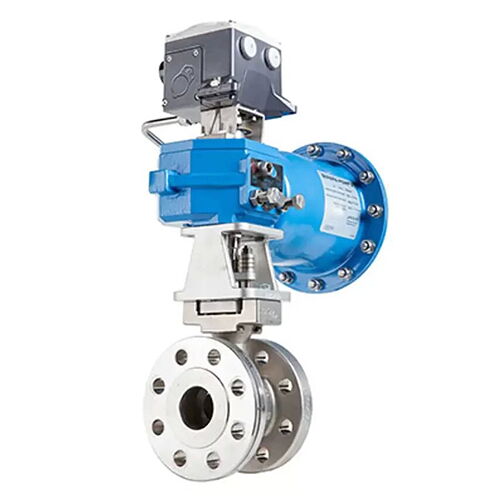

Eccentric Rotary Plug Control Valve, DN25-DN100, ASTM A216 WCB
Key Specifications / Features
hits: 1
The eccentric rotary control valves, constructed from ASTM A216 Grade WCB material, are available in sizes ranging from DN25 to DN100, with a pressure rating of 150 LB, PN25. They are complete with a pneumatic actuator, digital/smart positioner, and air filter regulator for precise flow control. The plug remains clear of the seat until it nears the cutoff position by a few degrees. In some cases, we refer to the plug as a cam. When it engages with the seat, the sealing surfaces dynamically align to achieve a tight cutoff.
Request a quote
Tags
Detail Information
Product Name: Eccentric Rotary Plug Control Valve
Body Material: ASTM A216 WCB, WCC, ASTM A351 CF8, CF8M, ASTM A352 LC3
Trim: ASTM A351 CF8, CF8M
Seat: 304, 316, 316+No.6, (316+PTFE)
Stem: 316(0Cr18Ni12Mo2Ti), 17-4PH
Cage: 9Cr18, 316+No.6
Size Range: 1 Inch - 4 Inch, DN25-DN100
Pressure Rating: Class150 LB, PN25
Inherently adjustable ratio: 100:1
Leakage level:
Metal Seat: ANSI VI
Soft Seat: ANSI VI
Pressure recovery coefficient FL:
Full Bore:
Flow to Open: 0.85
Flow to Close: 0.68
Reducing Bore:
Flow to Open: 0.88
Flow to Close: 0.70
Body Material: ASTM A216 WCB, WCC, ASTM A351 CF8, CF8M, ASTM A352 LC3
Trim: ASTM A351 CF8, CF8M
Seat: 304, 316, 316+No.6, (316+PTFE)
Stem: 316(0Cr18Ni12Mo2Ti), 17-4PH
Cage: 9Cr18, 316+No.6
Size Range: 1 Inch - 4 Inch, DN25-DN100
Pressure Rating: Class150 LB, PN25
Inherently adjustable ratio: 100:1
Leakage level:
Metal Seat: ANSI VI
Soft Seat: ANSI VI
Pressure recovery coefficient FL:
Full Bore:
Flow to Open: 0.85
Flow to Close: 0.68
Reducing Bore:
Flow to Open: 0.88
Flow to Close: 0.70
