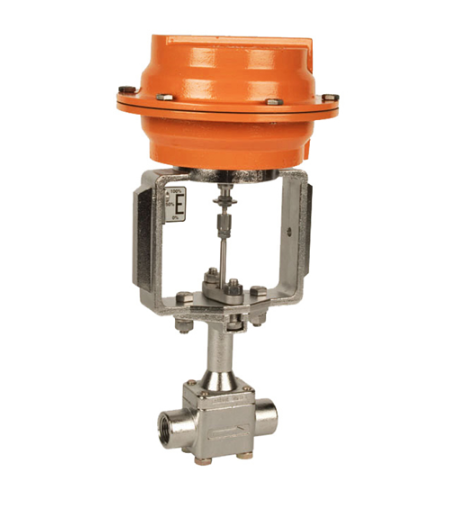

Fractional Flow Control Valve, 1/4 - 3/4 Inch, Carbon Steel
Key Specifications / Features
Hits: 0
Our comprehensive range of pneumatic and electrically actuated control valves ensures precise control for fractional flow applications. Designed to optimize performance, these valves are ideal for critical micro-flow tasks in various settings including pilot plants, test stands, R&D facilities, processing plants, and specialized operations such as dosing, injection, and venting. With their accuracy and reliability, they offer enhanced control over fluid processes, guaranteeing efficiency and quality across diverse industrial applications.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Fractional Flow Control Valves
Features: Rolling Diaphragm, Spring-loaded TFE/Chevron packing, Guided trim standard, Pneumatic Actuator
Size: 1/4 - 3/4 Inch, DN8 - DN20
Body Materials: Carbon Steel, Stainless Steel, Hastelloy C, Monel, Alloy 20
Cv (Kv): 0.00001 to 4.0 (0,000009 to 3,4)
Seat Type: Globe – Class IV or VI
Ranges: 3-15 or 6-30 psi; split ranges are available with optional positioner
End Connections: Threaded, Socket Weld, Integral Tube, Welded Flange
Product Name: Fractional Flow Control Valves
Features: Rolling Diaphragm, Spring-loaded TFE/Chevron packing, Guided trim standard, Pneumatic Actuator
Size: 1/4 - 3/4 Inch, DN8 - DN20
Body Materials: Carbon Steel, Stainless Steel, Hastelloy C, Monel, Alloy 20
Cv (Kv): 0.00001 to 4.0 (0,000009 to 3,4)
Seat Type: Globe – Class IV or VI
Ranges: 3-15 or 6-30 psi; split ranges are available with optional positioner
End Connections: Threaded, Socket Weld, Integral Tube, Welded Flange
