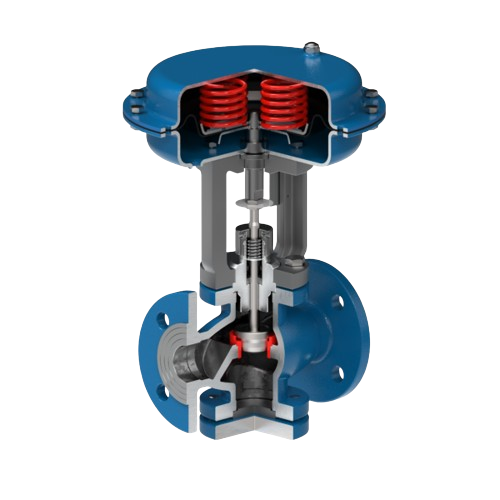

Penumatic Control Valve, Two-way, DN15-DN100, PN16-PN40
Key Specifications / Features
Hits: 0
Our Pneumatic Control Valve offers versatile fluid control capabilities, handling steam, overheated water, non-explosive gases, corrosive fluids, and more. This versatility makes it suitable for various sectors including textile dyeing and finishing, chemical processing, water treatment, food processing, and general industrial applications. Available in sizes ranging from DN15 to DN100 (1/2 inch to 4 inches) and with pressure ratings from PN16 to PN25 (Class 150 LB to 300 LB), it operates reliably in temperatures spanning from -20°C to +205°C. With linear and equipercentric flow characteristics, this valve ensures precise and efficient flow regulation across diverse industrial settings.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Penumatic Control Valve
Design: Single Seated Globe Valve
Body material: Ductile Iron GGG40, Carbon Steel GP240GH(1.0619), ASTM A216 WCB, Stainless Steel ASTM A351 CF8M
Plug and seat material: Stainless Steel AISI 316L, 17-4PH
Bonnet: Standard in ASTM A105, AISI 420, AISI 316
Sizes: DN15-DN100, 1/2 Inch - 4 Inch
Pressure Rating: PN16-PN25, Class 150 LB - 300 LB
Operating temperature range: -20°C to +205°C

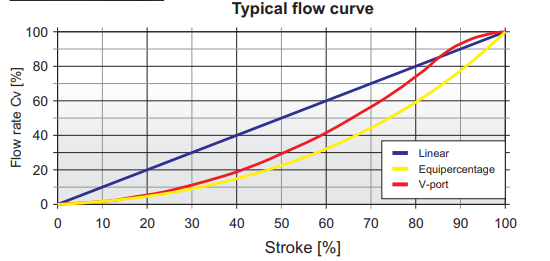

Flow characteristics: linear, equipercent
Flow coefficient Kvs: 0.09 – 256 [m3.h-1]
Leakage class (IEC 60534-4): Class IV, Class V, Class VI
End Connection: Flange
Servocontrol:
With pneumatic action (max 2,5 bar) direct and reverse
in stamped plate FE (epoxy varnish)
Size: S.200, S.275, S.340, S.430
Standard spring range: 3-15 psi, 6-18 psi, 6-30 psi
Current equipment: Travel indicator
Product Name: Penumatic Control Valve
Design: Single Seated Globe Valve
Body material: Ductile Iron GGG40, Carbon Steel GP240GH(1.0619), ASTM A216 WCB, Stainless Steel ASTM A351 CF8M
Plug and seat material: Stainless Steel AISI 316L, 17-4PH
Bonnet: Standard in ASTM A105, AISI 420, AISI 316
Sizes: DN15-DN100, 1/2 Inch - 4 Inch
Pressure Rating: PN16-PN25, Class 150 LB - 300 LB
Operating temperature range: -20°C to +205°C
Flow characteristics: linear, equipercent
Flow coefficient Kvs: 0.09 – 256 [m3.h-1]
Leakage class (IEC 60534-4): Class IV, Class V, Class VI
End Connection: Flange
Servocontrol:
With pneumatic action (max 2,5 bar) direct and reverse
in stamped plate FE (epoxy varnish)
Size: S.200, S.275, S.340, S.430
Standard spring range: 3-15 psi, 6-18 psi, 6-30 psi
Current equipment: Travel indicator

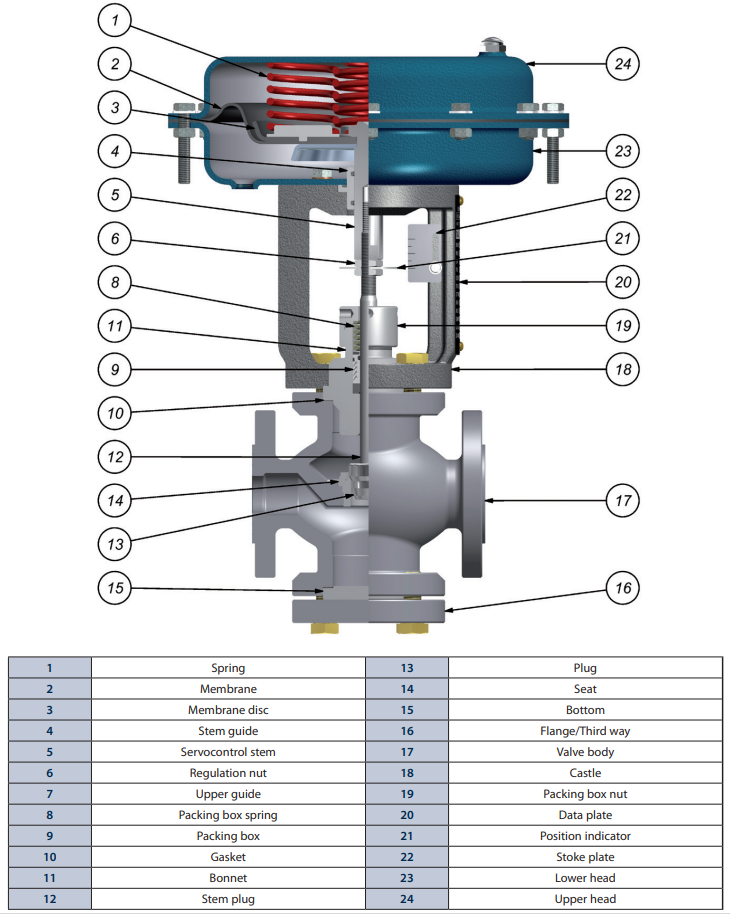

VALVE PARTS NOMENCLATURE
