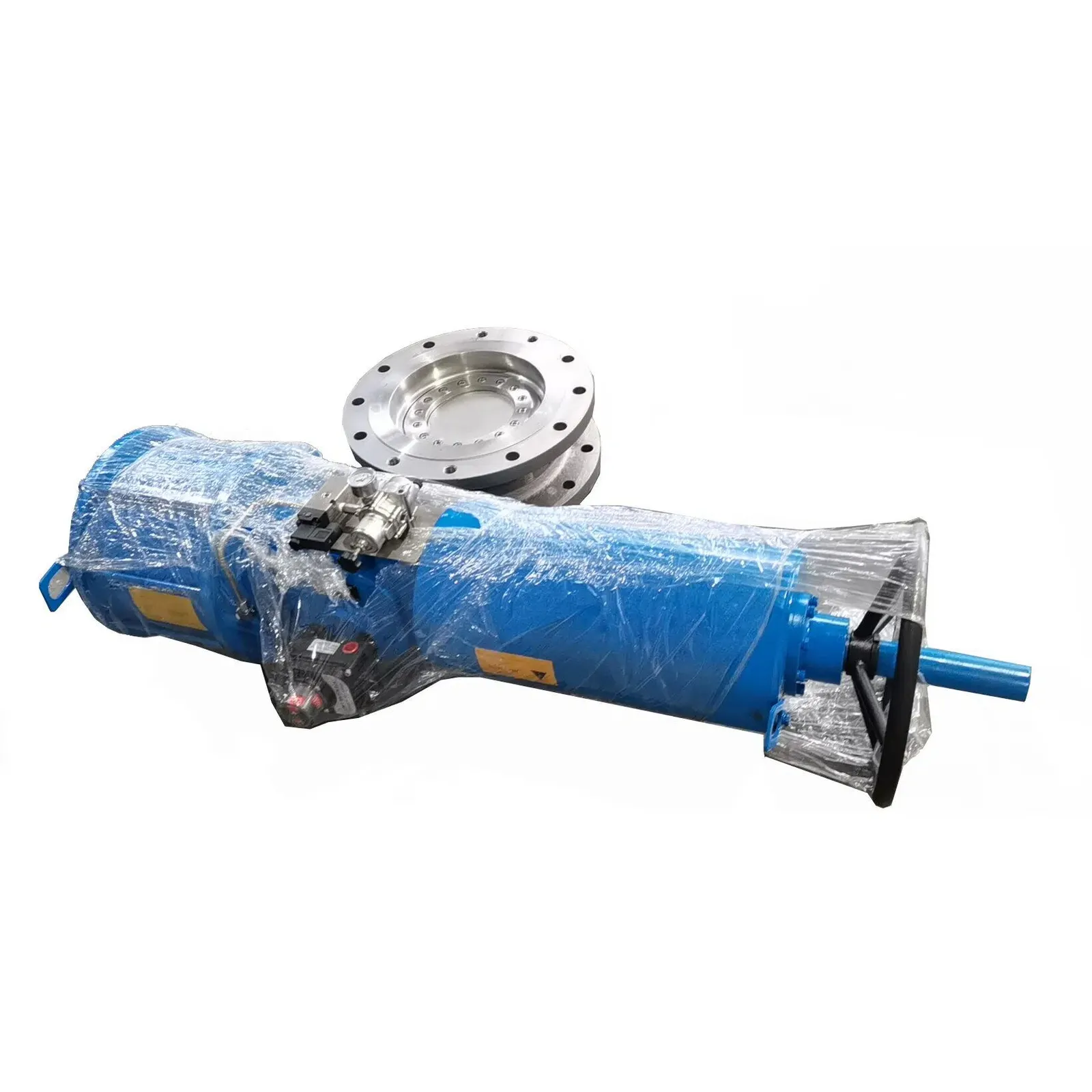

Triple Offset Butterfly Control Valves, 3-72 IN, ASME B16.34
Key Specifications / Features
Hits: 8
Introducing our Butterfly Control Valves, spanning sizes from 3 inches to 72 inches, ideal for diverse applications. Operating across an extensive temperature range from -196 °C to 550 °C (-320 °F to 1022 °F), they're built for versatility. With ANSI ratings of 150/300/600/900 LB, they ensure reliability under varying pressures. Adhering to ASME B16.34 standards for design and pressure requirements, they come in Wafer, Lug, and Flange body styles, meeting diverse installation needs. Engineered with precision, they feature ASME B16.34 body shell thickness and API 609/ISO 5752 face-to-face dimensions. Additionally, they boast fire safety certifications, complying with API 607 and ISO 10497 standards. Trust our Butterfly Control Valves for efficiency and safety.
Request a quote
Tags
Detail Information
Product Name: Butterfly Control Valve
Size: 3 - 72 Inch
Temperature Range: -196°C - 550 °C (320 °F - 1022 °F)
Pressure Rating: ANSI 150 LB, 300 LB, 600 LB, 900 LB
Design & Pressure: ASME B16.34
Body Style: Wafer type, Lug type, Flange type
Body Shell Thickness: ASME B16.34
Face to Face: API 609, ISO 5752
Fire Safe: API 607, ISO 10497
Size: 3 - 72 Inch
Temperature Range: -196°C - 550 °C (320 °F - 1022 °F)
Pressure Rating: ANSI 150 LB, 300 LB, 600 LB, 900 LB
Design & Pressure: ASME B16.34
Body Style: Wafer type, Lug type, Flange type
Body Shell Thickness: ASME B16.34
Face to Face: API 609, ISO 5752
Fire Safe: API 607, ISO 10497
