API 6D O-Type Ball Control Valve, DN15-DN600
Key Specifications / Features
Hits: 1
Introducing the API 6D Ball Control Valve, engineered to thrive in temperatures ranging from 46°C to 200°C. Crafted from a robust selection of materials including ASTM A216 WCB, WCC, A217 WC6, WC9, and ASTM A351 CF8, CF8M, CF3, CF3M. Available in a wide range of nominal diameters from DN15 to DN800, catering to diverse industrial needs. Its versatility extends to pressure ratings including ANSI Class 150 LB, 300 LB, 600 LB, and DIN PN16, PN25, PN40, PN63, PN100, ensuring reliable performance across various applications.
Request a quote
Tags
Detail Information
Product Name: API 6D Ball Control Valves
, O-Type
Operateing Temperature: 46°C - 200°C
Body Material: ASTM A216 WCB, ASTM A216 WCC, ASTM A217 WC6, ASTM A217 WC9, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3, ASTM A351 CF3M
Nominal diameter: DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350, DN400, DN450, DN500, DN600, DN700, DN800
Pressure rating: ANSI Class 150 LB, 300 LB, 600 LB, DIN PN16, PN25, PN40, PN63, PN100
Operateing Temperature: 46°C - 200°C
Body Material: ASTM A216 WCB, ASTM A216 WCC, ASTM A217 WC6, ASTM A217 WC9, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3, ASTM A351 CF3M
Nominal diameter: DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350, DN400, DN450, DN500, DN600, DN700, DN800
Pressure rating: ANSI Class 150 LB, 300 LB, 600 LB, DIN PN16, PN25, PN40, PN63, PN100

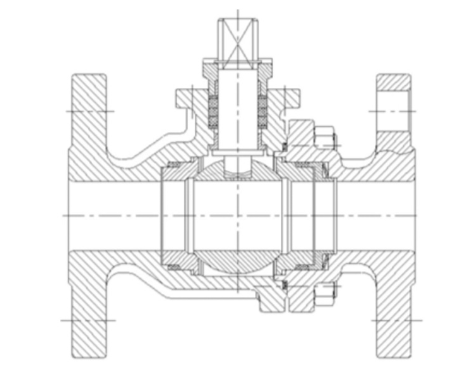

Drawing of O-type Ball Control Valve
