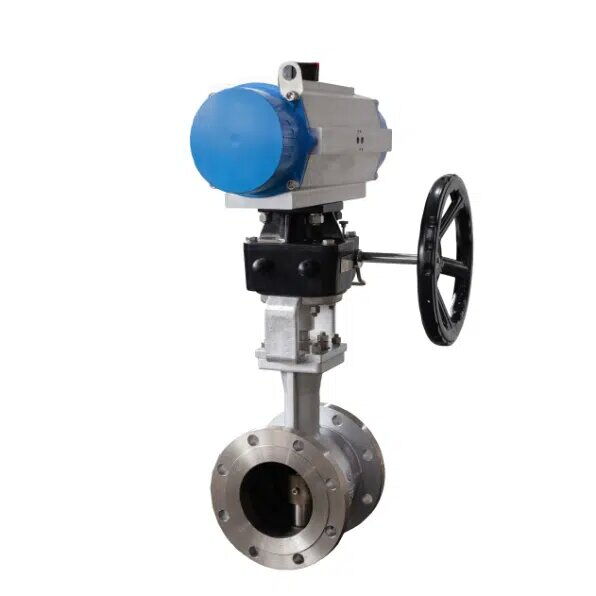

Double Eccentric Control Plug Valve, DN25-DN100, 1-4 Inch

Key Specifications / Features

The eccentric rotary plug control valve boasts a one-piece body design, adaptable for connection via flanged (ASME Class 150 LB / PN25) or wafer type (ASME Class 150 LB/ PN25) configurations. This valve type features a uniquely shaped plug that maintains a slight distance from the valve seat until near closure, enhancing dynamic alignment for optimal shut-off. Commonly referred to as eccentric plug valves, they incorporate a plug-shaped component following an eccentric path during rotation. This design ensures minimal contact between the plug and seat until just before closure, facilitating precise cutoff as sealing surfaces dynamically align. Widely employed in applications handling slurries, grit, or solids, these valves offer superior control accuracy and wide rangeability, complemented by pneumatic actuators, digital/smart positioners, and air filter regulators for meticulous flow control.

Request a quote

Detail Information

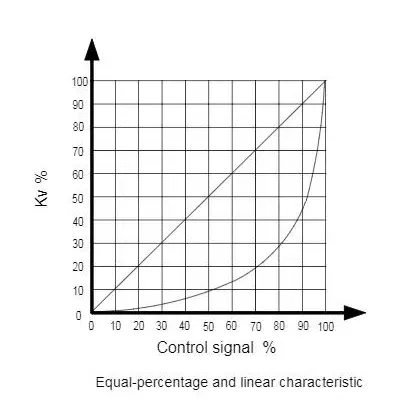

SPECIFICATIONS
Product Name: Double Eccentric Rotary Plug Valve
Size: DN25 to DN100, 1 Inch - 4 Inch
Pressure Rating: Class 150 LB, PN25
Body Materials: ASTM A216 WCB, WCC, ASTM A351 CF8, CF8M, ASTM A352 LC3
Trim Material: ASTM A351 CF8, CF8M
Initial deviation: ±3%
Rated travel deviation:50°±3°
Dead zone: 1%
Leakage level:
Metal Seat: ANSI VI
Soft Seat: ANSI VI
Pressure recovery coefficient FL:
Full Bore: Flow to Open: 0.85, Flow to Close: 0.68
Reducing Bore: Flow to Open: 0.88, Flow to Close: 0.70
