Electric Actuated Control Valve, DN65, PN25, EN-JS1049

Hits: 10

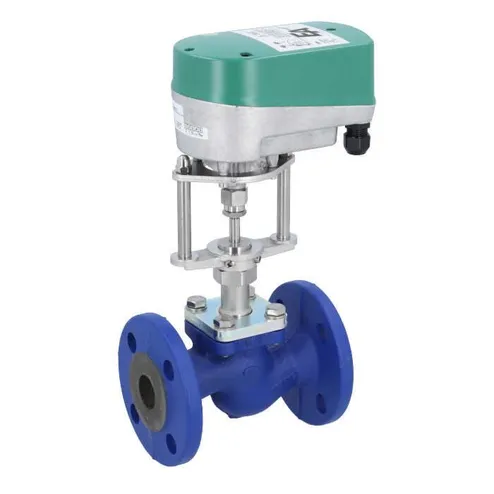

Introducing our Electric Actuated Control Valve, made from robust Ductile Cast Iron EN-JS1049, ensuring durability and reliability. Designed with a DN65 diameter and PN25 rating, it efficiently handles pressures up to 25 bar with a secure flanged connection. The valve features a resilient sealing system—gasket with Pure Graphite and Chrome-nickel Steel layer—ideal for hot water applications. Operating at 10 W / 18 VA at 50 Hz, it offers precise control with a positioning time of 2/4/6 seconds per mm stroke, supported by a robust 2500 N positioning force. The Nominal Stroke ranges from 0 to 49 mm, facilitating versatile flow management. With a wide Temperature Range spanning from -60°C to +450°C, our valve excels in maintaining performance across extreme conditions, making it a dependable choice for demanding industrial environments.
