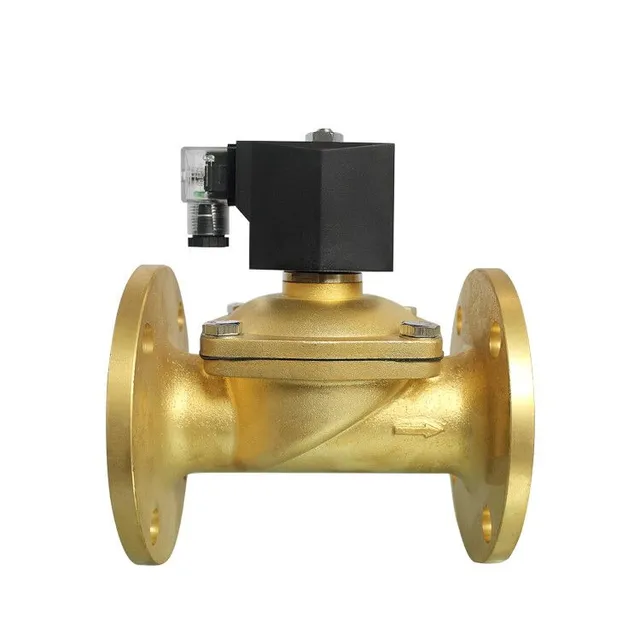

Direct Acting Diaphragm Solenoid Control Valve, 1/2-4 IN
Key Specifications / Features
Hits: 3
Introducing our Diaphragm Solenoid Control Valve Exporter: This versatile valve combines the efficiency of direct acting, two-way functionality with a choice of robust materials including brass and stainless steel. Available in sizes ranging from 1/2 inch to 4 inches (DN15 to DN100), it boasts a PN10 (Class 150 LB) rating and is equipped with flange ends for effortless installation. Designed to meet diverse industrial needs, it promises reliable performance, durability, and ease of maintenance, making it an ideal solution for a wide range of fluid control applications.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Direct Acting Diaphragm Solenoid Control Valves
Function: Normally Closed or Opened
Size Range: 1/2 Inch - 4 Inch, DN15-DN100
Pressure Rating: PN10, Class 150 LB
Body Material: Brass
Sealing Material: EPDM, VITON, NBR, PTFE
Port Connection: BSPP, BSPT, NPT, Flange
Temperature of Media:
NBR Seal: 0°C to 80°C
EPDM Seal: 5°C to 190°C
Suitable Media: Stem, Hot Water, Civil Gas, Air Oil.
Voltage: DC-12V, 24V, 36V, AC-24V, 120V, 240V/60Hz, 110V, 220V/50Hz
Product Name: Direct Acting Diaphragm Solenoid Control Valves
Function: Normally Closed or Opened
Size Range: 1/2 Inch - 4 Inch, DN15-DN100
Pressure Rating: PN10, Class 150 LB
Body Material: Brass
Sealing Material: EPDM, VITON, NBR, PTFE
Port Connection: BSPP, BSPT, NPT, Flange
Temperature of Media:
NBR Seal: 0°C to 80°C
EPDM Seal: 5°C to 190°C
Suitable Media: Stem, Hot Water, Civil Gas, Air Oil.
Voltage: DC-12V, 24V, 36V, AC-24V, 120V, 240V/60Hz, 110V, 220V/50Hz

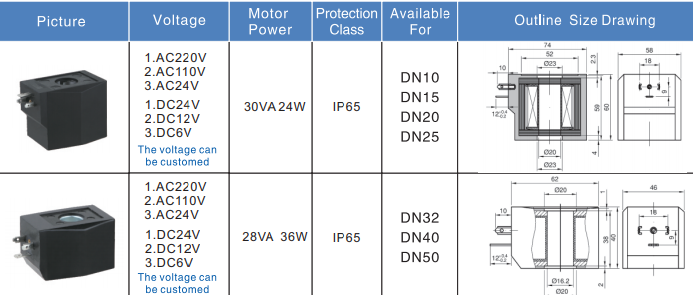

Parameters for Diaphragm Solenoid Control Valve
