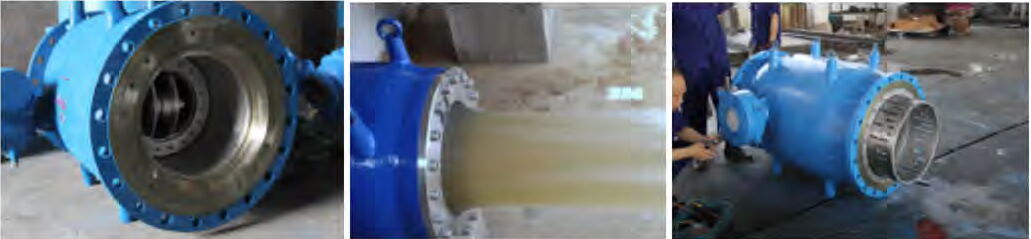

Electric Plunger Flow Control Valve, WCB, 8-64 Inch, 150 LB
Key Specifications / Features
hits: 0
Introducing our Electric Plunger Flow Control Valve, meticulously crafted to deliver exceptional performance and reliability. Operated electrically, it ensures precise flow control with the innovative plunger valve design. Engineered for complete closure, it effectively prevents leakage, enhancing system efficiency and safety. Constructed from high-quality materials including HT200, HT250, QT450-10, and ASTM A216 WCB, it offers robust durability and resistance to corrosion. Available in sizes ranging from DN200 to DN1600 and compatible with pressure ratings PN16 to PN25, it adapts seamlessly to various industrial applications. Trust in our valve for superior control, longevity, and seamless integration into your systems.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Electric Plunger Flow Control Valves
Key Feature: Electric, Plunger Valve, Fully Closed, Zero Leakage
Body Material: Gray Cast Iron, HT200, HT250, QT450-10, ASTM A216 WCB
Size Range: DN200-DN1600, 8 Inch - 64 Inch
Pressure Rating: PN16-PN25, Class 150 LB
Stem: 2Cr13, 1Cr18Ni9Ti
Features & Benefits:
1. Tailored for sewage clogged chute and fouling scenarios.
2. Automatically maintains conduit medium parameters at preset values with precise accuracy.
3. Resilient against cavitation effects.
4. Integrated electronic circuits ensure compact size, high reliability, sensitivity, and simple installation.
5. Completely sealed for zero leakage.
6. Manual control capability provided.
7. Flexible installation orientation: horizontal or vertical.
8. Various outlet options available, including vaned ring, slotted, perforated, and more, catering to diverse needs.
Product Name: Electric Plunger Flow Control Valves
Key Feature: Electric, Plunger Valve, Fully Closed, Zero Leakage
Body Material: Gray Cast Iron, HT200, HT250, QT450-10, ASTM A216 WCB
Size Range: DN200-DN1600, 8 Inch - 64 Inch
Pressure Rating: PN16-PN25, Class 150 LB
Stem: 2Cr13, 1Cr18Ni9Ti
Features & Benefits:
1. Tailored for sewage clogged chute and fouling scenarios.
2. Automatically maintains conduit medium parameters at preset values with precise accuracy.
3. Resilient against cavitation effects.
4. Integrated electronic circuits ensure compact size, high reliability, sensitivity, and simple installation.
5. Completely sealed for zero leakage.
6. Manual control capability provided.
7. Flexible installation orientation: horizontal or vertical.
8. Various outlet options available, including vaned ring, slotted, perforated, and more, catering to diverse needs.

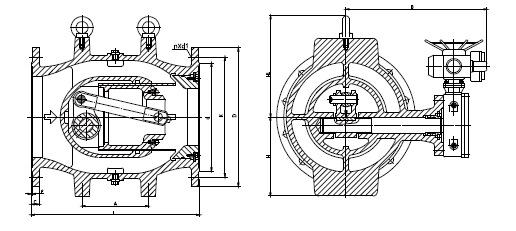

Drawing of Flow Control Valve
