Micro Flow Control Valve, 1/4-2 Inch, 150-600 LB, AISI 316L
Key Specifications / Features
Hits: 0
Introducing our Micro Flow Control Valve, designed for precision and reliability in various applications. This single-seated, on/off valve is available in sizes ranging from 1/4 inch to 2 inches (DN4-DN50) with pressure ratings from PN16 to PN100 (Class 150-600 LB). Constructed from high-quality Stainless Steel AISI 316L, it ensures durability and excellent corrosion resistance. Ideal for controlling micro flows with exceptional accuracy, our valve is perfect for demanding environments requiring precise fluid regulation.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Micro Flow Control Valve
Design Features: Single-seated, ON/Off Valve
Body Materials: Stainless Steel AISI 316L
Pressure Rating: PN16-PN100, Class 150 LB - 600 LB
Sizes: 1/4 Inch - 2 Inch, DN4-DN50
Working temperature range: -196°C to +350°C
Flow characteristics: linear, equipercent
Flow coefficient Kvs: 0,009 – 41 [m3.h-1]
Leakage class (IEC 60534-4): class IV, class V, class VI
Plug and seat material: stainless steel AISI 316L, duplex, monel
End Connection: Flanged, welded, threaded, clamp

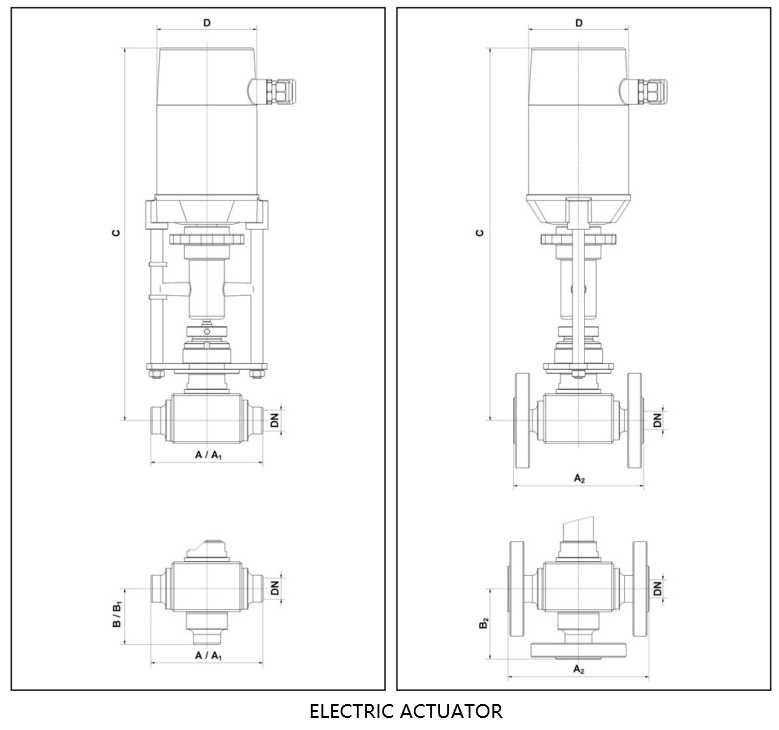

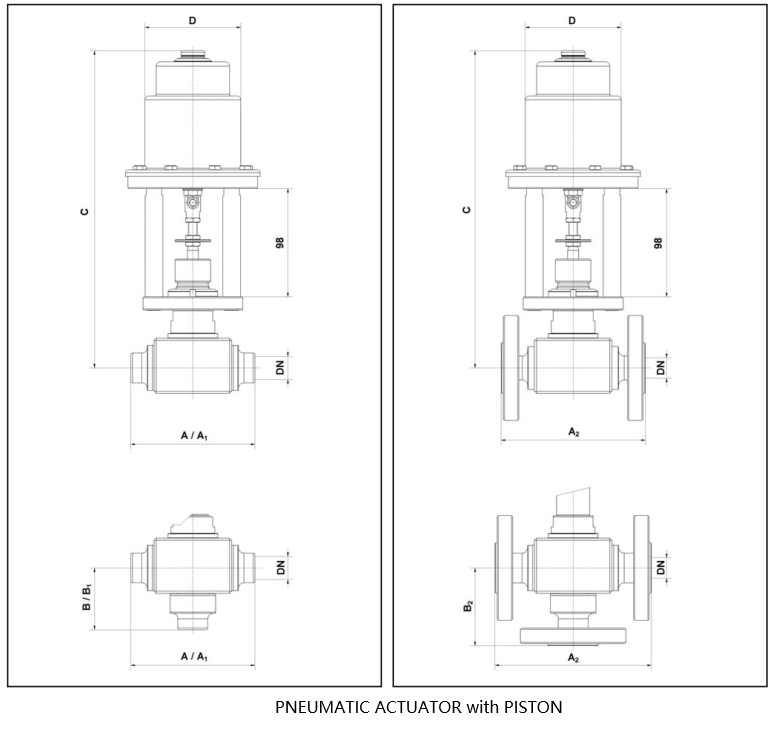

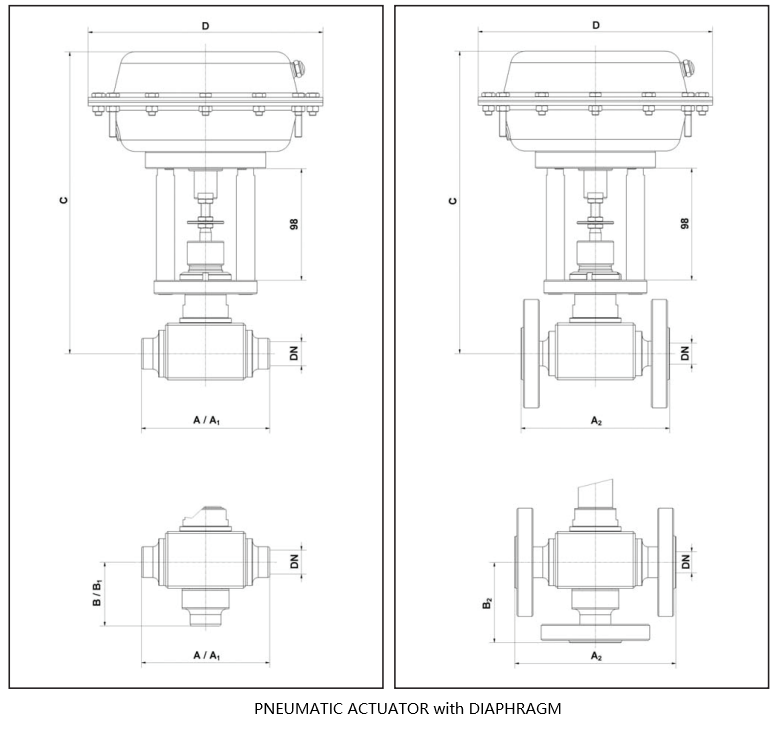

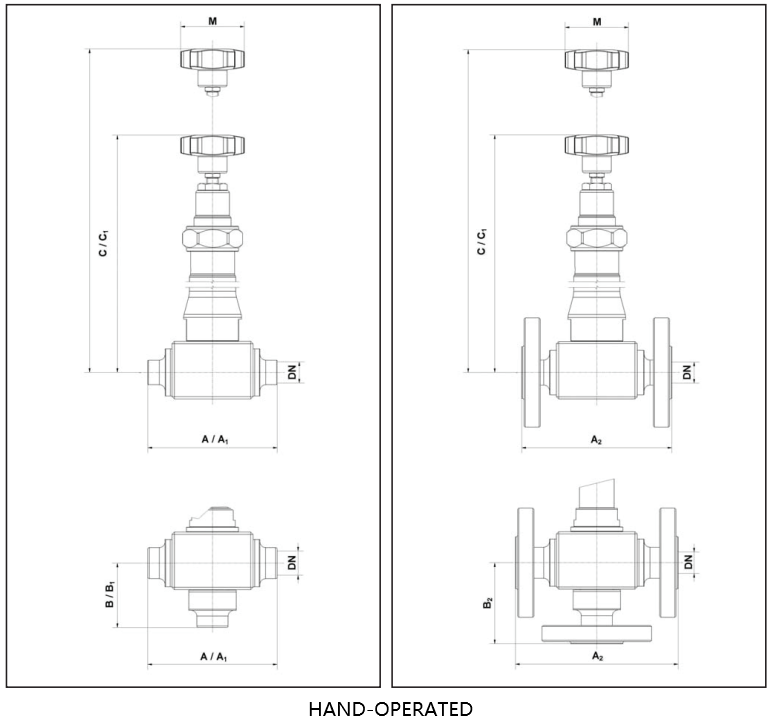

Type of actuator: pneumatic diaphragm (with handwheel), electric, hand-operated
Product Name: Micro Flow Control Valve
Design Features: Single-seated, ON/Off Valve
Body Materials: Stainless Steel AISI 316L
Pressure Rating: PN16-PN100, Class 150 LB - 600 LB
Sizes: 1/4 Inch - 2 Inch, DN4-DN50
Working temperature range: -196°C to +350°C
Flow characteristics: linear, equipercent
Flow coefficient Kvs: 0,009 – 41 [m3.h-1]
Leakage class (IEC 60534-4): class IV, class V, class VI
Plug and seat material: stainless steel AISI 316L, duplex, monel
End Connection: Flanged, welded, threaded, clamp
Type of actuator: pneumatic diaphragm (with handwheel), electric, hand-operated

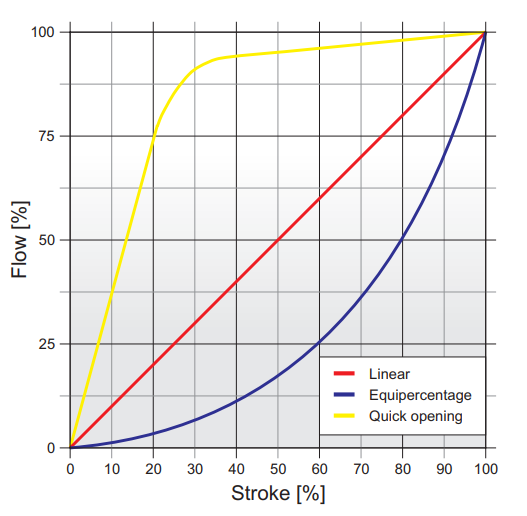

FLOW RATE CHARACTERISTIC
