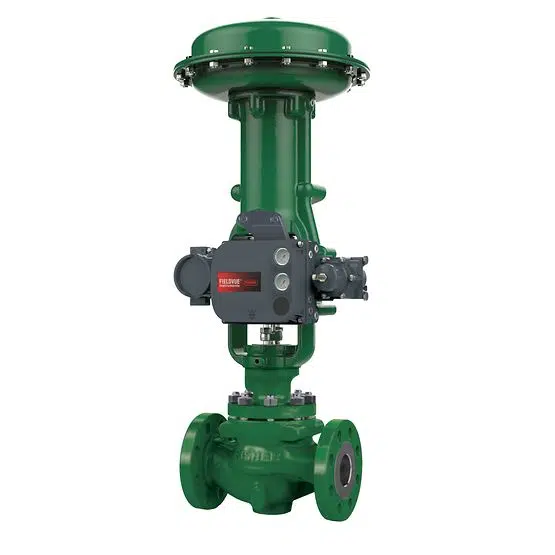

Single Seated Control Valve, Class 150-600 LB, 3/4-4 IN, WCC
Key Specifications / Features
Hits: 1
The Single Seated Control Valve offers versatility with pressure ratings ranging from Class 150 LB to 600 LB (PN20 to PN100) and is constructed from durable ASTM A216 WCC materials. With a wide temperature range of -198 to +593°C, it caters to various applications involving liquids and gases. Its straight-through valve body design facilitates easy trim replacement and features column-oriented unbalanced valve trim. Specifically designed for chemical or hydrocarbon treatment scenarios, it excels in controlling non-lubricated or viscous liquids. Metal-to-metal seals ensure reliable performance across large pressure differentials and temperature variations, while an option for metal-to-PTFE seals ensures tight shutoff where needed. The valve embodies efficiency and adaptability in demanding industrial environments.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Single Seated Control Valve
Sizes: 1/2 Inch, 3/4 Inch, 1 Inch, 1-1/2 Inch, 2 Inch, 3 Inch, 4 Inch
Pressure Rating: Class 150 LB - 600 LB, PN20-PN100
Body Materials: ASTM A216 WCC, ASTM A351 CF8M, ASTM A217 WC9, Cast Iron, Stainless Steel, Double-sided, Alloy
Temperature Range: -198 to +593°C
Flow characteristics: equal percentage, linearity, characterization, quick opening
End Connection: Flange, Butt Welding, RTJ, Thread, Socket Welding
Shut-off level: Class IV (FCI 70-2), Class V (FCI 70-2), Class VI (FCI 70-2)
Product Name: Single Seated Control Valve
Sizes: 1/2 Inch, 3/4 Inch, 1 Inch, 1-1/2 Inch, 2 Inch, 3 Inch, 4 Inch
Pressure Rating: Class 150 LB - 600 LB, PN20-PN100
Body Materials: ASTM A216 WCC, ASTM A351 CF8M, ASTM A217 WC9, Cast Iron, Stainless Steel, Double-sided, Alloy
Temperature Range: -198 to +593°C
Flow characteristics: equal percentage, linearity, characterization, quick opening
End Connection: Flange, Butt Welding, RTJ, Thread, Socket Welding
Shut-off level: Class IV (FCI 70-2), Class V (FCI 70-2), Class VI (FCI 70-2)
