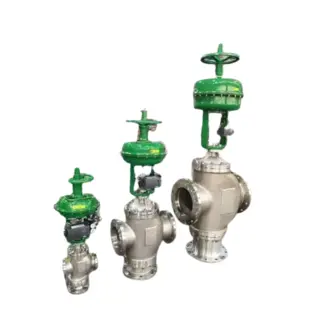

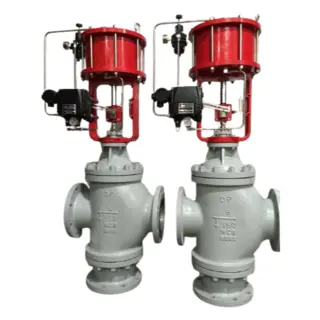

Pneumatic 3-Way Globe Control Valve, A216 WCC, 6 IN, 150 LB
Key Specifications / Features
hits: 1
We're a leading manufacturer of Pneumatic Globe Control Valves offering PN1.6, 3-way configurations, with ASTM A216 WCB, ASTM A216 WCC, ASTM A217 WC6 materials. Available in ANSI Class 125 LB, 150, 300, sizes ranging from 3/4 to 16 inches, and nominal sizes from 3/4 to 14 inches. Constructed with ASTM A216 WCB, ASTM A216 WCC, ASTM A217 WC6, ASTM A217 WC9, and ASTM A351 CF8 materials, with pressure ratings including ANSI Class 150 LB, 300 LB, 600 LB, PN1.6, 4.0, 6.4, and 10.0 Mpa. End connections feature flanged options like flat face, raised face, ring joint, large male, and female. Bonnet choices range from plain (-17 to 230°C) to extension (-60 to -29°C or over 230°C).
Request a quote
Tags
Detail Information
Product Name: Pneumatic 3-Way Globe Control Valves
Nominal size: 3/4 - 14 Inch
Body Material: ASTM A216 WCB, ASTM A216 WCC, ASTM A217 WC6, ASTM A217 WC9, ASTM A351 CF8
Pressure rating: ANSI Class 150 LB, 300 LB, 600 LB, PN16, PN40, PN64, PN100, 1.6, 4.0, 6.4, 10.0 Mpa
End connection:
Flanged End: FF(Flat Face), RF(Raised Face), RJ(Ring Joint), LMF(Large Male and Female)
Bonnet:
Plain bonnet (-17 to 230°C)
Extension bonnet(-60 to -29°C or over 230°C)
Nominal size: 3/4 - 14 Inch
Body Material: ASTM A216 WCB, ASTM A216 WCC, ASTM A217 WC6, ASTM A217 WC9, ASTM A351 CF8
Pressure rating: ANSI Class 150 LB, 300 LB, 600 LB, PN16, PN40, PN64, PN100, 1.6, 4.0, 6.4, 10.0 Mpa
End connection:
Flanged End: FF(Flat Face), RF(Raised Face), RJ(Ring Joint), LMF(Large Male and Female)
Bonnet:
Plain bonnet (-17 to 230°C)
Extension bonnet(-60 to -29°C or over 230°C)
