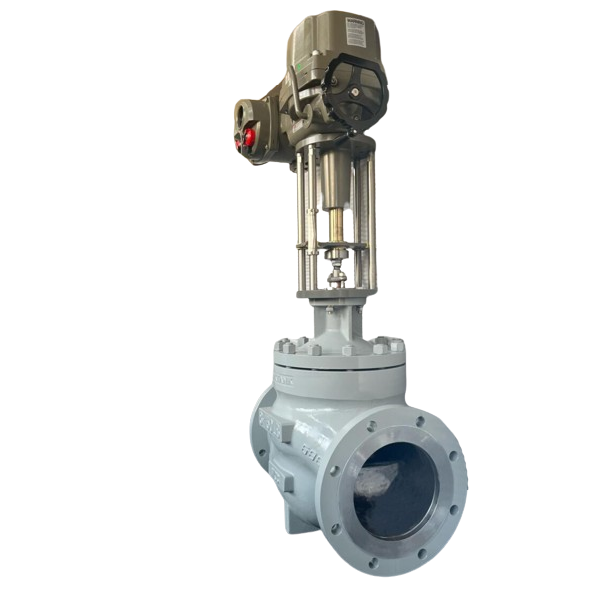

Electric Globe Control Valve, ASTM A216 WCC, 8 Inch, 150 LB
Key Specifications / Features
Hits: 1
Electric globe control valves, manufactured from ASTM A216 WCC and compliant with ANSI/ISA 75.01.01 & ASME B16.34 standards, play pivotal roles in industrial automation. Widely deployed in sectors such as oil, chemicals, power generation, and pharmaceuticals, these valves ensure precise process control. Our team of experts provides comprehensive guidance on selecting model parameters and operational conditions tailored to your requirements. Trust us to assist you in choosing and deploying the most suitable electric control valves to optimize your industrial processes.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Electric Globe Control Valve ,

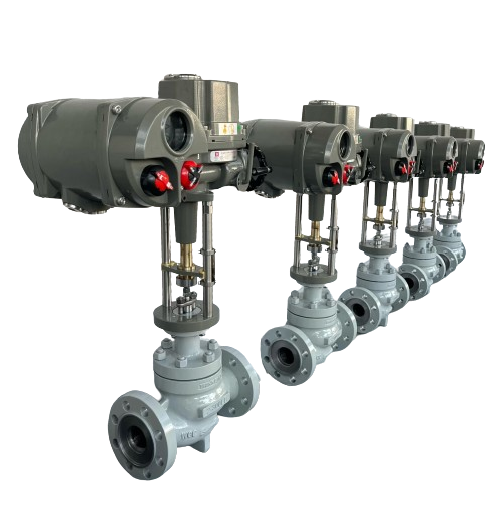

Key Features: Motorized Control Valve, ASME B16.34 Standard
Design Standard: ANSI/ISA 75.01.01 & ASME B16.34
Face to Face Standard: ASME B16.10
Flange Standard: ASME B16.5
Materials: ASTM A216 WCB, WC6, ASTM A351 CF8, CF8M, CF3M, CF3, ASTM A352 LCB
Pressure Rating: Class 150 LB - 2500 LB, PN16-PN260
Sizes: 1 Inch - 24 Inch, DN25-DN600
Temperature Range: -196 to +550°C
Electric Actuator Basics:
Power Supply: Options DC24V, AC220V, AC380V.
Input Control Signal: Typically 4-20MA or DC1-5V.
Feedback Control Signal: Usually DC4-20MA (load resistance under 500 ohms).

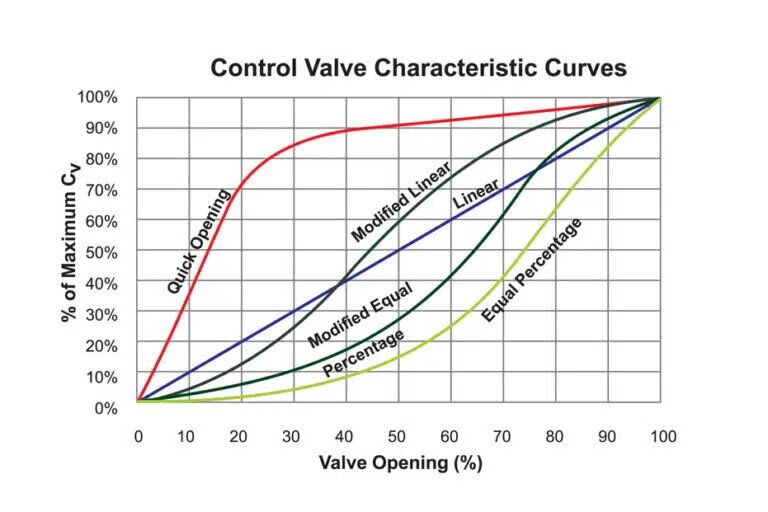

Flow Characteristics: linear, equal percentage, and parabolic options
Electric Actuator Basics:
Power Supply: Options DC24V, AC220V, AC380V.
Input Control Signal: Typically 4-20MA or DC1-5V.
Feedback Control Signal: Usually DC4-20MA (load resistance under 500 ohms).
Key Parameters:
1. Nominal Diameter: Determines the valve's flow capacity; choose based on requirements.
2. Flow Coefficient: Indicates flow capacity, correlating with the nominal diameter. Higher coefficients signify greater capacity.
3. Power Supply Voltage: Consider site power conditions; common options include AC220V, 380V, or DC24V.
4. Drive Mode: Options include mechanical electric, smart, or digital electric actuators, selected according to needs and site conditions.
5. Adjustable Range: Reflects the valve's control capability within its rated stroke; broader ranges imply enhanced control.
6. Protection Grade: Denotes dust and water resistance, crucial for suitability in harsh environments. Choose accordingly for optimal performance.
Product Name: Electric Globe Control Valve ,
Key Features: Motorized Control Valve, ASME B16.34 Standard
Design Standard: ANSI/ISA 75.01.01 & ASME B16.34
Face to Face Standard: ASME B16.10
Flange Standard: ASME B16.5
Materials: ASTM A216 WCB, WC6, ASTM A351 CF8, CF8M, CF3M, CF3, ASTM A352 LCB
Pressure Rating: Class 150 LB - 2500 LB, PN16-PN260
Sizes: 1 Inch - 24 Inch, DN25-DN600
Temperature Range: -196 to +550°C
Electric Actuator Basics:
Power Supply: Options DC24V, AC220V, AC380V.
Input Control Signal: Typically 4-20MA or DC1-5V.
Feedback Control Signal: Usually DC4-20MA (load resistance under 500 ohms).
Flow Characteristics: linear, equal percentage, and parabolic options
Electric Actuator Basics:
Power Supply: Options DC24V, AC220V, AC380V.
Input Control Signal: Typically 4-20MA or DC1-5V.
Feedback Control Signal: Usually DC4-20MA (load resistance under 500 ohms).
Key Parameters:
1. Nominal Diameter: Determines the valve's flow capacity; choose based on requirements.
2. Flow Coefficient: Indicates flow capacity, correlating with the nominal diameter. Higher coefficients signify greater capacity.
3. Power Supply Voltage: Consider site power conditions; common options include AC220V, 380V, or DC24V.
4. Drive Mode: Options include mechanical electric, smart, or digital electric actuators, selected according to needs and site conditions.
5. Adjustable Range: Reflects the valve's control capability within its rated stroke; broader ranges imply enhanced control.
6. Protection Grade: Denotes dust and water resistance, crucial for suitability in harsh environments. Choose accordingly for optimal performance.

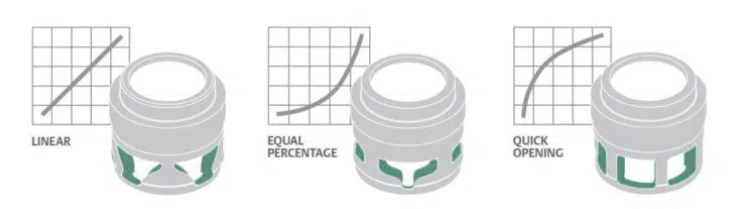

flow characteristics of control valve pressure
