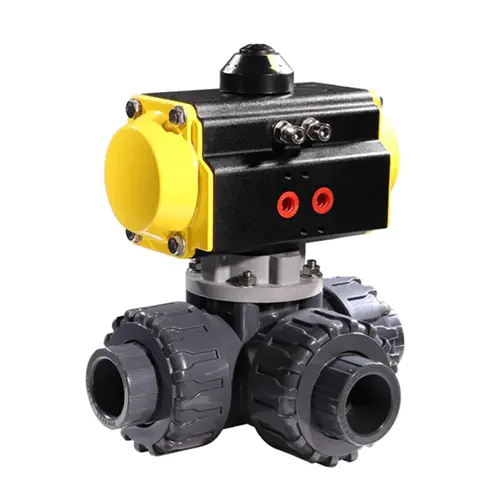

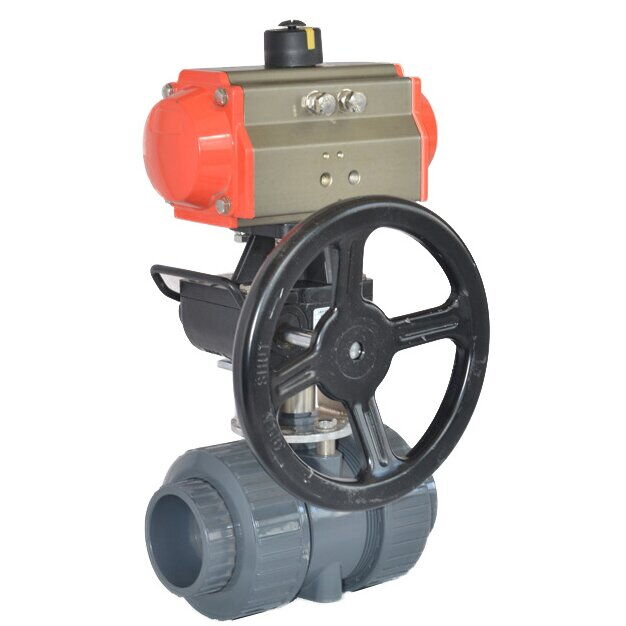

Pneumatic Ball Control Valve, Spring Return, DN15-DN50, PN16
Key Specifications / Features
Hits: 0
Our Pneumatic Ball Control Valve offers superior flow management with options for spring return and double-acting mechanisms. Designed with double union threads, it accommodates sizes DN15-DN50 (1/2-2 inches) and is rated PN16 and Class 150 LB. Available in durable PVC, CPVC, and UPVC materials, this valve ensures corrosion resistance and long-lasting performance. Ideal for various industrial applications, its reliable design provides precise control and easy maintenance, enhancing operational efficiency and system reliability.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Pneumatic BallControl Valves
Key Features: Spring Return, Double Acting, Double Union, 3 Way, Quarter-turn
Size Range: DN15-DN50, 1/2 Inch - 2 Inch
Pressure Rating: PN16, Class 150 LB
Material: PVC, CPVC, UPVC
Connection Type: Double Union
Suitable Medium: Water, Liquid,Oil, Air, Gas, etc
Valve Type: 2-Ways & 3-Ways Air Actuator Ball Valve (T Type and L Type)
Actuator Type: Spring Return(Single Acting) and Double Acting
Structure: T port, L port
Temperature Of Media: 14°F to 356°F (-10°C to 180°C )
Product Name: Pneumatic BallControl Valves
Key Features: Spring Return, Double Acting, Double Union, 3 Way, Quarter-turn
Size Range: DN15-DN50, 1/2 Inch - 2 Inch
Pressure Rating: PN16, Class 150 LB
Material: PVC, CPVC, UPVC
Connection Type: Double Union
Suitable Medium: Water, Liquid,Oil, Air, Gas, etc
Valve Type: 2-Ways & 3-Ways Air Actuator Ball Valve (T Type and L Type)
Actuator Type: Spring Return(Single Acting) and Double Acting
Structure: T port, L port
Temperature Of Media: 14°F to 356°F (-10°C to 180°C )

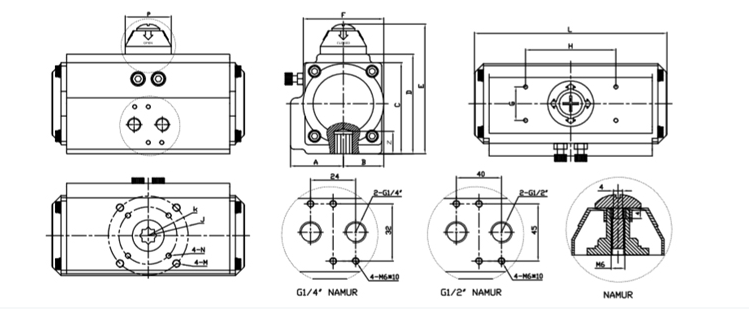

Drawing of Pneumatic Ball Control Valve

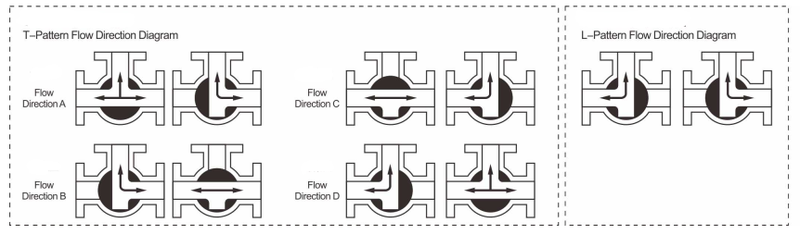

3 Way Ball Valve Flow Diagram
3 Way Ball Valve Flow Diagram
