1000 WOG Motorized Ball Control Valve, Stainless Steel, 1/4-4 IN
Key Specifications / Features
hits: 0

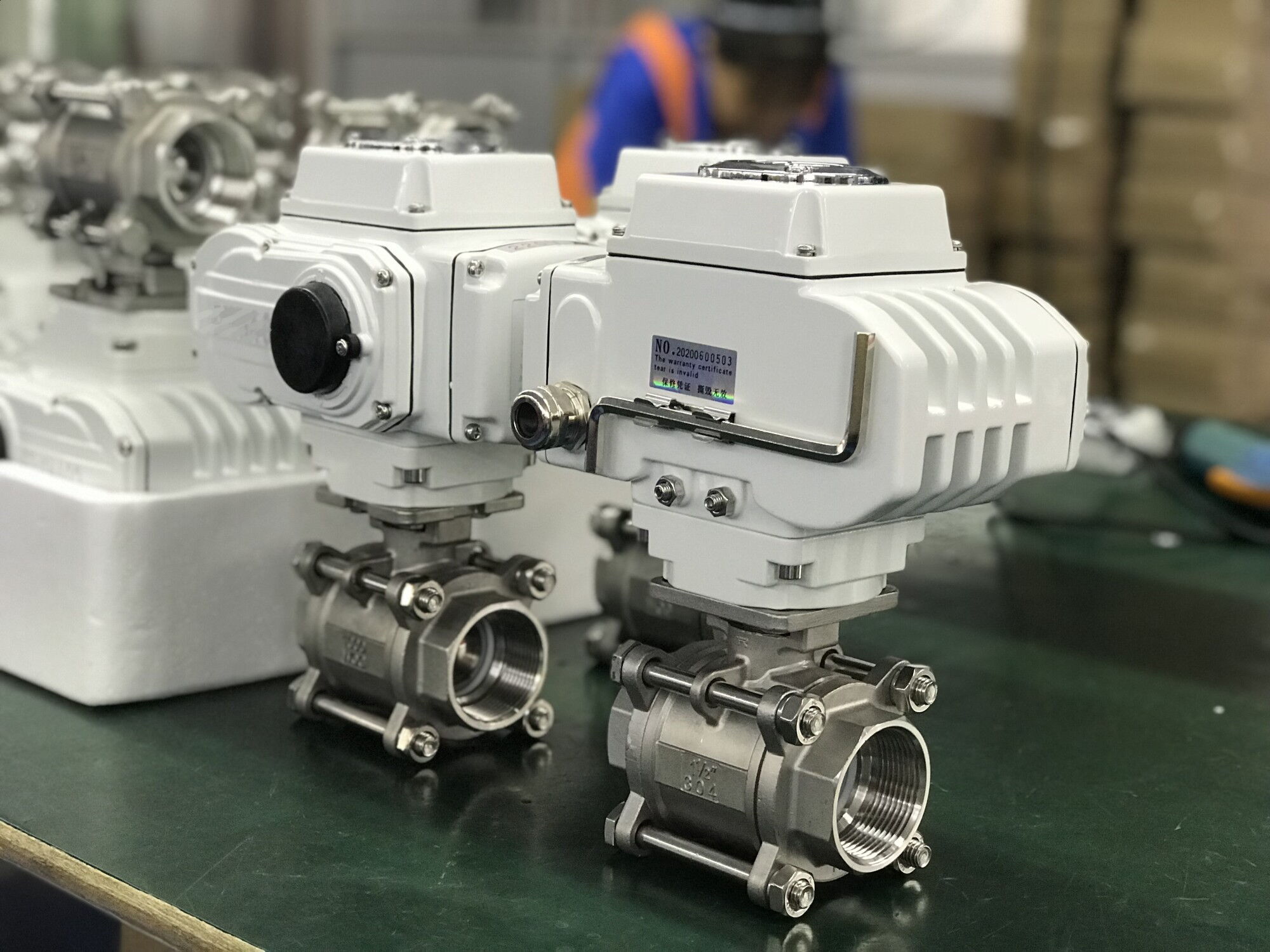

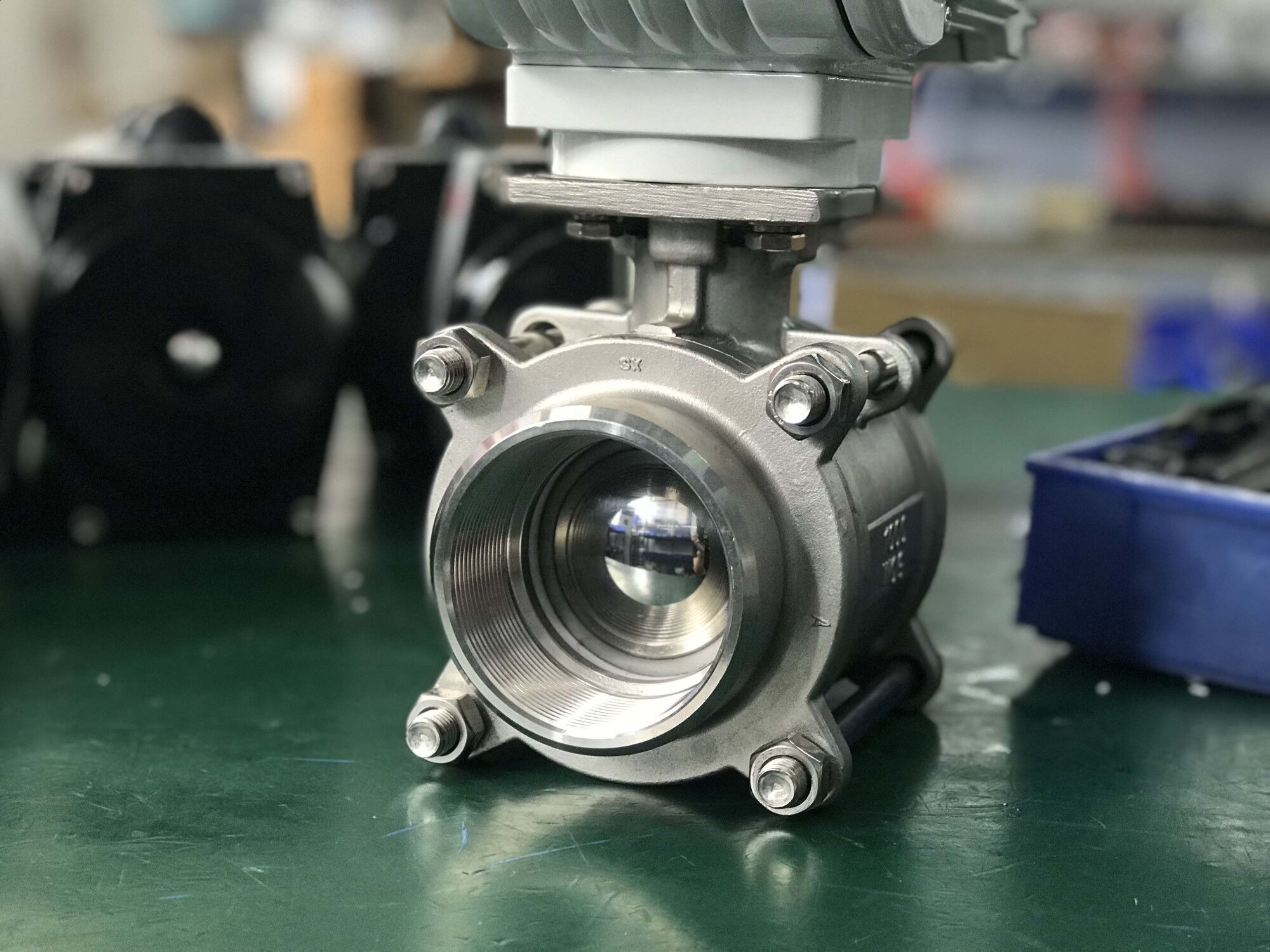

Showcasing our 1000 WOG Motorized Ball Control Valve, designed for superior fire protection and on/off control. Available in sizes 1/4-4 inches (DN8-DN100), this valve ensures versatility for a wide range of applications. Constructed from durable stainless steel, it offers excellent corrosion resistance and longevity. Rated for PN16 and Class 150 LB, it delivers reliable performance under various pressures. The BSP thread end design allows for easy installation and secure connections. Enhance safety and operational efficiency with our high-performance motorized ball valve, providing precise control and dependable service in critical fire protection systems.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: 1000 WOG Motorized Ball Control Valve
Key Features: Fire Protection, On/Off, Zero Leakage, Explosion-Proof, 2 Way
Size Range: 1/4 Inch - 4 Inch, DN8-DN200
Pressure Rating: PN16, Class 150 LB
Material: Stainless Steel
Valve Ball: Stainless Steel
Sealing Material: PTFE
Port Size: 2.5 Inch
Applicable Standard: GB
Leakage: Zero leakage, Return difference: ±2.5%
Regulation Type: Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V
Voltage Optional: AC110-240V 380V 50/60HZ: DC12V, DC24V, Special Voltage Can be Customized
Protection Class: IP65, Explosion Proof Construction Are Available: EX ll BT4
Temperature of Media: -10°C to 180°C
Actuator Type: On-Off Control
End Connection: BSP Thread
Product Name: 1000 WOG Motorized Ball Control Valve
Key Features: Fire Protection, On/Off, Zero Leakage, Explosion-Proof, 2 Way
Size Range: 1/4 Inch - 4 Inch, DN8-DN200
Pressure Rating: PN16, Class 150 LB
Material: Stainless Steel
Valve Ball: Stainless Steel
Sealing Material: PTFE
Port Size: 2.5 Inch
Applicable Standard: GB
Leakage: Zero leakage, Return difference: ±2.5%
Regulation Type: Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V
Voltage Optional: AC110-240V 380V 50/60HZ: DC12V, DC24V, Special Voltage Can be Customized
Protection Class: IP65, Explosion Proof Construction Are Available: EX ll BT4
Temperature of Media: -10°C to 180°C
Actuator Type: On-Off Control
End Connection: BSP Thread
Motorized Ball Control Valve
