Pneumatic Converging Diverging Control Valve, DN25-DN400
Key Specifications / Features
Hits: 0
Our Three-Way Converging/Diverging Control Valve features a cage-guided structure with a pressure unbalanced plug. It efficiently manages media flow by either converging two channels into one or diverging one channel into two. This valve also functions as a shut-off and opening mechanism for pipelines. The standard design includes an unbalanced double-seat trim structure, ensuring reliability and precision. Additionally, we offer specially designed cages with noise reduction and anti-cavitation features to suit various service conditions. Ideal for applications requiring precise flow control and versatility, this valve guarantees optimal performance and durability.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Pneumatic Converging Diverging Control Valve
Key Features: Double-Seat, Cage-guided, Three-way
Bonnet Type: Standard, Heat Dissipation, Cryogenic, Bellows
Flow Characteristic: Equal Percentage, Linear, Quick Open
Size Range: DN25-DN400, 1 - 16 Inch
Pressure Rating: PN16, PN40, PN63, Class 150 LB, Class 300 LB, Class 600 LB
Body Material: Carbon Steel, Cast Steel, Stainless Steel
Leakage Class: ASME B16.104 Ⅴ(standard type metal seat)
End Connection: Flange, Butt Welding
Working Temperature: -196°C to 550°C
Actuator Type: Pneumatic Diaphragm Actuator, Pneumatic Piston Actuator, Electric Actuator
Product Name: Pneumatic Converging Diverging Control Valve
Key Features: Double-Seat, Cage-guided, Three-way
Bonnet Type: Standard, Heat Dissipation, Cryogenic, Bellows
Flow Characteristic: Equal Percentage, Linear, Quick Open
Size Range: DN25-DN400, 1 - 16 Inch
Pressure Rating: PN16, PN40, PN63, Class 150 LB, Class 300 LB, Class 600 LB
Body Material: Carbon Steel, Cast Steel, Stainless Steel
Leakage Class: ASME B16.104 Ⅴ(standard type metal seat)
End Connection: Flange, Butt Welding
Working Temperature: -196°C to 550°C
Actuator Type: Pneumatic Diaphragm Actuator, Pneumatic Piston Actuator, Electric Actuator

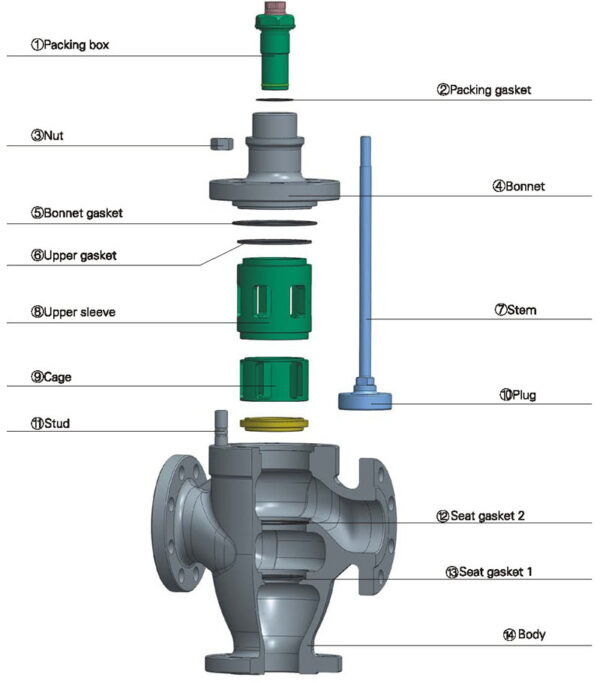

Drawing of Converging Diverging Control Valve
