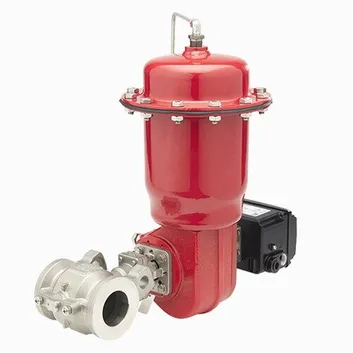

Rotary Globe Control Valves, 1-1/2-4 IN, 150-600 LB
Key Specifications / Features
Hits: 4
Available in sizes from 1-1/2 Inch to 4 Inch, this Rotary Globe Control Valve supports Class 150 LB to 600 LB (PN20-PN100) ratings. It features live loaded packing for enhanced performance and operates within a wide temperature range of -320°F to 750°F. Designed with a two-seat configuration for tight shutoff and extremely low torque, it is made from WCB, 316SS, 317SS, and other alloys. This valve is compliant with environmental and emission standards, suitable for both high and low temperature applications. It comes in both wafer and ANSI 150 versions, providing versatile solutions for various industrial needs.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Rotary Globe Control Valves
Key Features: Environmental and emission compliant, Rotary Control Valve, Double-Seat, Tight shutoff
SIZES: 1-1/2 Inch - 4 Inch, DN40-DN100
Pressure Rating: Class 150 LB - 600 LB, PN20-PN100
Materials: ASTM A216 WCB, ASTM A351 CF8, CF3, CF3M, CF8M, Alloy 20, Monel, Hastelloy C, LF2/LCB 17-4 stem
Port: Full, Reduced
Seal and Packing: Graphoil, TFM 1600, TFM4215
Temperature range: -320°F to 750°F
Application:
Oil and gas
Paper mill
Brine water
Dry chlorine
Product Name: Rotary Globe Control Valves
Key Features: Environmental and emission compliant, Rotary Control Valve, Double-Seat, Tight shutoff
SIZES: 1-1/2 Inch - 4 Inch, DN40-DN100
Pressure Rating: Class 150 LB - 600 LB, PN20-PN100
Materials: ASTM A216 WCB, ASTM A351 CF8, CF3, CF3M, CF8M, Alloy 20, Monel, Hastelloy C, LF2/LCB 17-4 stem
Port: Full, Reduced
Seal and Packing: Graphoil, TFM 1600, TFM4215
Temperature range: -320°F to 750°F
Application:
Oil and gas
Paper mill
Brine water
Dry chlorine
