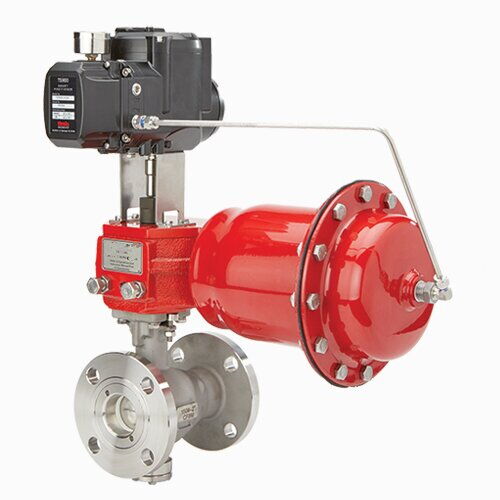

Segmented V-Port Control Valve, 1-1/2-30 IN, 150-900 LB
Key Specifications / Features
Hits: 0
This Segmented V-Port Control Valve is offered in flanged and flangeless versions, ensuring easy installation and versatility. Featuring live loaded packing and protected bearings at the top and beacon, it guarantees reliable performance. With extremely low actuator torque and reduced trim options, it provides efficient operation. Available in ASTM A216 WCB, 316SS, 317SS, and other alloys, it suits various applications. It boasts both soft and metal seated options, along with equal percentage flow characteristics. The fugitive emission bonnet enhances environmental compliance, while the single-seat design ensures precise control in diverse industrial settings.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Segmented V-Port Control Valves
Key Features: Spring Loaded, Removable Seat, Single seat
Size Range: 1-1/2 Inch - 30 Inch, DN40-DN750
Pressure Rating: Class 150 LB - 900 LB, PN20-PN150
Body Material: ASTM A216 WCB, SS 316, SS 316L, Alloys.
Trim Material: SS 316, Alloys
Steam Material: Metal Seat
Port: Full port, Reduced port
End Connection: Wafer
Temperature Range: -20°F to +1000°F
Applications:
Fibers
Chemical fluids with suspended solids
Dirty, clean, viscous and corrosive fluids
Gas
Steam
Pulp & paper
High temperature
Process with high flow capabilities with low pressure drop
Product Name: Segmented V-Port Control Valves
Key Features: Spring Loaded, Removable Seat, Single seat
Size Range: 1-1/2 Inch - 30 Inch, DN40-DN750
Pressure Rating: Class 150 LB - 900 LB, PN20-PN150
Body Material: ASTM A216 WCB, SS 316, SS 316L, Alloys.
Trim Material: SS 316, Alloys
Steam Material: Metal Seat
Port: Full port, Reduced port
End Connection: Wafer
Temperature Range: -20°F to +1000°F
Applications:
Fibers
Chemical fluids with suspended solids
Dirty, clean, viscous and corrosive fluids
Gas
Steam
Pulp & paper
High temperature
Process with high flow capabilities with low pressure drop
