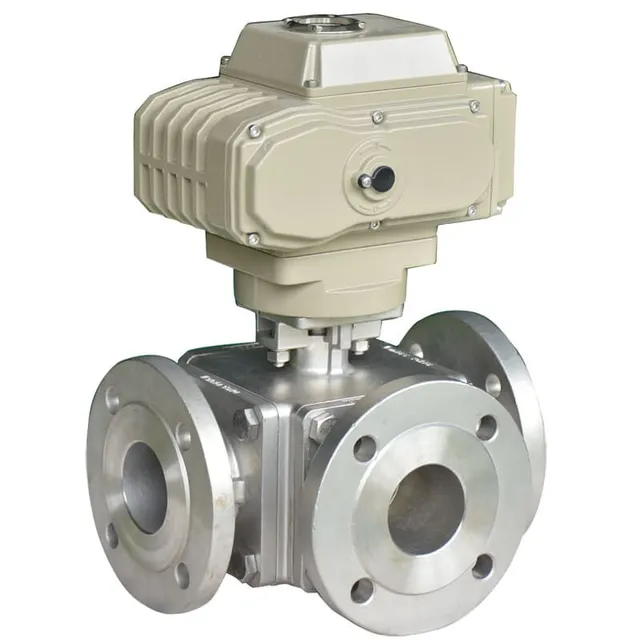

3-Way Electric Ball Control Valve, SS 316L, API 608, 150 LB
Key Specifications / Features
hits: 0
Our 3-way electric ball control valves stand out as top choices for industrial applications. Crafted with precision using the lost-wax method, they ensure exceptional performance and reliability. Featuring anti-static and fire-safe designs, these valves provide added safety and peace of mind. With reliable On/Off control, they facilitate seamless regulation of flow. Compliant with ASME B16.34 and API 608 standards, they meet rigorous industry requirements. Available in sizes ranging from 1/2 to 8 inches and compatible with PN16 to PN40 and Class 150 to 300 LB pressure ratings, our valves offer versatility and durability for various operating conditions.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: 3-Way Electric Ball Control Valve
Design Standard: GB/T 12237/1989, ASME B16.34, API 608, DIN 3357/1, 2, EN 12516-1
Key Features: Lost-wax, Anti-static, Fire Safe, On/Off
Size Range: 1/2 Inch - 8 Inch, DN15-DN200
Pressure Rating: Class 150 LB - 300 LB, PN10-PN40
Body Material: SS 316L, SS 316, SS 304, SS 304L, ASTM A216 WCB
Ball: SS 316L, SS 316, SS 304, SS 304L
Flow Direction: T type, L type
Seat: PTFE, TFM1600, PEEK
Control signal: 4-20 mADC, 0-5 VDC, 0-10 VDC
Power: 12 VDC, 24 VAC, 24 VDC, 220 VAC, 120 VAC, 380 VAC 50/60 Hz ±10%
End:
DIN PN16, PN25, PN40
ASME Class 150 LB, Class 300 LB
AS 4087 PN10, PN16
JIS 10K, 20K
Optional:
Explosion-proof actuator: Exd II CT5, Exd II BT5
Product Name: 3-Way Electric Ball Control Valve
Design Standard: GB/T 12237/1989, ASME B16.34, API 608, DIN 3357/1, 2, EN 12516-1
Key Features: Lost-wax, Anti-static, Fire Safe, On/Off
Size Range: 1/2 Inch - 8 Inch, DN15-DN200
Pressure Rating: Class 150 LB - 300 LB, PN10-PN40
Body Material: SS 316L, SS 316, SS 304, SS 304L, ASTM A216 WCB
Ball: SS 316L, SS 316, SS 304, SS 304L
Flow Direction: T type, L type
Seat: PTFE, TFM1600, PEEK
Control signal: 4-20 mADC, 0-5 VDC, 0-10 VDC
Power: 12 VDC, 24 VAC, 24 VDC, 220 VAC, 120 VAC, 380 VAC 50/60 Hz ±10%
End:
DIN PN16, PN25, PN40
ASME Class 150 LB, Class 300 LB
AS 4087 PN10, PN16
JIS 10K, 20K
Optional:
Explosion-proof actuator: Exd II CT5, Exd II BT5
Three Way L Type Flow Diagram
Three Way T Type Flow Diagram

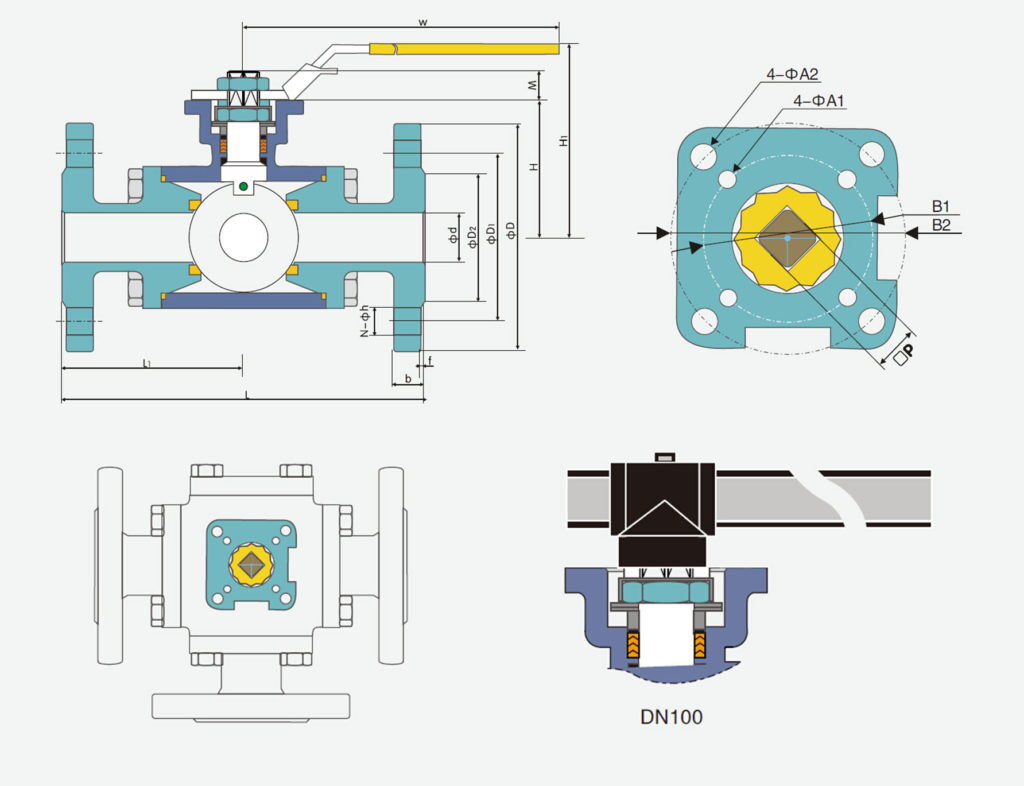

Drawing of 3-Way Electric Ball Control Valve
Three Way T Type Flow Diagram
Drawing of 3-Way Electric Ball Control Valve
