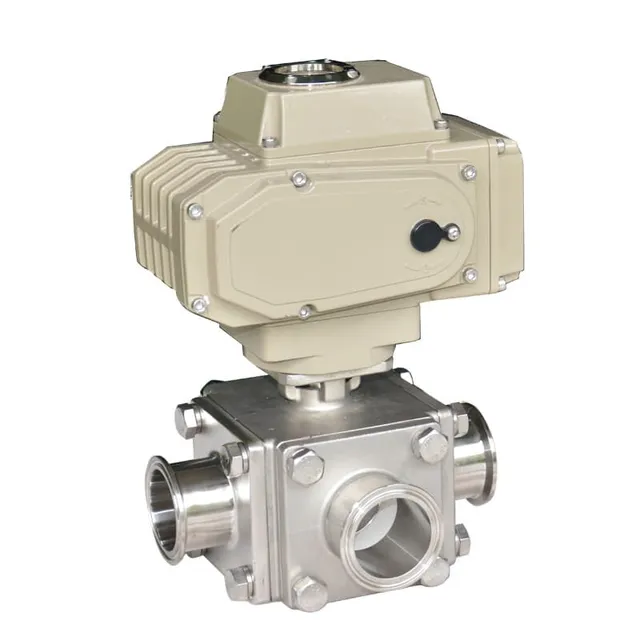

Motorized Ball Control Valve, 3-Way, 1/2-4 Inch, SS 304
Key Specifications / Features
hits: 0
As a premier manufacturer of motorized ball control valves, we prioritize functionality and efficiency. Our valves boast a sanitary design, ensuring optimal hygiene standards and coverage for critical applications. Equipped with a full port design and electric actuator, they deliver reliable On/Off control for seamless operation. Available in sizes ranging from 1/2 to 4 inches (DN15-DN100) and compatible with Class 150 LB and PN16 pressure ratings, our valves offer versatility for various installations. Crafted from durable SS 304 material, they guarantee longevity and corrosion resistance. Opt for our valves with the self-cleaning design option, ensuring continuous cleaning of the valve cavity by the media itself. With easy flushing and cleaning capabilities using water or steam, maintenance becomes hassle-free, ensuring optimal performance and reliability.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: 3-Way Motorized Ball Control Valves
Key Features: Sanitary Coverage, Full Port, Electric Actuator, On/Off
Body Material: SS 316L, SS 316, SS 304, SS 304L, ASTM A216 WCB
Ball: SS 316L, SS 316, SS 304, SS 304L
Seat: PTFE
Size Range: 1/2 Inch - 4 Inch, DN15-DN100
Pressure Rating: PN16, Class 150 LB
Control signal: 4-20 mADC, 0-5 VDC, 0-10 VDC
Power: 12 VDC, 24 VAC, 24 VDC, 220 VAC, 120 VAC, 380 VAC 50/60 Hz ±10%
Optional:
Explosion-proof actuator: Exd II CT5, Exd II BT5
Medium: Gas, Water and Oil, etc
Optional Self-Cleaning Design
1. Continuous Cleaning: The self-cleaning feature ensures that the valve cavity is constantly cleaned by the flowing media, maintaining optimal performance.
2. Automatic Removal: The media itself effectively removes any build-up within the valve cavity.
3. Simple Maintenance: The valve can be easily flushed and cleaned with water or steam, ensuring hassle-free upkeep and extended service life.
Product Name: 3-Way Motorized Ball Control Valves
Key Features: Sanitary Coverage, Full Port, Electric Actuator, On/Off
Body Material: SS 316L, SS 316, SS 304, SS 304L, ASTM A216 WCB
Ball: SS 316L, SS 316, SS 304, SS 304L
Seat: PTFE
Size Range: 1/2 Inch - 4 Inch, DN15-DN100
Pressure Rating: PN16, Class 150 LB
Control signal: 4-20 mADC, 0-5 VDC, 0-10 VDC
Power: 12 VDC, 24 VAC, 24 VDC, 220 VAC, 120 VAC, 380 VAC 50/60 Hz ±10%
Optional:
Explosion-proof actuator: Exd II CT5, Exd II BT5
Medium: Gas, Water and Oil, etc
Optional Self-Cleaning Design
1. Continuous Cleaning: The self-cleaning feature ensures that the valve cavity is constantly cleaned by the flowing media, maintaining optimal performance.
2. Automatic Removal: The media itself effectively removes any build-up within the valve cavity.
3. Simple Maintenance: The valve can be easily flushed and cleaned with water or steam, ensuring hassle-free upkeep and extended service life.
