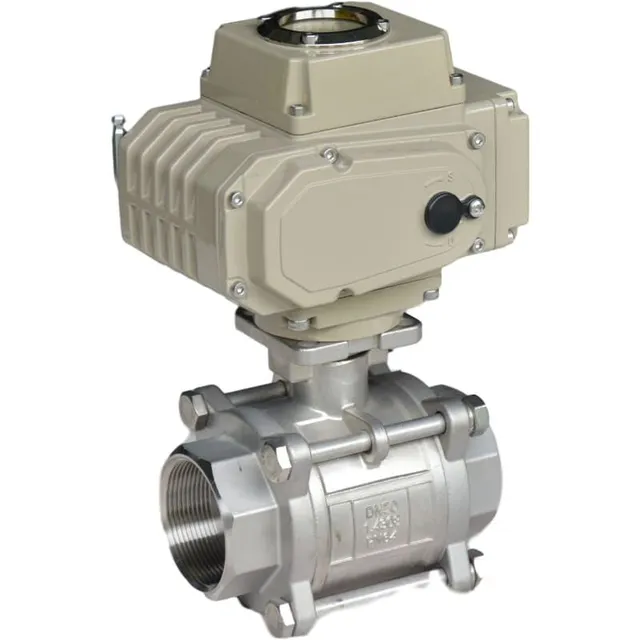

Electric Ball Control Valve, 3PC, ASME B16.35, 1.4306, DN50

Key Specifications / Features

As a premier supplier of 3PC electric ball control valves, we offer a comprehensive range of benefits. Our valves feature a full port design, ensuring minimal flow restriction and improved efficiency. With options for butt welding and threading, they provide versatile installation choices to suit various applications. Crafted using the lost-wax method and constructed from high-quality SS 316L material, they boast durability and corrosion resistance. Compliant with ASME B16.35 and API 608 standards, our valves meet stringent industry requirements for performance and reliability. Available in sizes from 1/4 to 4 inches (DN50) and boasting a robust PN64 pressure rating, they ensure precise control and safety in demanding environments.

Request a quote

Detail Information

SPECIFICATIONS
Product Name: 3PC Electric Ball Control Valve
Design Standard: ASME B16.35, API 608
Pipe Thread: ASME B1.20.1, BS21, DIN 299/259, ISO 7/1, ISO 228/1, JIS B 0203
Inspection & Testing: API 598 EN 12266

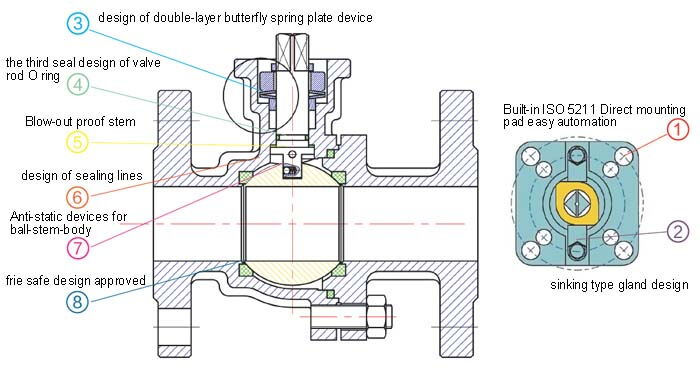

Key Features: Full Port, Butt Welding, Fire Safe, Lost-wax
Body Material: 1.4306 Stainless Steel, SS 316L, SS 316, SS 304, SS 304L, ASTM A216 WCB
Ball: SS 316L, SS 316, SS 304, SS 304L
Seat: PTFE, TFM1600, PEEK
Size Range: 1/4 Inch - 4 Inch, DN6-DN100
Pressure Rating: PN16-PN64, Class 150 LB - 900 LB
Control signal: 4-20 mADC, 0-5 VDC, 0-10 VDC
Power: 12 VDC, 24 VAC, 24 VDC, 220 VAC, 120 VAC, 380 VAC 50/60 Hz ±10%
Optional:
Explosion-proof actuator: Exd II CT5, Exd II BT5
End Connection: Thread
