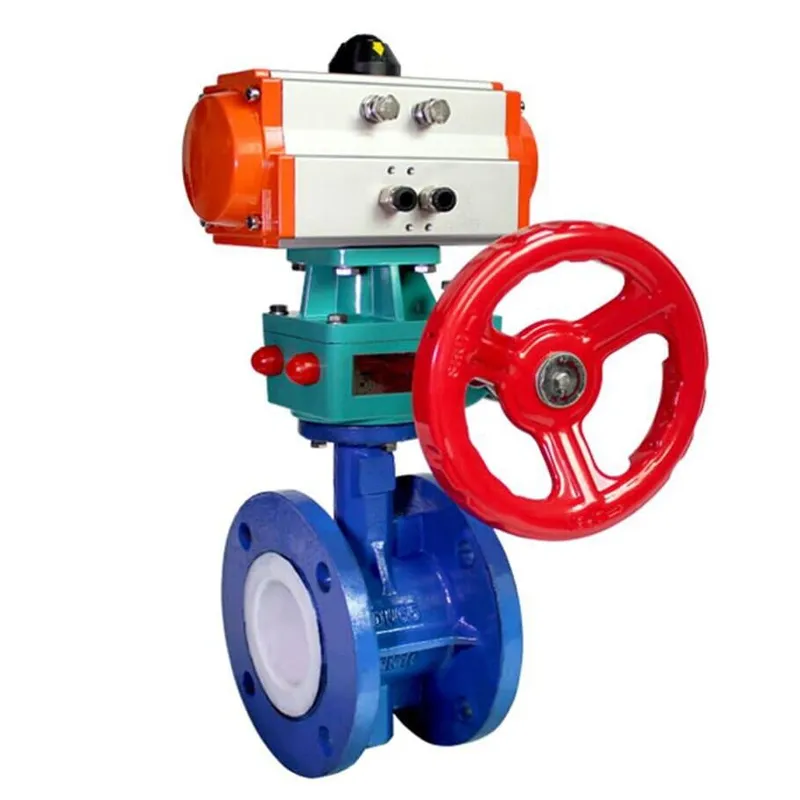

Air Actuated Butterfly Control Valve, 2-16 Inch, Cast Iron
Key Specifications / Features
Hits: 2
Introducing our Air Actuated Butterfly Control Valve, manufactured in China for superior performance and reliability. Featuring a soft seat and pneumatic operation, it is available in sizes from 2 to 16 inches, accommodating pressure ratings from PN16 to PN64 and Class 150 LB to 400 LB. Made from durable cast iron, it offers both wafer and flange ends for versatile installation. This valve excels in applications requiring reliable sealing and precise regulation. Its split-type body design and fluoro rubber-sealed valve shaft ensure a compact, aesthetically pleasing, and high-performing product. Ideal for transporting liquids and gases, including corrosive media, it is easy to maintain without pipeline removal. Perfect for industrial pipelines handling sulfuric acid, hydrofluoric acid, phosphorus acid, chlorine, strong alkali, and other corrosive substances.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Pneumatic Butterfly Control Valves
Size Range: 2 Inch - 16 Inch, DN50-DN400
Pressure Rating: PN16-PN64, Class 150 LB - 400 LB
Material: Cast Iron, Stainless Steel
Stem Material: Stainless Steel
Applicable Media: Water, Oil, Gas, Liquid, Steam, Powder, Anti-corrosive Base.
Structure: Midline Structure, A-type
Sealing Material: PTFE, PPL
Product Name: Pneumatic Butterfly Control Valves
Size Range: 2 Inch - 16 Inch, DN50-DN400
Pressure Rating: PN16-PN64, Class 150 LB - 400 LB
Material: Cast Iron, Stainless Steel
Stem Material: Stainless Steel
Applicable Media: Water, Oil, Gas, Liquid, Steam, Powder, Anti-corrosive Base.
Structure: Midline Structure, A-type
Sealing Material: PTFE, PPL
Drawing of Pneumatic Butterfly Control Valve
