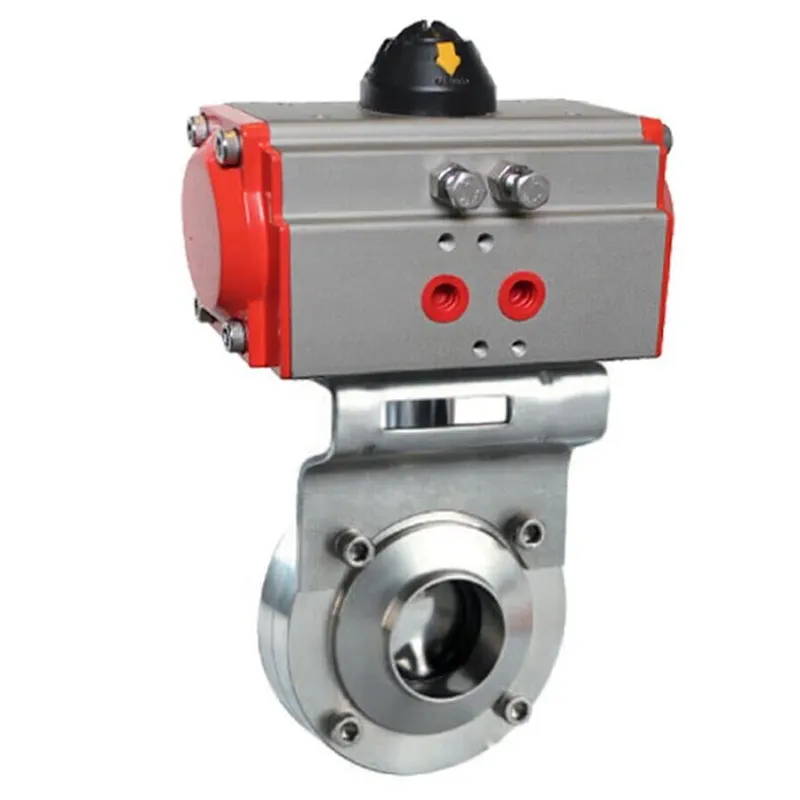

Sanitary Pneumatic Butterfly Valve, DN15-DN100, PN10-PN16
Key Specifications / Features
Hits: 0
Welcome to our Sanitary Pneumatic Butterfly Valve, meticulously crafted for food-grade applications, ensuring safety and compliance. Featuring a quarter-turn operation with spring return, it guarantees quick and precise control. Crafted from high-quality SS 316 stainless steel, it offers exceptional durability and corrosion resistance. Available in sizes ranging from 1/2 to 4 inches (DN15-DN100), it accommodates various piping systems. With pressure ratings from PN10 to PN16 and Class 150 LB, it provides versatility and reliability. Equipped with flanged ends, installation and maintenance are simplified. Choose our valve for its sanitary design, robust construction, and reliable performance in food processing environments.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Sanitary Pneumatic Butterfly Control Valve
Key Features: Food Grade, Quarter-turn, Spring Return, Long Service Life, Eco-Friendly, Easy Installation, etc.
Size Range: 1/2 Inch - 4 Inch, DN15-DN100
Pressure Rating: PN10-PN16, Class 150 LB
Material: SS 304, SS 316
Rotation: Quarter-turn
Applicable Standard: GB, ANSI, JIS, DIN
End Connection: Flange
Suitable Medium: Water, Oil, Air, Gas, etc.
Product Name: Sanitary Pneumatic Butterfly Control Valve
Key Features: Food Grade, Quarter-turn, Spring Return, Long Service Life, Eco-Friendly, Easy Installation, etc.
Size Range: 1/2 Inch - 4 Inch, DN15-DN100
Pressure Rating: PN10-PN16, Class 150 LB
Material: SS 304, SS 316
Rotation: Quarter-turn
Applicable Standard: GB, ANSI, JIS, DIN
End Connection: Flange
Suitable Medium: Water, Oil, Air, Gas, etc.

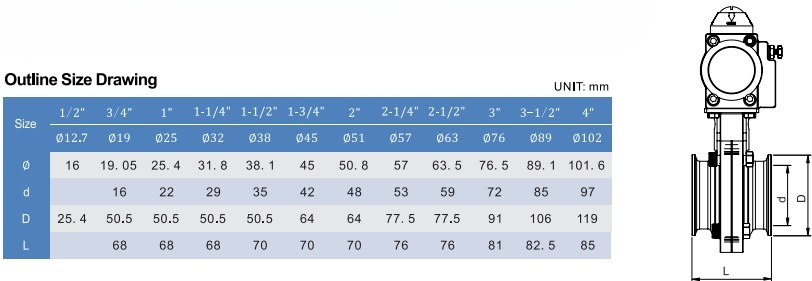

Dimension of Sanitary Pneumatic Butterfly Valve
