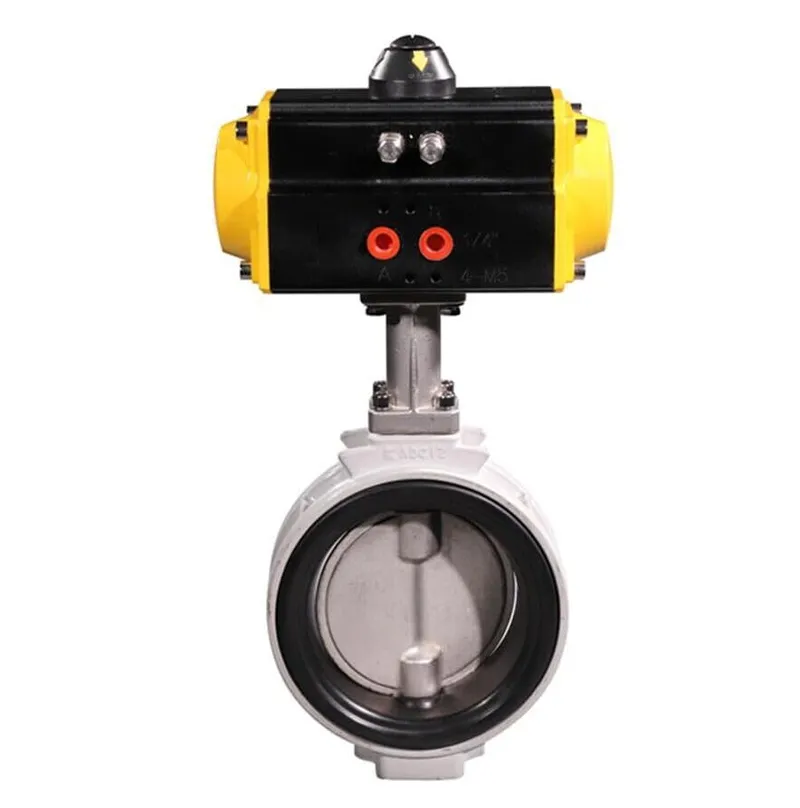

Air Operated Butterfly Control Valve, DN40-DN200, 150 LB
Key Specifications / Features
Hits: 1
Introducing our Air Operated Butterfly Control Valve, designed for efficiency and durability. Constructed from lightweight aluminum alloy, this pneumatic valve is available in sizes from 1-1/2 to 8 inches (DN40-DN200) with pressure ratings from PN16 to PN64. Featuring both wafer and flange ends, it ensures easy installation and maintenance. Its compact structure offers long service life and excellent sealing performance. Equipped with auto-reset thermostatic protection, adjustable open/close limit switches, and safety mechanical limit switches, it guarantees stable performance. Widely used for both on-off and regulating services across various industries, it can be fitted with positioners, limit switches, hand wheels, and solenoid valves for enhanced functionality.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Air Operated Butterfly Control Valve
Size Range: 1-1/2 Inch - 8 Inch, DN40-DN200
Pressure Rating: PN16-PN64, Class 150 LB - 400 LB
Body Material: Aluminum Alloy
Sealing Material: PTFE, PPL, NBR
Applicable Media: Water, Oil, Gas, Liquid, Steam, Powder, Anti-corrosive Base.
End Connection: Wafer, Flange
Structure: Midline Structure
Product Name: Air Operated Butterfly Control Valve
Size Range: 1-1/2 Inch - 8 Inch, DN40-DN200
Pressure Rating: PN16-PN64, Class 150 LB - 400 LB
Body Material: Aluminum Alloy
Sealing Material: PTFE, PPL, NBR
Applicable Media: Water, Oil, Gas, Liquid, Steam, Powder, Anti-corrosive Base.
End Connection: Wafer, Flange
Structure: Midline Structure

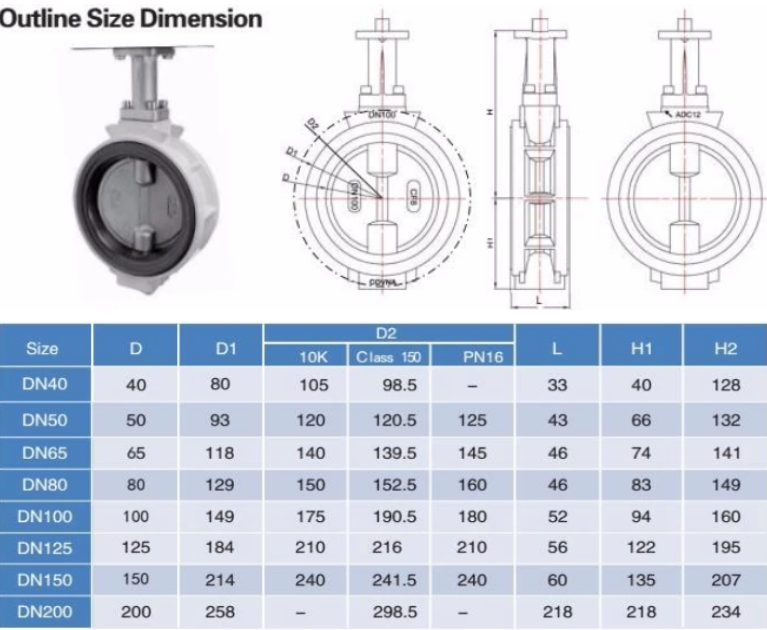

Dimension of Pneumatic Butterfly Control Valve
