Bellows Seal Control Valve, 1/2-2 Inch, Stainless Steel CF8M
Key Specifications / Features
Hits: 0
Our Bellows Seal Control Valves, exported from China, ensure leak-free operation with a short stroke design. Available in sizes ranging from 1/2 to 2 inches (DN15-DN50), and with a Class 150 LB rating, these valves are constructed from durable materials like ductile iron and bronze. Featuring flange ends for secure installation, they are ideal for applications requiring reliable fluid control while minimizing operational movement. Trusted for their robust performance and enhanced sealing capabilities, these valves meet stringent industry standards, making them suitable for a wide range of industrial applications.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Bellows Seal Control Valve
Size Range: 1/2 Inch - 2 Inch, DN15-DN50
Pressure Rating: PN10, PN16, Class 150 LB
Body Materials: Ductile Iron, Bronze, Carbon Steel(ASTM A216 WCB), Stainless Steel(ASTM A351 CF8M).
Trim Materials: Stainless Steel 316, Stainless Steel 303
Seat Materials: Jorcote on SST - Standard
Bellows: SS 316, Hastelloly C.
Yoke: Cast Iron
Actuator: Steel
Action: Direct (Air to Close), Reverse (Air to Open)
Shutoff: ANSI Class IV
Features & Benefits
1. Extended Bellows Life: It surpasses 2 million cycles in lab tests without bellows failure.
2. Minimal Valve Stroke: Offers a significantly shorter stroke compared to other rising stem valves, minimizing operational movement.
3. Backup Seal Assurance: Includes a fully packed secondary seal with multiple rings for enhanced leakage protection.
4. Monitoring Capability: Equipped with a detection/monitoring port for mounting a gauge to verify bellows performance.

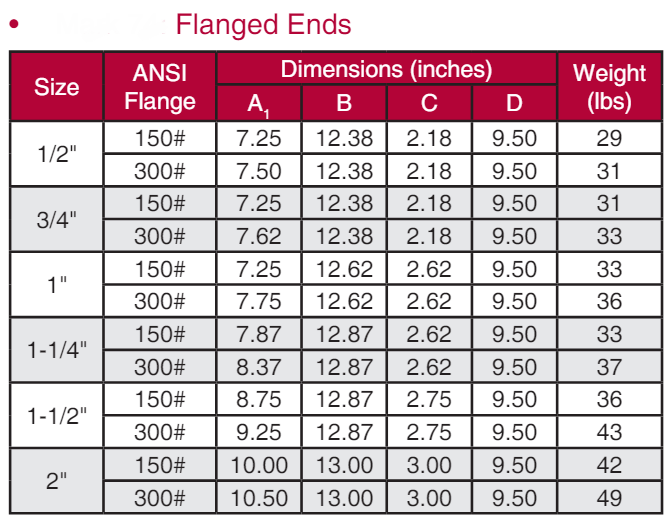

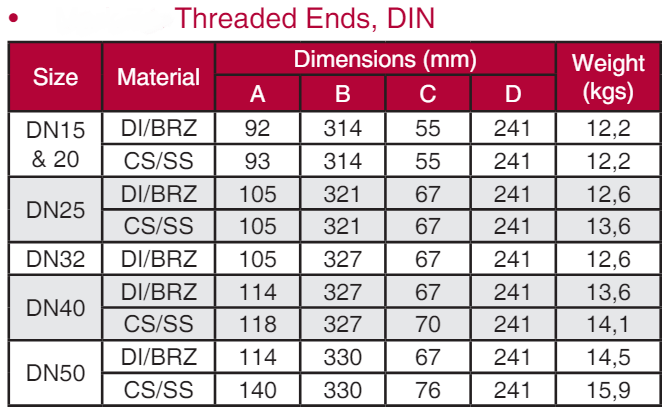

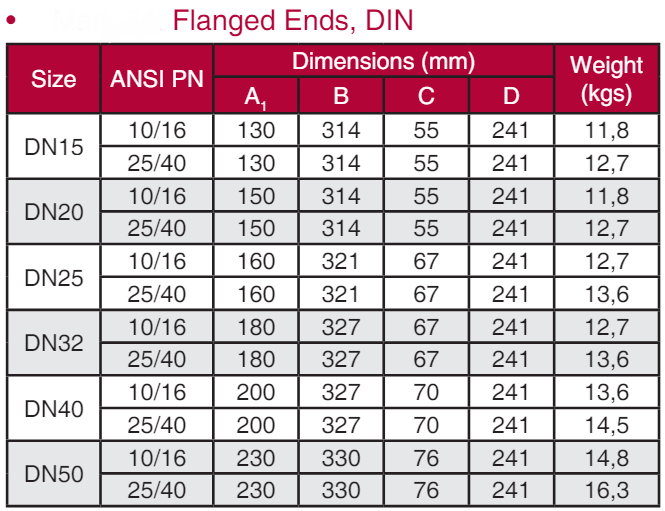

Dimensions
Product Name: Bellows Seal Control Valve
Size Range: 1/2 Inch - 2 Inch, DN15-DN50
Pressure Rating: PN10, PN16, Class 150 LB
Body Materials: Ductile Iron, Bronze, Carbon Steel(ASTM A216 WCB), Stainless Steel(ASTM A351 CF8M).
Trim Materials: Stainless Steel 316, Stainless Steel 303
Seat Materials: Jorcote on SST - Standard
Bellows: SS 316, Hastelloly C.
Yoke: Cast Iron
Actuator: Steel
Action: Direct (Air to Close), Reverse (Air to Open)
Shutoff: ANSI Class IV
Features & Benefits
1. Extended Bellows Life: It surpasses 2 million cycles in lab tests without bellows failure.
2. Minimal Valve Stroke: Offers a significantly shorter stroke compared to other rising stem valves, minimizing operational movement.
3. Backup Seal Assurance: Includes a fully packed secondary seal with multiple rings for enhanced leakage protection.
4. Monitoring Capability: Equipped with a detection/monitoring port for mounting a gauge to verify bellows performance.
Dimensions
