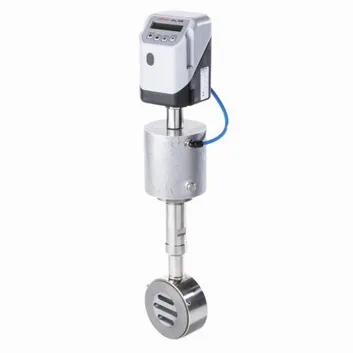

Wafer Style On/off Control Valve, 1-2 IN, Stainless Steel

Key Specifications / Features

Hits: 0
As an exporter of wafer-style control valves, we offer versatile on/off functionality in sizes ranging from 1 to 2 inches (DN25-DN50), suitable for Class 150-300 LB applications. Constructed from stainless steel or carbon steel with a gasket seal, these valves feature an 80mm stainless steel piston actuator. They come standard with the Gemu cPOS smart positioner for precise control applications; however, for on/off service, they can be supplied without a positioner. The "T" slot design connection allows for quick and easy reversal of function, switching between reverse acting and direct acting configurations as needed. Ideal for sizing selection and ensuring efficient operation across various industrial settings.
Request a quote

Detail Information

SPECIFICATIONS

Product Name: Wafer Style Control Valves
Size Range: 1 Inch - 2 Inch, DN25-DN50
Pressure: Class 150 LB - 300 LB
Body Material: Stainless Steel, Carbon Steel
Max Pressure Drop: 125 psi (8,6 bar) with standard piston actuator and spring
Turndown Ratio: 100:1
Shutoff: ANSI Class IV Tightness
End Connection: Wafer
Shutoff: Class IV
Yoke Materials: Ductile Iron, NAMUR Cast Iron
Actuator Case Material: Stainless Steel
Packing Material: Spring loaded Teflon V-Ring to 500°F (260°C), Grafoil above 500°F (260°C)
Action: Direct, Reverse
Turndown Ratio Capability: 100:1

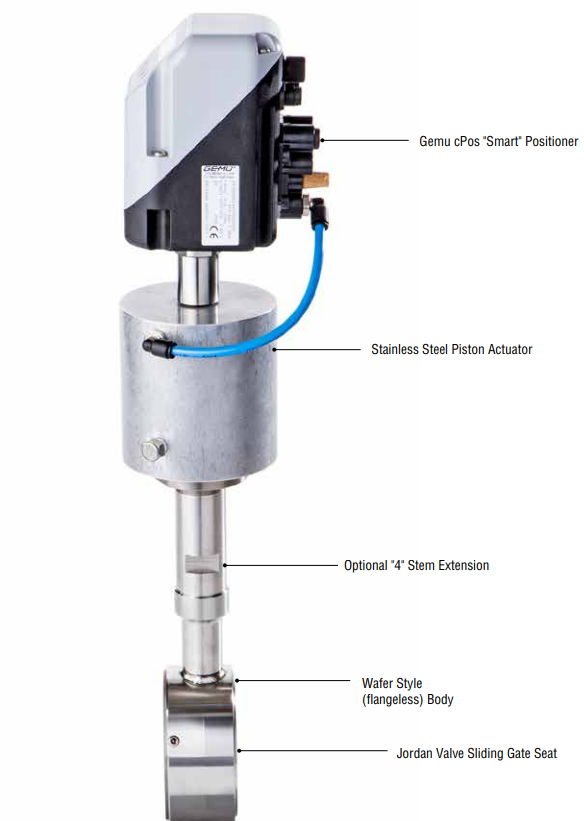

Stem Extension

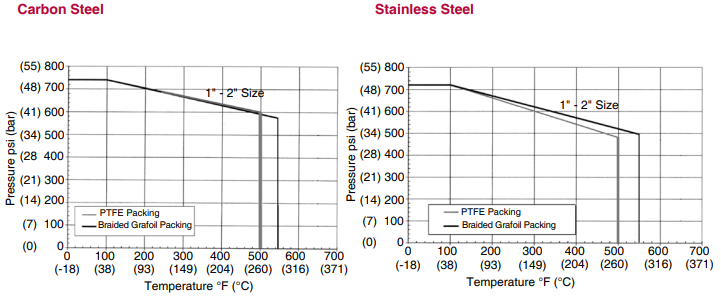

Pressure/Temperature Chart

pressure/temperature Chart


Dimensions

drawing

dimensions
