Motor-operated Electric Control Valve, 1/4-2 IN, Ductile Iron
Key Specifications / Features
Hits: 1
Our Motor-Operated Electric Control Valves are expertly fabricated for three-way applications. Featuring a motorized electric actuator, these valves are available in sizes ranging from 1/4 to 2 inches (DN8-DN50). Constructed from durable ductile iron, they come with both threaded and flanged ends to accommodate various installation needs. Designed for precision and reliability, these valves ensure efficient control in a wide range of industrial applications.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Three Way Motor-operated Electric Control Valve
Size Range: 1/4 Inch - 2 Inch, DN8-DN50
Body Materials: Ductile Iron, Bronze, Carbon Steel, Stainless Steel
End Connections: Threaded, Flanged
Seat Materials: Jorcote on SST (standard) Chrome Plated SST (Optional)
Shutoff: ANSI Class IV
Power Requirements: 24 VAC, 50/60 Hz (optional Transformer required for 120 VAC)
Command Signals: proportional control (0135 ohms); on-off control; current command (4-12, 4-20, 12-20 mA DC standard); voltage command 2-10 VDC
Trim Materials: SS 303, SS 316
Seat Materials:
Jorcote on SST — Standard
Chrome Plated on SST — Optional
Packing Material: Spring loaded Teflon V-Ring to 500°F (260°C), Grafoil above 500°F (260°C)
Service: Steam, oil, gas, air, water, chemicals
Shutoff: ANSI Class IV
Ambient Temperature Limit for Mortors: -40°F to 150°F
Power Requirements: 24 VAC, 50/60 Hz (optional transformer required for 120 VAC)
Command Signals: proportional control (0135 ohms); on-off control; current command (4-12, 4-20, 12-20 mA DC standard); voltage command 2-10 VDC
Features & Benefits
1. Oil-immersed motor and gear train ensure long-term, reliable performance.
2. Sliding gate seats deliver straight-through flow, reducing turbulence and ensuring quiet operation.
3. Short stroke design enables fast response and precise regulation.
4. Interchangeable Cvs for versatile application.
5. Provides tight shutoff for enhanced efficiency.

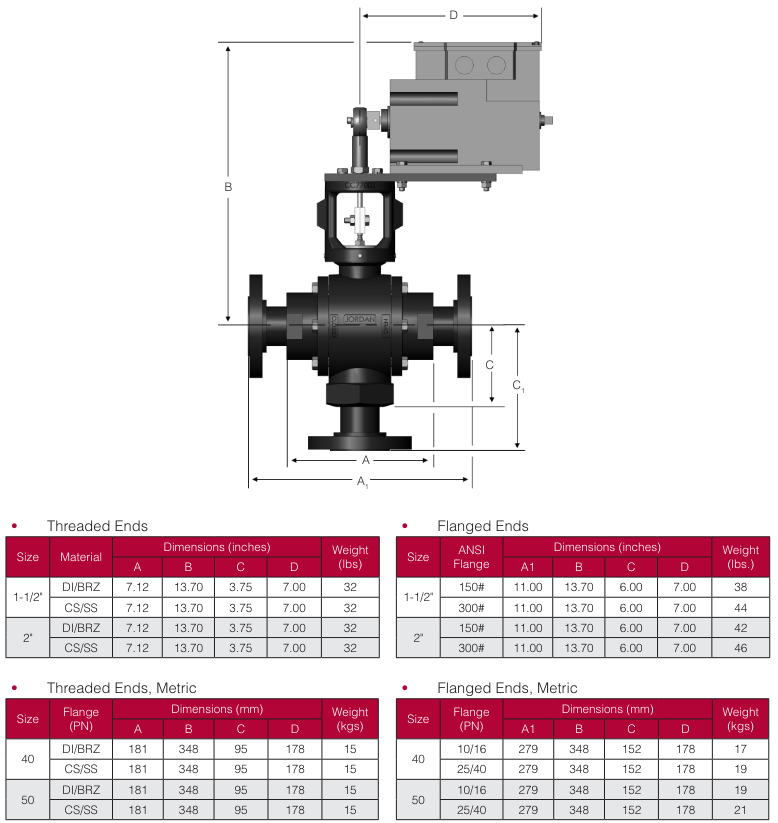

Dimensions
Product Name: Three Way Motor-operated Electric Control Valve
Size Range: 1/4 Inch - 2 Inch, DN8-DN50
Body Materials: Ductile Iron, Bronze, Carbon Steel, Stainless Steel
End Connections: Threaded, Flanged
Seat Materials: Jorcote on SST (standard) Chrome Plated SST (Optional)
Shutoff: ANSI Class IV
Power Requirements: 24 VAC, 50/60 Hz (optional Transformer required for 120 VAC)
Command Signals: proportional control (0135 ohms); on-off control; current command (4-12, 4-20, 12-20 mA DC standard); voltage command 2-10 VDC
Trim Materials: SS 303, SS 316
Seat Materials:
Jorcote on SST — Standard
Chrome Plated on SST — Optional
Packing Material: Spring loaded Teflon V-Ring to 500°F (260°C), Grafoil above 500°F (260°C)
Service: Steam, oil, gas, air, water, chemicals
Shutoff: ANSI Class IV
Ambient Temperature Limit for Mortors: -40°F to 150°F
Power Requirements: 24 VAC, 50/60 Hz (optional transformer required for 120 VAC)
Command Signals: proportional control (0135 ohms); on-off control; current command (4-12, 4-20, 12-20 mA DC standard); voltage command 2-10 VDC
Features & Benefits
1. Oil-immersed motor and gear train ensure long-term, reliable performance.
2. Sliding gate seats deliver straight-through flow, reducing turbulence and ensuring quiet operation.
3. Short stroke design enables fast response and precise regulation.
4. Interchangeable Cvs for versatile application.
5. Provides tight shutoff for enhanced efficiency.
Dimensions
