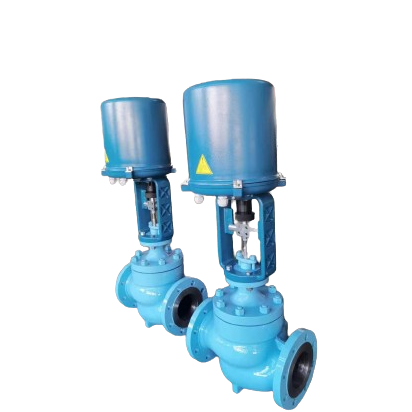

Carbon Steel Motorized Control Valve, ASME B16.34, A216 WCB
Key Specifications / Features
hits: 0
Carbon Steel Motorized Control Valves, compliant with ANSI/ISA 75.01.01 & ASME B16.34 standards and crafted from ASTM A216 WCB, range from Class 150 LB to 2500 LB. Vital in industrial automation across sectors like oil, chemicals, power generation, and pharmaceuticals, these valves ensure precise control. Our experts provide tailored guidance on model parameters and operational conditions, facilitating optimal selection and utilization for your specific needs.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Carbon Steel Motorized Control Valve
Product Name: Electric Globe Control Valve
Key Features: Motorized Control Valve, Carbon Steel, ASME B16.34 Standard
Design Standard: ANSI/ISA 75.01.01 & ASME B16.34
Face to Face Standard: ASME B16.10
Flange Standard: ASME B16.5
Materials: ASTM A216 WCB, WC6, ASTM A351 CF8, CF8M, CF3M, CF3, ASTM A352 LCB
Pressure Rating: Class 150 LB - 2500 LB, PN16-PN260
Sizes: 1 Inch - 24 Inch, DN25-DN600
Temperature Range: -196 to +550°C
Electric Actuator Basics:
Power Supply: Options DC24V, AC220V, AC380V.
Input Control Signal: Typically 4-20MA or DC1-5V.
Feedback Control Signal: Usually DC4-20MA (load resistance under 500 ohms).
Flow Characteristics: linear, equal percentage, and parabolic options
Key Parameters:
1. Nominal Diameter: Determines the valve's flow capacity; choose based on requirements.
2. Flow Coefficient: Indicates flow capacity, correlating with the nominal diameter. Higher coefficients signify greater capacity.
3. Adjustable Range: Reflects the valve's control capability within its rated stroke; broader ranges imply enhanced control.
4. Drive Mode: Options include mechanical electric, smart, or digital electric actuators, selected according to needs and site conditions.
5. Power Supply Voltage: Consider site power conditions; common options include AC220V, 380V, or DC24V.
6. Protection Grade: Denotes dust and water resistance, crucial for suitability in harsh environments. Choose accordingly for optimal performance.
Product Name: Carbon Steel Motorized Control Valve
Product Name: Electric Globe Control Valve
Key Features: Motorized Control Valve, Carbon Steel, ASME B16.34 Standard
Design Standard: ANSI/ISA 75.01.01 & ASME B16.34
Face to Face Standard: ASME B16.10
Flange Standard: ASME B16.5
Materials: ASTM A216 WCB, WC6, ASTM A351 CF8, CF8M, CF3M, CF3, ASTM A352 LCB
Pressure Rating: Class 150 LB - 2500 LB, PN16-PN260
Sizes: 1 Inch - 24 Inch, DN25-DN600
Temperature Range: -196 to +550°C
Electric Actuator Basics:
Power Supply: Options DC24V, AC220V, AC380V.
Input Control Signal: Typically 4-20MA or DC1-5V.
Feedback Control Signal: Usually DC4-20MA (load resistance under 500 ohms).
Flow Characteristics: linear, equal percentage, and parabolic options
Key Parameters:
1. Nominal Diameter: Determines the valve's flow capacity; choose based on requirements.
2. Flow Coefficient: Indicates flow capacity, correlating with the nominal diameter. Higher coefficients signify greater capacity.
3. Adjustable Range: Reflects the valve's control capability within its rated stroke; broader ranges imply enhanced control.
4. Drive Mode: Options include mechanical electric, smart, or digital electric actuators, selected according to needs and site conditions.
5. Power Supply Voltage: Consider site power conditions; common options include AC220V, 380V, or DC24V.
6. Protection Grade: Denotes dust and water resistance, crucial for suitability in harsh environments. Choose accordingly for optimal performance.
