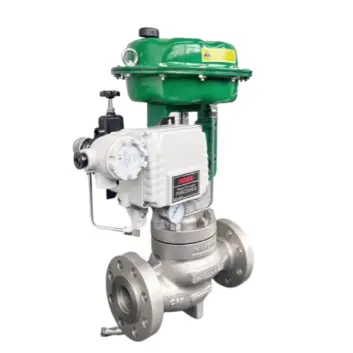

Pneumatic Pressure Balanced Control Valve, 2 IN, 600 LB, CF8
Key Specifications / Features
Hits: 4
Introducing our Pressure Balanced Cage Type Control Globe Valves, available in sizes ranging from 3/4 inch to 16 inches (DN20-DN400), made from ASTM A351 CF8 material. Designed for heavy-duty services, these valves feature a compact valve body with an S-shaped flow passage, minimizing pressure loss, and a stabilizer that regulates turbulent flow around the cage, ensuring high flow capacity, rangeability, and precise flow characteristics.
The pressure-balanced valve plug allows for flow control under high differential pressure with minimal actuating force. Integrated with simple yet powerful mechanisms, the diaphragm actuator, loaded with multiple springs, ensures efficient operation.
These valves find wide applications in controlling high or low-temperature, high-pressure, or high differential pressure process lines, offering dynamic stability, low noise, and resistance to cavitation and flashing.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Pneumatic Pressure Balanced Cage Single-seated Globe Control Valve
Sizes: 3/4 Inch - 16 Inch, DN20-DN400
Pressure Rating:
ANSI Class 125 LB, 150 LB, 300 LB, 600 LB
JIS 10K, 16K, 20K, 30K, 40K
PN16, PN40, PN64, PN100
Materials: ASTM A351 CF8, CF8M, CF3M, CF3, ASTM A216 WCB, WC6, ASTM A352 LCB
Temperature Range: -196 to +450°C
Bonnet
Plain bonnet (-17 to 230°C)
Extension bonnet Type1(-45 to -17°C and 230 to 566°C)
Extension bonnet Type 2 Cryogenic
Integral cast type (-100 to -45°C)
Welded type (-196 to -100°C)
Ambient temperature: -20 to 70°C
Valve action:
FO: Air to close(Direct action actuator is combined.)
FC: Air to open(Reverse action actuator is combined.)
Flow characteristics: Equal percentage, Linear
Linearity:
Without positioner: Within ±5% F.S.
With positioner: Within ±1% F.S.
Inherent rangeability: 50:1 (Optional 75:1 for full port size)
Leakage: Metal Seat, Soft Seat
End connection:
Flanged End: Flat Face (FF), Raised Face (RF), Ring Joint (RJ), Large Groove (LG)
Welded End: Socket Weld (SW), Butt Weld (BW)
Threaded End: Rc
Product Name: Pneumatic Pressure Balanced Cage Single-seated Globe Control Valve
Sizes: 3/4 Inch - 16 Inch, DN20-DN400
Pressure Rating:
ANSI Class 125 LB, 150 LB, 300 LB, 600 LB
JIS 10K, 16K, 20K, 30K, 40K
PN16, PN40, PN64, PN100
Materials: ASTM A351 CF8, CF8M, CF3M, CF3, ASTM A216 WCB, WC6, ASTM A352 LCB
Temperature Range: -196 to +450°C
Bonnet
Plain bonnet (-17 to 230°C)
Extension bonnet Type1(-45 to -17°C and 230 to 566°C)
Extension bonnet Type 2 Cryogenic
Integral cast type (-100 to -45°C)
Welded type (-196 to -100°C)
Ambient temperature: -20 to 70°C
Valve action:
FO: Air to close(Direct action actuator is combined.)
FC: Air to open(Reverse action actuator is combined.)
Flow characteristics: Equal percentage, Linear
Linearity:
Without positioner: Within ±5% F.S.
With positioner: Within ±1% F.S.
Inherent rangeability: 50:1 (Optional 75:1 for full port size)
Leakage: Metal Seat, Soft Seat
End connection:
Flanged End: Flat Face (FF), Raised Face (RF), Ring Joint (RJ), Large Groove (LG)
Welded End: Socket Weld (SW), Butt Weld (BW)
Threaded End: Rc
