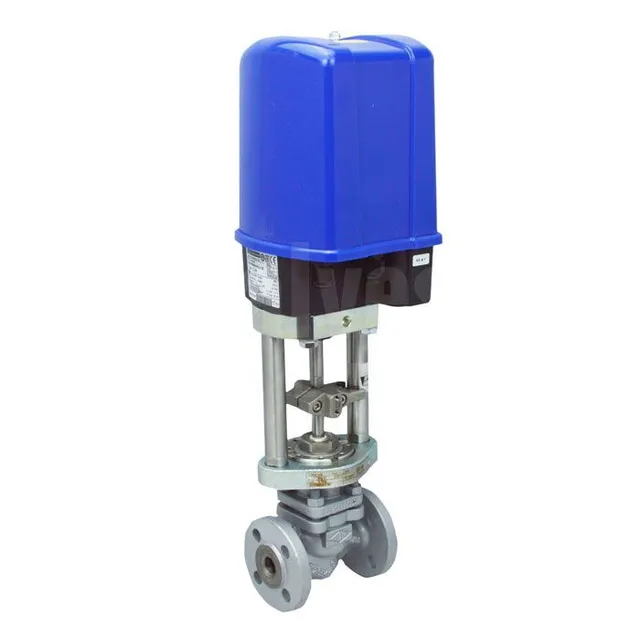

Cast Iron Electric Globe Control Valve, 1/2-4 IN, DN15-DN100
Key Specifications / Features
Hits: 7
We offer cast iron globe control valves with electric actuators, available in sizes from 1/2 to 4 inches (DN15 to DN100) and pressure ratings of PN16 to PN40 (Class 150 LB). Featuring a stainless steel 1.4021+QT trim and flanged ends, these valves are ideal for precise and durable operation even at high differential pressures. Benefits include long-lasting stem seals, flexible trims with multiple Kvs values, and vibration-reducing shaft guiding.
Designed for easy handling with a compact footprint, rotatable upper part, and reduced weight, these valves are perfect for industrial complexes, plant construction, and process technology installations. Suitable for mediums such as cooling water, cooling brine, warm water, hot water, and steam.
Request a quote
Tags
Detail Information
Technical Attributes
Product Name: Cast Iron Electric Globe Control Valve
Sizes: 1/2 Inch (DN15), 3/4 Inch (DN20), 1 Inch (DN25), 1-1/4 Inch (DN32), 1 1/2 Inch (DN40), 2 Inch (DN50), 2 1/2 Inch (DN65), 3 Inch (DN80), 4 Inch (DN100)
Pressure Rating: PN16-PN40
Body Material: Cast Iron (EN-JL1040)
Temperature Range: -10°C to +220°C
Media: Steam, Gas
End Connection: Flanged
Sealing Unit: Spring-loaded PTFE V-ring unit
Actuator: Electric Actuator (90-264V AC 47-63 Hz) with 0-10V or 4-20 mA input
Flow Capacity: Kvs values from 1 to 100
Rangeability: 50:1
Dimensions
Product Name: Cast Iron Electric Globe Control Valve
Sizes: 1/2 Inch (DN15), 3/4 Inch (DN20), 1 Inch (DN25), 1-1/4 Inch (DN32), 1 1/2 Inch (DN40), 2 Inch (DN50), 2 1/2 Inch (DN65), 3 Inch (DN80), 4 Inch (DN100)
Pressure Rating: PN16-PN40
Body Material: Cast Iron (EN-JL1040)
Temperature Range: -10°C to +220°C
Media: Steam, Gas
End Connection: Flanged
Sealing Unit: Spring-loaded PTFE V-ring unit
Actuator: Electric Actuator (90-264V AC 47-63 Hz) with 0-10V or 4-20 mA input
Flow Capacity: Kvs values from 1 to 100
Rangeability: 50:1
Dimensions
