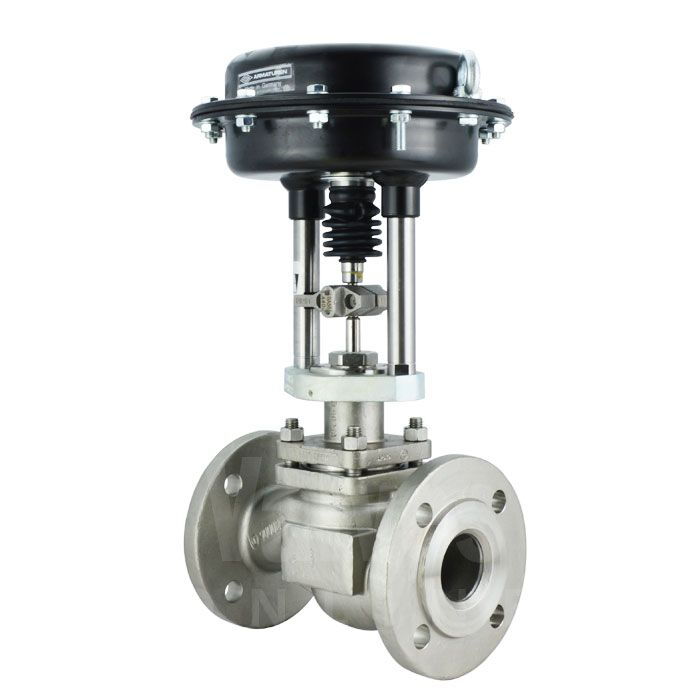

Pneumatic Globe Control Valve, Cast Iron, 1/2-4 IN, 150 LB

hits: 2

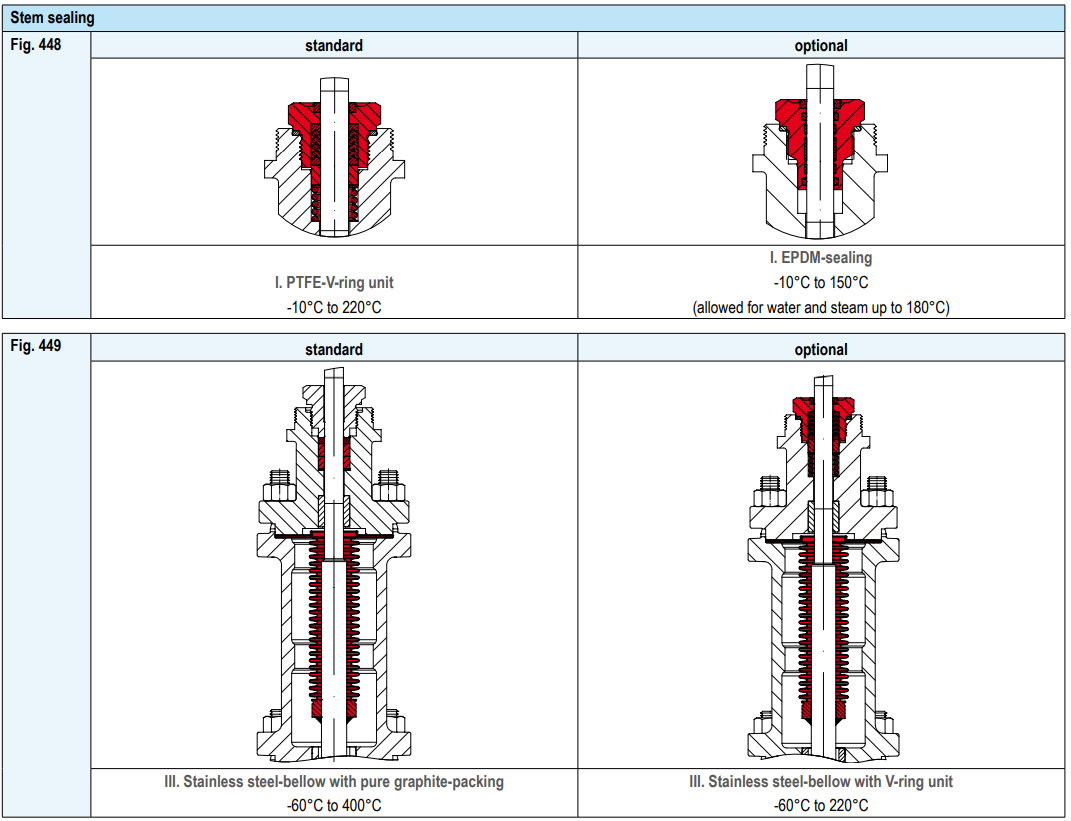

Our Pneumatic Globe Control Valve offers superior benefits over other control valves, including long-lasting stem seals tested millions of times, flexible and changeable trims providing multiple Kvs values per body size, and precise, durable operation even at high differential pressures due to vibration-reducing shaft guiding. It is easy to handle, features a small footprint, a rotatable upper part, and reduced weight compared to other control valves. This valve is ideal for non-critical complex control tasks in industrial complexes, plant construction, and process technology installations, managing mediums such as cooling water, cooling brine, warm water, hot water, and steam. Standard features include the 12.448 trim with a Cast Iron Body (EN JL1040), Stainless Steel (1.4021+QT) trim, and a Spring-Loaded PTFE V-Ring unit with a Spring Return (Fail Close) Pneumatic Actuator, and the Valves Online Digital Electro-Pneumatic Positioner unit. Options available upon request include different trim materials, parabolic plugs with PTFE seats, miniature Kvs values, and increased tightness on seats (Class IV leakage rate).
