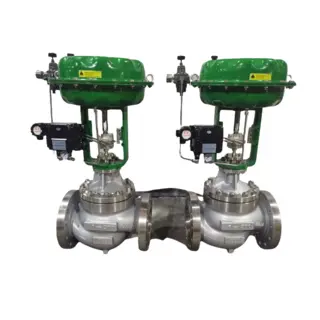

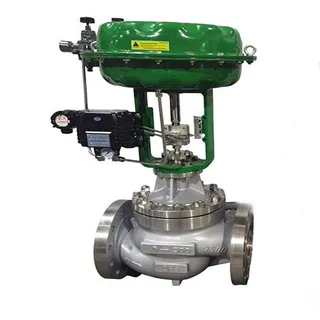

Stainless Steel Pneumatic Control Valve, 6 IN, 300 LB, CF8
Key Specifications / Features
Hits: 2
Our Pressure Balanced Cage Type Globe Control Valves are designed for heavy-duty services. The compact valve body features an S-shaped flow passage for low pressure loss and a stabilizer to regulate turbulent flow, ensuring large flow capacity, rangeability, and high accuracy. The pressure-balanced valve plug allows high differential pressure control with minimal actuating force. Equipped with a powerful diaphragm actuator with multiple springs, these valves are made of ASTM A351 CF8 and have flanged ends. They are suitable for high or low temperatures (-196 to +450°C) and high-pressure lines, offering dynamic stability, low noise, and resistance to cavitation and flashing.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Stainless Steel Pneumatic Control Valve
Key Features: Cage-Guided, Pressure-Balanced, Single-Seated
Pressure Rating:
ANSI Class 125 LB, 150 LB, 300 LB, 600 LB
JIS 10K, 16K, 20K, 30K, 40K
Sizes: DN20-DN400, 3/4 Inch - 16 Inch
Materials: ASTM A351 CF8, CF8M, CF3M, CF3, ASTM A216 WCB, WC6, ASTM A352 LCB
PN16, PN40, PN64, PN100
Temperature Range: -196 to +450°C
Bonnet
Plain bonnet (-17 to 230°C)
Extension bonnet Type1(-45 to -17°C and 230 to 566°C)
Extension bonnet Type 2 Cryogenic
Integral cast type (-100 to -45°C)
Welded type (-196 to -100°C)
Ambient temperature: -20 to 70°C
End connection:
Flanged End: Flat Face (FF), Raised Face (RF), Ring Joint (RJ), Large Groove (LG)
Welded End: Socket Weld (SW), Butt Weld (BW)
Threaded End: Threaded, RC, NPT
Inherent rangeability: 50:1 (Optional 75:1 for full port size)
Leakage: Metal Seat, Soft Seat
Valve action:
FO: Air to close(Direct action actuator is combined.)
FC: Air to open(Reverse action actuator is combined.)
Flow characteristics: Equal percentage, Linear
Linearity:
Without positioner: Within ±5% F.S.
With positioner: Within ±1% F.S.
DN20-DN50 External Dimensions for Standard, Bellows and Extension
Product Name: Stainless Steel Pneumatic Control Valve
Key Features: Cage-Guided, Pressure-Balanced, Single-Seated
Pressure Rating:
ANSI Class 125 LB, 150 LB, 300 LB, 600 LB
JIS 10K, 16K, 20K, 30K, 40K
Sizes: DN20-DN400, 3/4 Inch - 16 Inch
Materials: ASTM A351 CF8, CF8M, CF3M, CF3, ASTM A216 WCB, WC6, ASTM A352 LCB
PN16, PN40, PN64, PN100
Temperature Range: -196 to +450°C
Bonnet
Plain bonnet (-17 to 230°C)
Extension bonnet Type1(-45 to -17°C and 230 to 566°C)
Extension bonnet Type 2 Cryogenic
Integral cast type (-100 to -45°C)
Welded type (-196 to -100°C)
Ambient temperature: -20 to 70°C
End connection:
Flanged End: Flat Face (FF), Raised Face (RF), Ring Joint (RJ), Large Groove (LG)
Welded End: Socket Weld (SW), Butt Weld (BW)
Threaded End: Threaded, RC, NPT
Inherent rangeability: 50:1 (Optional 75:1 for full port size)
Leakage: Metal Seat, Soft Seat
Valve action:
FO: Air to close(Direct action actuator is combined.)
FC: Air to open(Reverse action actuator is combined.)
Flow characteristics: Equal percentage, Linear
Linearity:
Without positioner: Within ±5% F.S.
With positioner: Within ±1% F.S.
Flow Characteristics
DN20-DN50 External Dimensions for Standard, Bellows and Extension
