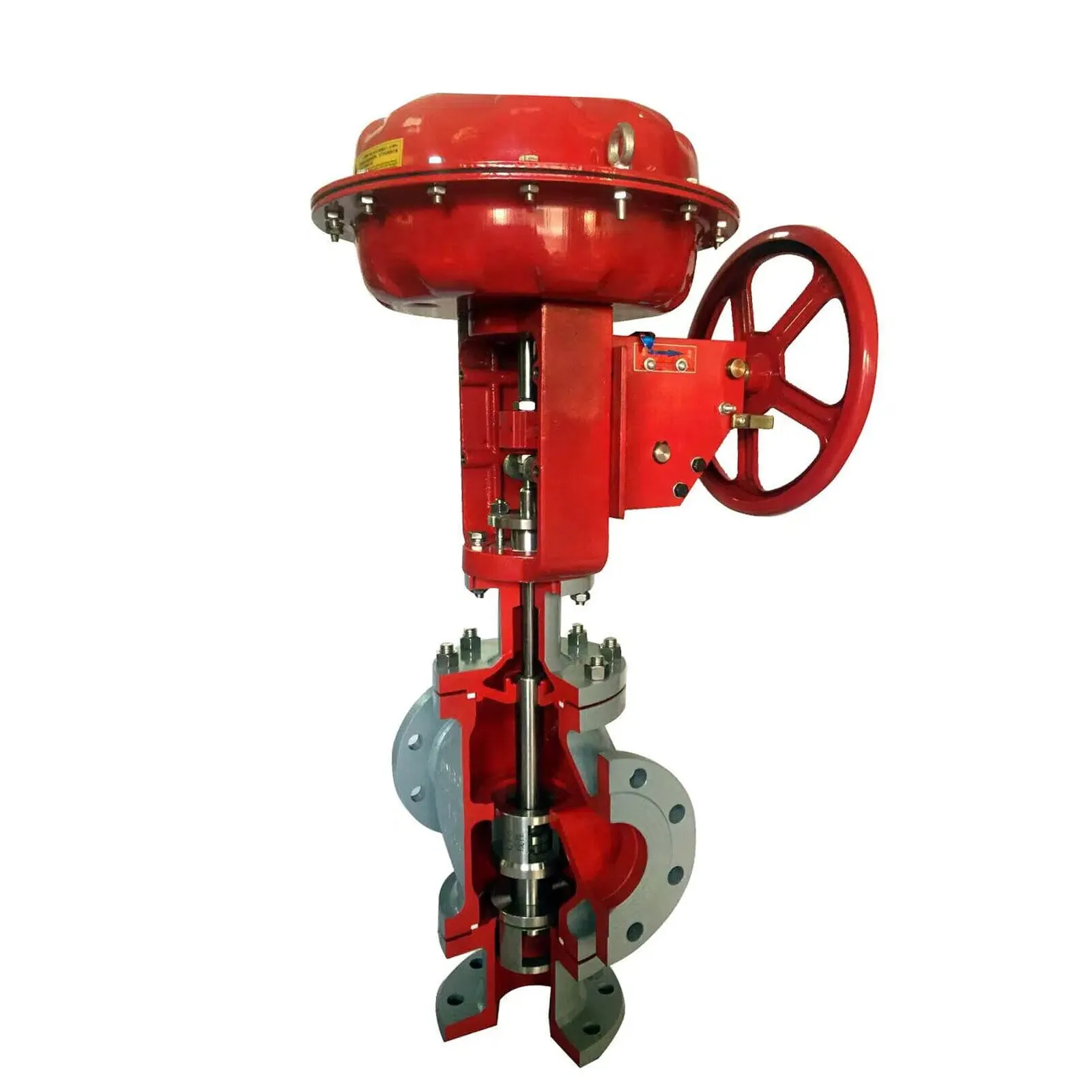

Diverter Globe Control Valve, Carbon Steel, 3-way, 125-600 LB
Key Specifications / Features
hits: 1
The mixing control valve blends two fluids into a third, while the diverting control valve splits one fluid into two. In a 3-way control valve, as one flow area enlarges, the other contracts, allowing precise control. These valves can replace two 2-way control valves, suitable for liquid, gas, or steam control.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: 3-way Diverter Globe Control Valve
Body Materials: ASTM A216 WCB, WC6, ASTM A352 LCB, ASTM A351 CF8, CF8M, CF3M, CF3
Key Features: Diverting Control Valve, Three Way, Carbon Steel
Body Type: Three-way Cast Globe Valve
Size Range: 3/4 - 14 Inch, DN20-DN350
Pressure rating: ANSI Class 125 LB, 150 LB, 300 LB, 600 LB, JIS 10K, 16K, 20K, 30K, 40K, PN16, PN40, PN64, PN100
End connection:
Flanged End: FF(Flat Face), RF(Raised Face), RJ(Ring Joint), LG(Large Male)
Welded End: SW(Socket Weld), BW(Butt Weld)
Threaded End: Rc(British Standard Pipe Taper)
Gasket material: Stainless steel(SUS 304, SUS 316, SUS 316L), copper, aluminum
Bonnet:
Plain bonnet (-17 to 230°C)
Extension bonnet (-60 to -29 °C or over 230°C)
Product Name: 3-way Diverter Globe Control Valve
Body Materials: ASTM A216 WCB, WC6, ASTM A352 LCB, ASTM A351 CF8, CF8M, CF3M, CF3
Key Features: Diverting Control Valve, Three Way, Carbon Steel
Body Type: Three-way Cast Globe Valve
Size Range: 3/4 - 14 Inch, DN20-DN350
Pressure rating: ANSI Class 125 LB, 150 LB, 300 LB, 600 LB, JIS 10K, 16K, 20K, 30K, 40K, PN16, PN40, PN64, PN100
End connection:
Flanged End: FF(Flat Face), RF(Raised Face), RJ(Ring Joint), LG(Large Male)
Welded End: SW(Socket Weld), BW(Butt Weld)
Threaded End: Rc(British Standard Pipe Taper)
Gasket material: Stainless steel(SUS 304, SUS 316, SUS 316L), copper, aluminum
Bonnet:
Plain bonnet (-17 to 230°C)
Extension bonnet (-60 to -29 °C or over 230°C)
