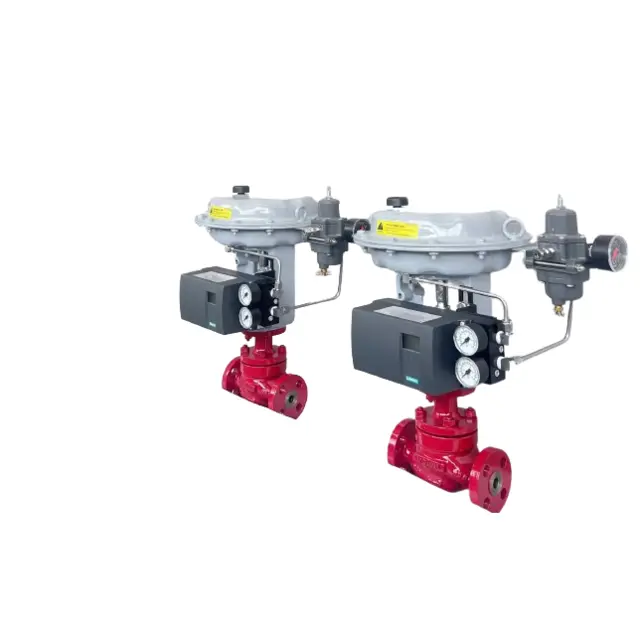

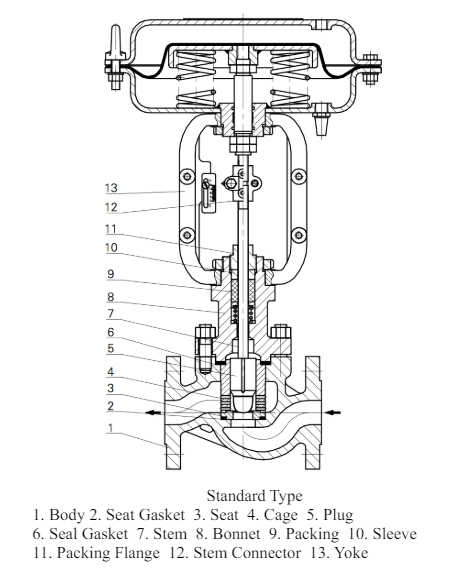

Pneumatic Cage-Guided Single-Seated Control Valve, 2IN, CL600
Key Specifications / Features
hits: 0
Introducing our Pneumatic Small-Port Cage-Guided Single-Seated Control Valves, engineered for high differential pressure applications where fluid differential pressure exceeds 2940 kPa (30 kgf/cm²). These valves are also ideal for heavy-duty scenarios where flashing or cavitation may occur. Their robust guides and protective cage design effectively prevent valve body erosion.
The compact valve body features an S-shaped flow passage, ensuring low pressure loss, high flow capacity, and excellent rangeability. Available with a wide range of Cv values, the valve plugs provide versatile flow control. The flow shutoff performance adheres to the highest standards, utilizing a simple yet powerful diaphragm actuator with multiple springs.
Our Control Valves are perfect for reliable management of small flows in both high- and low-temperature, high differential pressure process lines.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Pneumatic Small-Port Control Valve
Product Name: Pneumatic Cage-Guided Globe Control Valve
Key Features: Pneumatic Actuator, Small-Port, Cage-Guided, Single-seated
Sizes: 3/4 Inch - 2-1/2 Inch, DN20-DN65
Pressure Rating:
ANSI Class 125 LB, 150 LB, 300 LB, 600 LB
JIS 10K, 16K, 20K, 30K, 40K
PN16, PN40, PN64
End connection:
Flanged End: FF, RF, RJ, LG
Welded End: SW, BW
Threaded End: Rc
Materials: ASTM A216 WCB, WC6, ASTM A352 LCB, ASTM A351 CF8, CF8M, CF3M, CF3
Bonnet:
Plain bonnet (-17 to 230°C)
Extension bonnet (-45 to -17°C and 230 to 566°C)
Integral cast type (-100 to -45°C)
Welded type (-196 to -100°C)
Actuator Type: Single-acting diaphragm actuator
Diaphragm material: Cloth embedded nylon and ethylene propylene rubber
Ambient temperature: -30 to 70°C
Temperature Range: -196 to +450°C
Valve action:
FO: Air to close(Direct action actuator is combined.)
FC: Air to open(Reverse action actuator is combined.)
Flow characteristics: Equal percentage, Linear
Leakage: Metal Seat, Soft Seat
Linearity:
Without positioner: Within ±5% F.S.
With positioner: Within ±1% F.S.
Product Name: Pneumatic Small-Port Control Valve
Product Name: Pneumatic Cage-Guided Globe Control Valve
Key Features: Pneumatic Actuator, Small-Port, Cage-Guided, Single-seated
Sizes: 3/4 Inch - 2-1/2 Inch, DN20-DN65
Pressure Rating:
ANSI Class 125 LB, 150 LB, 300 LB, 600 LB
JIS 10K, 16K, 20K, 30K, 40K
PN16, PN40, PN64
End connection:
Flanged End: FF, RF, RJ, LG
Welded End: SW, BW
Threaded End: Rc
Materials: ASTM A216 WCB, WC6, ASTM A352 LCB, ASTM A351 CF8, CF8M, CF3M, CF3
Bonnet:
Plain bonnet (-17 to 230°C)
Extension bonnet (-45 to -17°C and 230 to 566°C)
Integral cast type (-100 to -45°C)
Welded type (-196 to -100°C)
Actuator Type: Single-acting diaphragm actuator
Diaphragm material: Cloth embedded nylon and ethylene propylene rubber
Ambient temperature: -30 to 70°C
Temperature Range: -196 to +450°C
Valve action:
FO: Air to close(Direct action actuator is combined.)
FC: Air to open(Reverse action actuator is combined.)
Flow characteristics: Equal percentage, Linear
Leakage: Metal Seat, Soft Seat
Linearity:
Without positioner: Within ±5% F.S.
With positioner: Within ±1% F.S.
Flow Characteristics
