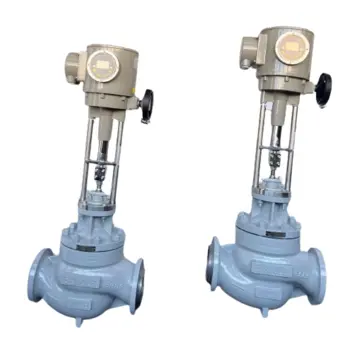

Electric Globe Control Valve, ASME B16.34, 5 IN, 300 LB, WCB
Key Specifications / Features
Hits: 1
Electric control valves adhere to design standards ANSI/ISA 75.01.01 and ASME B16.34, with face-to-face dimensions per ASME B16.10 and flange specifications following ASME B16.5. These valves play a vital role in industrial automation, spanning industries like oil, chemicals, power generation, and pharmaceuticals. Our team provides expert guidance on model parameters and operational conditions, ensuring optimal selection and utilization of electric control valves tailored to your specific requirements.
Request a quote
Tags
Detail Information
Product Name: Motorized Globe Control Valve
Key Features: Electric Control Valve, Carbon Steel
Design Standard: ANSI/ISA 75.01.01, ASME B16.34
Size: 1 Inch - 24 Inch, DN25-DN600
Pressure rating: ANSI Class 150 LB - 2500 LB, PN20-PN420
Body Materials: ASTM A216 WCB, WC6, ASTM A352 LCB, ASTM A351 CF8, CF8M, CF3M, CF3
End Connection: Flanged
Flange Standard: ASME B16.5
Face to Face Standard: ASME B16.10
Temperature Range: -196°C to +675°C
Flow Characteristics: Linear
Electric Actuator Basics:
Power Supply: Options DC24V, AC220V, AC380V.
Input Control Signal: Typically 4-20MA or DC1-5V.
Feedback Control Signal: Usually DC4-20MA (load resistance under 500 ohms).
Key Features: Electric Control Valve, Carbon Steel
Design Standard: ANSI/ISA 75.01.01, ASME B16.34
Size: 1 Inch - 24 Inch, DN25-DN600
Pressure rating: ANSI Class 150 LB - 2500 LB, PN20-PN420
Body Materials: ASTM A216 WCB, WC6, ASTM A352 LCB, ASTM A351 CF8, CF8M, CF3M, CF3
End Connection: Flanged
Flange Standard: ASME B16.5
Face to Face Standard: ASME B16.10
Temperature Range: -196°C to +675°C
Flow Characteristics: Linear
Electric Actuator Basics:
Power Supply: Options DC24V, AC220V, AC380V.
Input Control Signal: Typically 4-20MA or DC1-5V.
Feedback Control Signal: Usually DC4-20MA (load resistance under 500 ohms).
