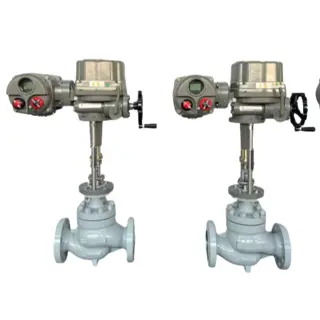

ASME B16.34 Motorized Globe Control Valve, 2 IN, 300 LB, WCC
Key Specifications / Features
Hits: 1
Electric control valves are vital in industrial automation, employed in oil, chemicals, power generation, and pharmaceutical sectors. Adhering to design standards ANSI/ISA 75.01.01 & ASME B16.34, face-to-face standards ASME B16.10, and flange standards ASME B16.5, they ensure reliability and compatibility. Our experts provide comprehensive guidance on model parameters and operational conditions, facilitating informed selection and optimal utilization of electric control valves tailored to your requirements.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: ASME B16.34 Motorized Globe Control Valve
Design Standard: ANSI/ISA 75.01.01 & ASME B16.34
Face to Face Standard: ASME B16.10
Flange Standard: ASME B16.5
Size Ranges: 1 Inch - 24 Inch, DN25-DN600
ANSI Class: Class 150 LB to 2500 LB, PN 20 to PN 420
Body Materials: ASTM A216 WCC, A216 WCB, A216WC6, ASTM A352 LCB, ASTM A351 CF8, CF8M, CF3M, CF3
Temperature Range: -196 to +550°C
Electric Actuator Basics:
Power Supply: Options DC 24V, AC 220V, AC 380V.
Input Control Signal: Typically 4-20 MA or DC 1-5V.
Feedback Control Signal: Usually DC 4-20 MA (load resistance under 500 ohms).
Flow Characteristics: Equal Percentage, Linear
Product Name: ASME B16.34 Motorized Globe Control Valve
Design Standard: ANSI/ISA 75.01.01 & ASME B16.34
Face to Face Standard: ASME B16.10
Flange Standard: ASME B16.5
Size Ranges: 1 Inch - 24 Inch, DN25-DN600
ANSI Class: Class 150 LB to 2500 LB, PN 20 to PN 420
Body Materials: ASTM A216 WCC, A216 WCB, A216WC6, ASTM A352 LCB, ASTM A351 CF8, CF8M, CF3M, CF3
Temperature Range: -196 to +550°C
Electric Actuator Basics:
Power Supply: Options DC 24V, AC 220V, AC 380V.
Input Control Signal: Typically 4-20 MA or DC 1-5V.
Feedback Control Signal: Usually DC 4-20 MA (load resistance under 500 ohms).
Flow Characteristics: Equal Percentage, Linear
