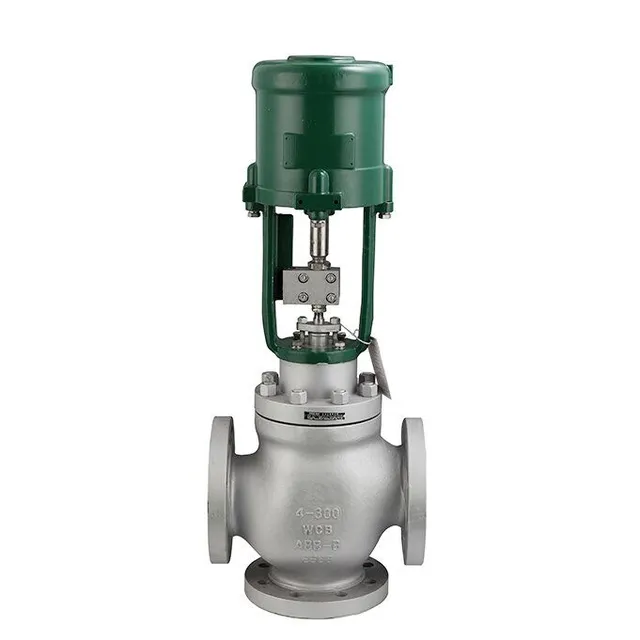

Electric Mixing Diverting Globe Control Valve, 3-Way, 1-12 IN
Key Specifications / Features
Hits: 3
Our 3-Way Electric Globe Control Valve, available in sizes from 1-12 inches and pressure ratings PN16-PN64, is constructed from durable ASTM A216 WCB and stainless steel. It features an electric actuator with two action types: mixing (converging) and diverting (diverging). The valve integrates a PSL series or 3810 series linear electric actuator with a servo amplifier. With control signals of 4-20mADC or 1-5VDC, the valve precisely manages pressure, flow, liquid level, and temperature. Ideal for industrial applications, it efficiently mixes two fluids into one or divides one fluid into two, ensuring optimal process control.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Electric Mixing Diverting Globe Control Valve
Size Range: 1 Inch - 12 Inch, DN15-DN300
Pressure Rating: PN16-PN64, Class 150 LB - 400 LB
Body Material: ASTM A216 WCB, ASTM A217 WC6, SS 304, SS 316, nickel, titanium, Hastelloy, Monel, etc.
Valve Material: SS 304, SS 316, 420, Nickel, Titanium, Hastelloy, Monel, etc.
Working Temperature: -40°C to 230°C
The Inherent Modulation Ratio: IV, 30:01:00
Flow Characteristics: Linear, Equal percentage, Quick opening
Power Supply: AC220V 50HZ
Input Signal: 4-20mADC,1-5VDC
Product Name: Electric Mixing Diverting Globe Control Valve
Size Range: 1 Inch - 12 Inch, DN15-DN300
Pressure Rating: PN16-PN64, Class 150 LB - 400 LB
Body Material: ASTM A216 WCB, ASTM A217 WC6, SS 304, SS 316, nickel, titanium, Hastelloy, Monel, etc.
Valve Material: SS 304, SS 316, 420, Nickel, Titanium, Hastelloy, Monel, etc.
Working Temperature: -40°C to 230°C
The Inherent Modulation Ratio: IV, 30:01:00
Flow Characteristics: Linear, Equal percentage, Quick opening
Power Supply: AC220V 50HZ
Input Signal: 4-20mADC,1-5VDC
