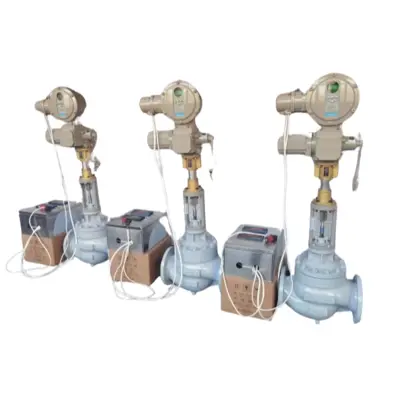

Power Plant Electric Globe Control Valve, DN150, PN16, WCB
Key Specifications / Features
Hits: 5
Electric control valves play a pivotal role in industrial automation, widely utilized in oil, chemicals, power generation, and pharmaceutical sectors. Our experts provide meticulous guidance on model parameters and operational conditions, ensuring optimal selection and utilization of electric control valves. Conforming to ANSI/ISA 75.01.01 and ASME B16.34 standards, with Face to Face Standard ASME B16.10 and Flange Standard ASME B16.5, these valves are available in sizes ranging from 1 inch to 24 inches (DN25-DN600). With pressure ratings spanning from Class 150 LB to 600 LB (PN20-PN100), and constructed from ASTM A216 WCB, they ensure reliability and efficiency for diverse industrial needs.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Power Plant Electric Globe Control Valves
Body Materials: ASTM A216 WCB, WC6, ASTM A352 LCB, ASTM A351 CF8, CF8M, CF3M, CF3
Size Ranges: 1 Inch - 24 Inch, DN25-DN600
Pressure Rating: Class 150 LB - 600 LB, PN20-PN100
Design Standard: ANSI/ISA 75.01.01 & ASME B16.34
Face to Face Standard: ASME B16.10
Flange Standard: ASME B16.5
Temperature Range: -196 to +550°C
Electric Actuator Basics:
Power Supply: Options DC24V, AC220V, AC380V.
Input Control Signal: Typically 4-20MA or DC1-5V.
Feedback Control Signal: Usually DC4-20MA (load resistance under 500 ohms).
Flow Characteristics: Equal Percentage, Linear
Product Name: Power Plant Electric Globe Control Valves
Body Materials: ASTM A216 WCB, WC6, ASTM A352 LCB, ASTM A351 CF8, CF8M, CF3M, CF3
Size Ranges: 1 Inch - 24 Inch, DN25-DN600
Pressure Rating: Class 150 LB - 600 LB, PN20-PN100
Design Standard: ANSI/ISA 75.01.01 & ASME B16.34
Face to Face Standard: ASME B16.10
Flange Standard: ASME B16.5
Temperature Range: -196 to +550°C
Electric Actuator Basics:
Power Supply: Options DC24V, AC220V, AC380V.
Input Control Signal: Typically 4-20MA or DC1-5V.
Feedback Control Signal: Usually DC4-20MA (load resistance under 500 ohms).
Flow Characteristics: Equal Percentage, Linear
Characteristic Curves Of Control Valve
