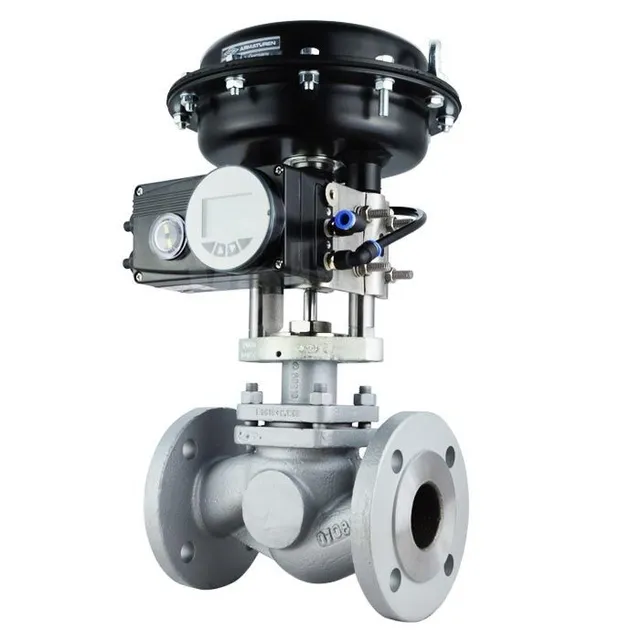

Electro-Pneumatic Globe Control Valve, PN40, DN15-DN100
Key Specifications / Features
hits: 3
Our Electro-Pneumatic Globe Control Valve, featuring a robust pneumatic actuator and digital positioning, is designed for demanding applications. Available in sizes from 1/2 to 4 inches (DN15 to DN100) with PN40 or Class 300 LB rating and cast steel flange ends, this valve provides exceptional performance.
Key benefits include long-lasting stem seals, flexible changeable trims offering multiple Kvs values per body size, and precise, durable operation even at high differential pressures thanks to vibration-reducing shaft guiding. The valve is easy to handle with a compact footprint, rotatable upper part, and reduced weight compared to other control valves.
Ideal for non-critical complex control tasks, it is suitable for use in industrial complexes, plant construction, and process technology installations. It efficiently manages mediums such as cooling water, cooling brine, warm water, hot water, and steam, ensuring reliable and precise flow control.
Request a quote
Tags
Detail Information
Technical Attributes
Product Name: Electro-Pneumatic Globe Control Valve
Key Features: Spring Close Pneumatic Actuator, Spring Loaded PTFE V-Ring Unit
Size Range: 1/2 Inch (DN15), 3/4 Inch (DN20), 1 Inch (DN25), 1 1/4 Inch (DN32), 1 1/2 Inch (DN40), 2 Inch (DN50), 2 1/2 Inch (DN65), 3 Inch (DN80), 4 Inch (DN100)
Pressure: PN40, Class 150 LB
Materials: Cast Steel (1.0619+N) Body & Stainless Steel 1.4021+QT Trim
End Connection: Flanged
Media: Steam / Gas
Temperature Range: -10 to +220°C
Key Features
1. Spring-Loaded PTFE V-Ring Unit
2. Spring Return Pneumatic Actuator
3. Temperature rating from -10°C to +220°C
4. Available in sizes DN15 to DN100 with Kvs values from 1 to 100
5. 50:1 rangeability
6. Digital Electro-Pneumatic Valve Positioner with 0-10V, 0-5V, 0-20mA, or 4-20mA input options
Dimensions
Product Name: Electro-Pneumatic Globe Control Valve
Key Features: Spring Close Pneumatic Actuator, Spring Loaded PTFE V-Ring Unit
Size Range: 1/2 Inch (DN15), 3/4 Inch (DN20), 1 Inch (DN25), 1 1/4 Inch (DN32), 1 1/2 Inch (DN40), 2 Inch (DN50), 2 1/2 Inch (DN65), 3 Inch (DN80), 4 Inch (DN100)
Pressure: PN40, Class 150 LB
Materials: Cast Steel (1.0619+N) Body & Stainless Steel 1.4021+QT Trim
End Connection: Flanged
Media: Steam / Gas
Temperature Range: -10 to +220°C
Key Features
1. Spring-Loaded PTFE V-Ring Unit
2. Spring Return Pneumatic Actuator
3. Temperature rating from -10°C to +220°C
4. Available in sizes DN15 to DN100 with Kvs values from 1 to 100
5. 50:1 rangeability
6. Digital Electro-Pneumatic Valve Positioner with 0-10V, 0-5V, 0-20mA, or 4-20mA input options
Dimensions
