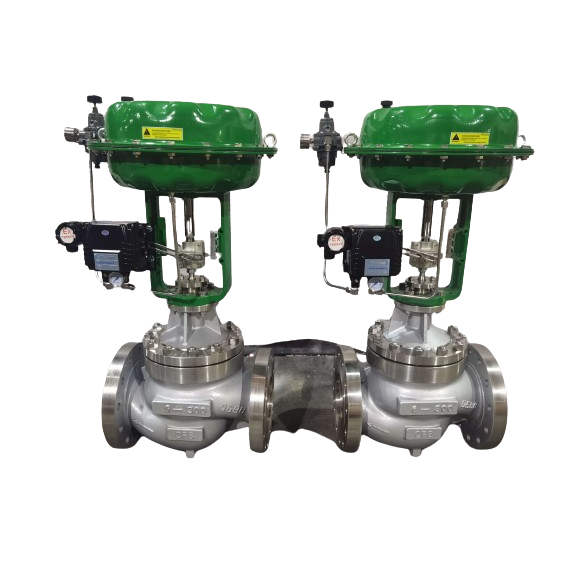

ASTM A351 CF8 Globe Control Valve, Single-Seated, 6IN, CL300
Key Specifications / Features
Model no.: CNCV-240508-GCV-04
hits: 1
Explore our ASTM A351 CF8 Globe Control Valves, crafted for top-tier performance and longevity. These valves, available in a 6-inch size with a Class 300 LB rating and PN50 pressure compatibility, feature a single-seated, cage-guided design for precision control. Fitted with pneumatic actuators and flanged ends, they ensure seamless automation and easy integration into your systems.
Request a quote
Tags
Detail Information
Product Name: ASTM A351 CF8 Globe Control Valve
Key Features: Pressure Balanced, Cage Guided, Single-Seated
Size: 6 Inch, DN150
Pressure: Class 300 LB, PN50
Body Material: ASTM A351 CF8
End Connection: Flanged
Temperature Range: -196β to +450β
Flow Characteristics: Equal Percentage, Linear
Rangeability: 50:1 (Optional 75:1 for Full Port Size)
Product Range:
Size Range: 3/4-16 Inch, DN20-DN400
Pressure Rating: Class 150-600 LB, PN20-PN100
Body Material: ASTM A216 WCB, ASTM A352 LCB, ASTM A217 WC6, ASTM A351 CF8, CF8M, CF3, CF3M
Seat Leakage Class: ANSI B16.104 Class II (Metal Seat), ANSI B16.104 Class VI (Soft Seat)
Actuator Options:
Single Acting Diaphragm Actuator
Spring Type Piston Actuator
Double Acting Piston Actuator
