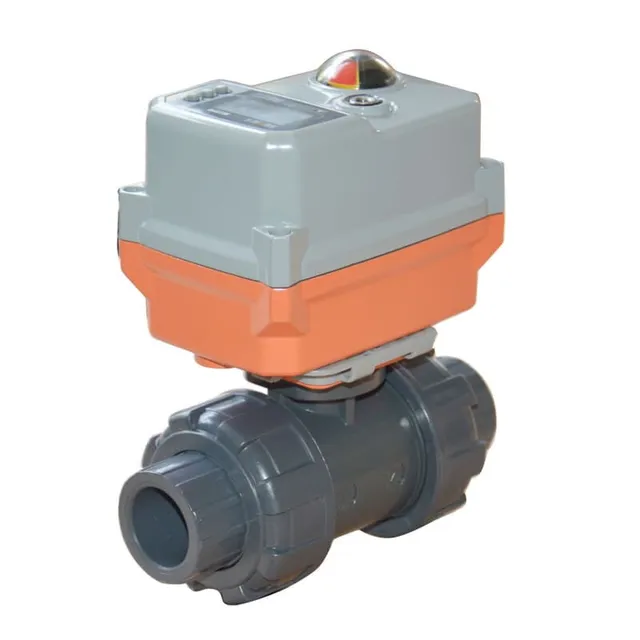

UPVC Motorized Ball Control Valve, DN15-DN100, 150 LB
Key Specifications / Features
Hits: 1
Our China-based factory specializes in manufacturing PVC motorized ball control valves, offering a range of benefits. Featuring electric actuators, our valves ensure precise control in various applications. Constructed from durable materials including UPVC, CPVC, and PPH, they provide excellent corrosion resistance and longevity. Available in sizes from 1/2 to 4 inches (DN15-DN100) and compatible with Class 150 LB and PN16 pressure ratings, our valves cater to diverse installation needs. With options for socket and threaded connections, they offer versatility and ease of installation. Trust our valves for reliable performance and durability in your operations.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: PVC Motorized Ball Control Valve
Body Material: UPVC, CPVC, PPH
Ball: UPVC, CPVC, PPH
End Connection: Socket, Threaded, Flanged
Size Range: 1/2 Inch - 4 Inch, DN15-DN100
Pressure Rating: Class 150 LB, PN16
Medium: Gas, Water and Oil, etc
Electric Actuator: On/off, Adjustable Type
Control signal: 4-20 mADC, 0-5 VDC, 0-10 VDC
Power: 12 VDC, 24 VAC, 24 VDC, 220 VAC, 120 VAC, 380 VAC 50/60 Hz ±10%
Optional:
Explosion-proof actuator: Exd II CT5, Exd II BT5
Seat: PTFE
Product Name: PVC Motorized Ball Control Valve
Body Material: UPVC, CPVC, PPH
Ball: UPVC, CPVC, PPH
End Connection: Socket, Threaded, Flanged
Size Range: 1/2 Inch - 4 Inch, DN15-DN100
Pressure Rating: Class 150 LB, PN16
Medium: Gas, Water and Oil, etc
Electric Actuator: On/off, Adjustable Type
Control signal: 4-20 mADC, 0-5 VDC, 0-10 VDC
Power: 12 VDC, 24 VAC, 24 VDC, 220 VAC, 120 VAC, 380 VAC 50/60 Hz ±10%
Optional:
Explosion-proof actuator: Exd II CT5, Exd II BT5
Seat: PTFE
