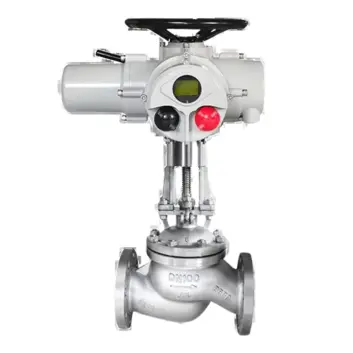

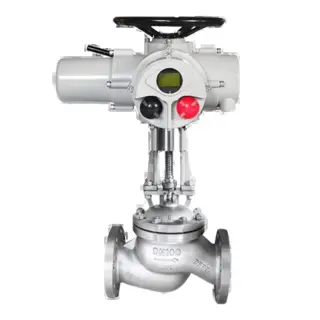

Multi-turn Globe Control Valve, 2-16 IN, Cast Iron, PN10
Key Specifications / Features
Hits: 5
The Multi-turn Globe Control Valves excel in precise throttling applications, ensuring accurate and repeatable flow control. Crafted from robust stainless steel 316, they feature a bolted bonnet for secure assembly, non-rising stem, and flanged connections for seamless integration into pipelines or plumbing systems. Their sturdy construction offers enhanced strength and corrosion resistance, while the API 600 Pull test compliant stem/wedge connection ensures reliability. With an elegant die-cast aluminum alloy shell, these valves combine exquisite design with functionality. They offer various operation modes including switch, passive contact, proportion, and intelligent adjustment types, guaranteeing versatility and safety across diverse power supplies and applications.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Multi-turn Globe Control Valves
Size Range: 2 Inch - 16 Inch, DN50-DN400
Pressure Rating: PN10, PN16, PN20, PN25
Design Standard: ANSI, JIS, DIN, BS, GB
Body Material: Cast Iron
Sealing material: PTFE, NBR, EPDM, VITON
Stem Material: Cast Iron, ASTM A216 WCB, SS 316
End Connection: Flange
Structure: Midline Structure, A-Type
Applicable Media: Water, Air, Gas, Oil, Liquid
Power Supply:
Conventional: single phase 220v, three-phase 380v
Special: three-phase 400v, 415v, 660v(50Hz, 60Hz)
Working Environment:
Ambient temperature: -20°C to + 60°C (special temperature environment can be customized)
Relative humidity: 95% (at 25°C)
Protection level: Outdoor type and explosion-proof type are IP55 (IP65, IP67, IP68 can be provided for special order)
Product Name: Multi-turn Globe Control Valves
Size Range: 2 Inch - 16 Inch, DN50-DN400
Pressure Rating: PN10, PN16, PN20, PN25
Design Standard: ANSI, JIS, DIN, BS, GB
Body Material: Cast Iron
Sealing material: PTFE, NBR, EPDM, VITON
Stem Material: Cast Iron, ASTM A216 WCB, SS 316
End Connection: Flange
Structure: Midline Structure, A-Type
Applicable Media: Water, Air, Gas, Oil, Liquid
Power Supply:
Conventional: single phase 220v, three-phase 380v
Special: three-phase 400v, 415v, 660v(50Hz, 60Hz)
Working Environment:
Ambient temperature: -20°C to + 60°C (special temperature environment can be customized)
Relative humidity: 95% (at 25°C)
Protection level: Outdoor type and explosion-proof type are IP55 (IP65, IP67, IP68 can be provided for special order)
Multi-turn Globe Control Valve
