Introduction
In industrial and automated systems, ensuring the safety and functionality of equipment during power failures is crucial. This is where spring return electric actuators come into play. These devices are designed to automatically return valves or other equipment to a preset "safe" position, such as fully open or fully closed, if there is a power loss. Utilizing an internal spring storage mechanism, they offer a reliable, fail-safe solution, particularly in emergency situations. This article will explore the mechanics of spring return electric actuators, their types, applications, and the differences between spring return and double-acting actuators.

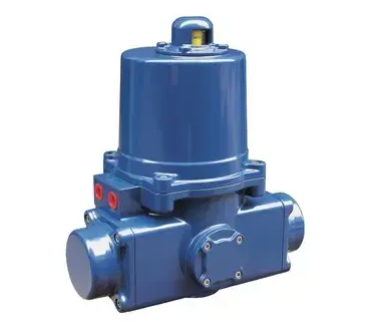

What is a Spring Return Electric Actuator?
A spring return electric actuator is a type of actuator that uses a spring mechanism to return equipment to a predefined position when there is a loss of power. This automatic resetting feature is invaluable in applications where human intervention is either not possible or too risky. The actuator ensures that the system behaves predictably, returning to a safe state (either open or closed) in the event of an unexpected power failure, making it a critical component in various industrial systems.
Actuators, in general, are devices that convert energy into mechanical motion, enabling control over equipment like valves, dampers, and other mechanical systems. They are often used in industrial settings for tasks such as regulating fluid flow, controlling pressure, or adjusting operational settings. Spring return actuators are specifically designed with a built-in spring that is compressed during normal operation. Upon power failure, the spring is released, and the actuator moves the connected valve or equipment to its preset position.
How Does a Spring Return Actuator Work?
To understand the function of a spring return actuator, it’s important to grasp the basic principle behind actuators in general. An actuator is a control device powered by an external energy source, which can be one of the following:
Electric
Pneumatic
Hydraulic
In many industrial settings, electric actuators are the most commonly used type. These actuators use electrical power to move a mechanical component, such as a valve or damper. They can be controlled either manually or automatically. While manual control requires human interaction, automatic actuators are typically controlled through a signal sent from a control system.
For spring return actuators, the primary operation relies on a spring mechanism. The actuator's design ensures that when there is no power supply, the stored energy within the spring forces the actuator to return to a designated position—either opening or closing the valve, depending on the application. This action ensures safety by preventing uncontrolled system states, which could lead to equipment damage or hazardous situations.
The actuator is usually connected to a valve or damper that regulates fluid or gas flow. In the case of power loss, the internal spring is activated, moving the valve to its safety position without requiring any electrical power. This makes spring return actuators highly suitable for emergency shut-off applications where immediate response is required.
Key Features of Spring Return Electric Actuators
Fail-Safe Operation
In case of power failure, the actuator moves to a predefined safe position, such as fully open or fully closed.
Simple Design
The actuator relies on a spring to provide return force, making it less complex and more reliable in critical situations.
Low Power Consumption
Since the actuator uses a spring mechanism to return the valve to its safety position, it does not require continuous power to maintain its position.
Automated Control
The actuator can be integrated with control systems for automatic operation, offering greater efficiency and reliability in industrial automation.
Types of Actuators: Spring Return vs. Double Acting
Understanding the difference between spring return and double-acting actuators is key to choosing the right actuator for a given application.
Spring Return Actuators
Operation
In a spring return actuator, air or liquid is supplied to one side of the piston to move the actuator in one direction (either open or close). The internal spring then returns the actuator to its safe position when the power supply is cut.
Application
Spring return actuators are ideal for situations where a simple, reliable, and quick response is needed in the event of a failure. They are typically used for safety-critical systems such as emergency shutdown valves, pressure relief valves, and other equipment that must fail to a safe state immediately upon power loss.
Advantages
Simple and robust design.
Ideal for emergency shutdown applications.
Fewer components lead to higher reliability.
Cost-effective in certain applications.
Double Acting Actuators
Operation
Double acting actuators use air or liquid supplied to both sides of the piston. This creates movement in both directions: one side provides force for opening, and the other side provides force for closing. Both sides are pressurized to allow for precise control in both directions.
Application
Double acting actuators are ideal for applications that require a high level of precision in movement and where high torque is necessary for both directions of operation. They are commonly used in industries such as oil and gas, petrochemical, and heavy manufacturing, where large valves with high thrust or torque requirements are needed.
Advantages
Capable of withstanding high torque loads in both directions.
Suitable for larger, more complex valve control systems.
Provides precise control over valve position in both open and closed states.
Differences Between Spring Return and Double Acting Actuators
Design Simplicity
Spring return actuators have a simpler design, making them more cost-effective and easier to maintain. Double acting actuators, on the other hand, are more complex as they require a pressurized supply on both sides of the piston.
Torque Requirements
Spring return actuators are ideal for situations with lower torque requirements in a single direction, while double acting actuators are designed for higher torque loads in both directions.
Fail-Safe Features
Spring return actuators are fail-safe devices, designed to automatically return to a safe position when power is lost. Double acting actuators do not have this built-in fail-safe mechanism and will remain in their last position until external pressure is applied.
Applications
Spring return actuators are typically used in safety-critical applications where equipment must automatically return to a safe state, such as emergency shutdown systems, while double acting actuators are often used in systems where high precision, strength, and reliability are required, such as in the oil and gas industry.
Spring-Return Actuator vs. Non-Spring Return Actuator
Spring-Return Actuator
A spring-return actuator, also known as a fail-safe actuator, features a built-in spring mechanism that automatically returns the actuator to its default position (usually fully open or fully closed) when the control signal is lost or removed. When the actuator receives a command, the spring compresses or expands to move the valve to the desired position. In the event of power loss, signal failure, or other control interruptions, the spring force overcomes the actuator’s control force, ensuring it returns to its safe position. This type of actuator is ideal for applications where safety is a priority, such as in emergency shutdown systems, fire protection systems, or safety ventilation systems. The fail-safe feature is critical for preventing dangerous situations when control signals fail.
Non-Spring Return Actuator
A non-spring return actuator, also called a direct-drive actuator, relies on continuous power from the control signal to maintain its position. It does not have a spring to return it to a default position. Instead, it stays in the last commanded position until a new signal is received. These actuators are commonly used in systems where fail-safe operation is not critical, or where the actuator needs to hold its position even if power is lost. They often feature position feedback sensors for real-time monitoring of the actuator's position, ensuring accurate control.
Applications of Spring Return Electric Actuators
Spring return electric actuators are used in a wide range of industries due to their fail-safe nature and ease of integration into automated systems. Some of the most common applications include:
Emergency Shutoff Valves
Used to quickly stop the flow of liquids or gases in hazardous situations, ensuring safety in case of a power failure.
Fire Protection Systems
In fire safety systems, spring return actuators are used to automatically close fire dampers or valves to isolate sections of the building or system during a fire.
Pressure Relief Systems
These actuators are used in pressure relief valves to ensure that excess pressure is safely vented or released in the event of an overpressure condition.
Water Treatment Plants
In wastewater and water treatment facilities, actuators control valves that manage the flow of chemicals, water, and waste. The spring return function ensures that valves are closed in case of power outages, preventing contamination or damage.
Industrial Automation
Many automated manufacturing processes rely on spring return actuators for controlling fluid, gas, or air flow. These systems often operate in environments where safety is paramount, such as pharmaceutical manufacturing or food processing.
Conclusion
In industries where safety, reliability, and automation are key, spring return electric actuators provide an essential fail-safe mechanism. By automatically returning to a preset safe position during a power failure, these actuators prevent damage to systems and ensure the safety of both equipment and personnel. While they are best suited for applications requiring immediate action in the event of a failure, double acting actuators are ideal for situations where higher torque loads and precise control are needed in both directions. Understanding the differences and applications of these actuators is critical in selecting the right device for your industrial needs.
By offering simple yet effective solutions for critical safety applications, spring return electric actuators play a crucial role in maintaining operational safety and efficiency in industries across the globe.
