Introduction
Pneumatic ball valves are essential components in modern fluid and gas control systems. Used for controlling the flow of liquids and gases, they rely on a rotating ball mechanism to either allow or block the passage of fluid through a pipeline. What makes pneumatic ball valves particularly versatile is their integration with pneumatic actuators, which convert compressed air into mechanical motion to control the ball's rotation. This type of valve offers many advantages, including ease of use, reliability, and cost-effectiveness, making it a popular choice for a variety of industrial applications.
In this article, we will explore the mechanics of pneumatic ball valves, their components, installation considerations, and maintenance tips to ensure these valves function efficiently throughout their operational life.
What is a Pneumatic Ball Valve?
A pneumatic ball valve consists of two primary components: the ball valve itself and the pneumatic actuator. The ball valve has a hollow, spherical ball with a hole (or bore) that, when aligned with the flow path, allows fluid to pass through. When the valve is turned, the ball rotates 90 degrees, either blocking the flow or opening it up, depending on the position of the bore.
The pneumatic actuator controls the movement of the ball by using compressed air. Pneumatic actuators operate by converting the energy from compressed air into mechanical motion, which turns the ball valve. The actuator can be either single-acting or double-acting, depending on how it functions:
Single-Acting Actuator
A single-acting pneumatic actuator requires compressed air to move the ball in one direction. When the air supply is removed, a spring automatically returns the valve to its default position, making it ideal for fail-safe applications.
Double-Acting Actuator
A double-acting actuator uses compressed air to move the ball in either direction. This type of actuator is typically used in applications where more control over the flow direction is required.
The key advantage of pneumatic ball valves is that they offer a quick response time and are less expensive than electric actuated ball valves, particularly when dealing with larger valve sizes. They are also known for their durability and ability to handle high-pressure and high-temperature applications.
Components of Pneumatic Ball Valves
Pneumatic Actuator
This is the device that converts compressed air into motion to turn the ball valve. Pneumatic actuators are usually mounted on top of the ball valve using a standard flange that adheres to the ISO 5211 mounting standard. This standard ensures that the actuator can be swapped out easily with another of the same size. Pneumatic actuators come in various sizes, and they can be either spring-return (single-acting) or double-acting.
Ball Valve
The ball valve consists of a rotating ball with a hole (bore) through the middle. When the valve is open, the hole aligns with the pipe, allowing fluid to flow through. When the valve is closed, the ball rotates 90 degrees, and the hole is perpendicular to the flow path, blocking the flow.
ISO 5211 Flange
This standard flange ensures that the pneumatic actuator and ball valve are compatible and can be easily assembled. The flange is available in different sizes, such as F03, F04, and F05, which correspond to the diameter of the actuator’s drive shaft. The actuator and valve must have the same flange size to ensure a secure and proper connection.
Spring and Seals
Seals and springs are critical for maintaining the valve’s integrity, ensuring a tight seal during operation and ensuring that the actuator returns the valve to its default position in single-acting systems.
5 Connection Methods of Pneumatic Ball Valves

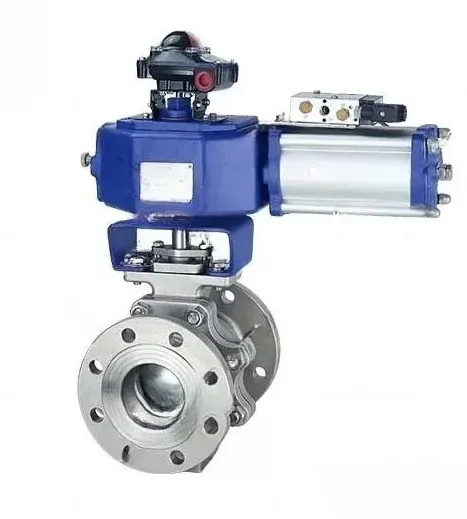

1. Flanged Pneumatic Ball Valves
Flanged connections involve two pipelines or equipment, each fitted with a flange. A gasket is placed between the flanges, which are then bolted together to create a secure and removable joint. The key advantage of this connection type is its ease of installation and disassembly.

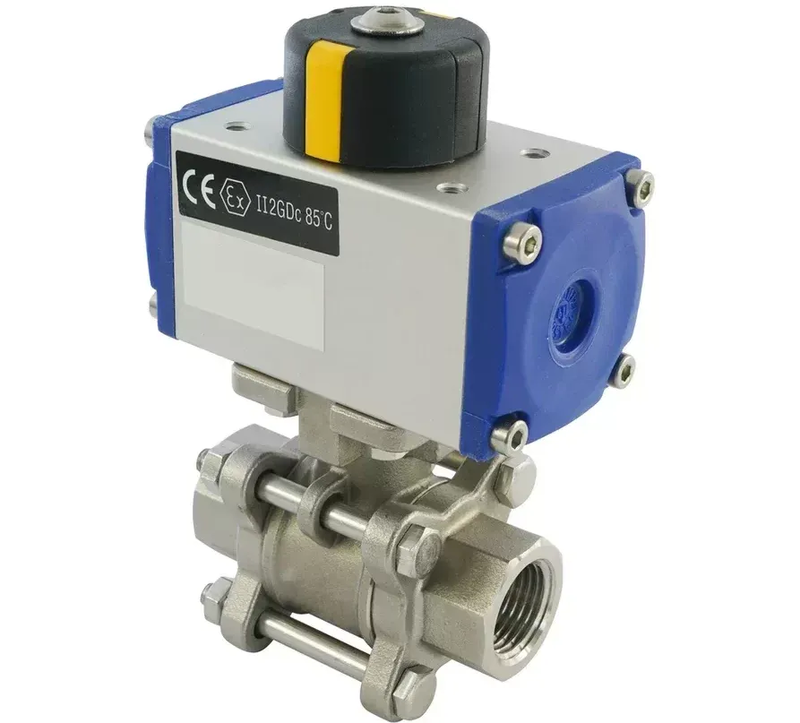

2. Threaded Pneumatic Ball Valves
Threaded valves feature threaded ends that allow for easy connection to pipes, ensuring a reliable, leak-proof seal. This method is ideal for smaller systems or applications where space is limited.
3. Tri-Clamp Pneumatic Ball Valves
Common in sanitary and food-grade applications, tri-clamp valves use a clamp to secure the valve between two pipe ends, providing a quick and hygienic connection.
4. Wafer Type Pneumatic Ball Valves
These valves are mounted between two flanges using bolts that compress the valve body, offering a compact, cost-effective solution.
5. Welded Pneumatic Ball Valves
Welded valves are permanently attached to pipes via welding, ensuring a strong, leak-free connection ideal for high-pressure applications.
How Pneumatic Ball Valves Work
The operation of a pneumatic ball valve is fairly straightforward. The ball valve is mounted in a pipeline, with the pneumatic actuator connected to the valve. When compressed air is supplied to the actuator, it moves the valve into the open or closed position.
In an open position
The hole in the rotating ball aligns with the flow path, allowing fluid or gas to flow through the valve.
In a closed position
The ball rotates 90 degrees, and the hole is perpendicular to the flow path, completely stopping the flow of fluid.
This simple design makes pneumatic ball valves particularly reliable for many industries, including water treatment, chemical processing, and oil and gas.
Installation Considerations
When installing pneumatic ball valves, several factors need to be considered to ensure the valve functions correctly and safely throughout its lifespan.
Environment and Safety
The first consideration should be the environment in which the pneumatic ball valve will operate. The temperature, pressure, and type of fluid or gas flowing through the valve will impact the valve's performance. It’s essential to ensure the valve components are rated for these conditions. Additionally, safety protocols should be followed during installation, such as wearing protective gear when handling lubricants or solvents.
Compatibility
Before installation, ensure the pneumatic actuator and ball valve are compatible with the pressure and temperature ratings of your system. All connections, including threads, seals, and gaskets, should be checked for proper fitment and security to prevent leakage.
Ease of Maintenance
Consider the long-term maintenance and serviceability of the valve. Pneumatic ball valves require periodic maintenance, including inspections for wear and tear, cleaning, and lubrication. It’s important to plan for easy access to the valve for regular checks and servicing. In case of any doubt or uncertainty, consult a professional to ensure proper installation.
Maintenance and Troubleshooting Tips
Proper maintenance and regular troubleshooting are key to ensuring that pneumatic ball valves continue to operate effectively throughout their service life. Below are some essential maintenance tips and troubleshooting strategies for pneumatic ball valves.
Regular Inspections
Inspect the valve regularly for signs of damage, corrosion, or excessive wear. Any of these issues could lead to reduced performance or complete failure of the valve. Regular inspections can help identify potential problems before they lead to downtime or more costly repairs.
Check for Leaks
Leaks in pneumatic systems can lead to significant inefficiencies, so it’s essential to inspect seals, gaskets, and connections for leaks. Tighten any loose connections and replace seals as necessary to prevent air loss and maintain optimal pressure levels.
Lubrication
The internal components of the pneumatic actuator require regular lubrication to ensure smooth operation. Use only lubricants that are compatible with your system to avoid damage. Lubrication should be performed as part of routine maintenance to prevent the actuator from jamming or wearing prematurely.
Monitor Air Supply
For pneumatic actuators, ensure that the compressed air supply is clean and dry. Contaminants in the air can cause damage to the actuator and other components, leading to poor performance or failure. Additionally, check the pressure of the air supply to ensure it falls within the required operating range for your specific actuator.
Troubleshooting Malfunctions
In case of a malfunction, consult the manufacturer's documentation for troubleshooting advice. Common issues include issues with the air supply, actuator malfunction, or valve blockage. If you cannot resolve the issue through basic troubleshooting, it’s essential to seek advice from a qualified technician. Never attempt to operate a malfunctioning valve, as this could cause further damage or pose safety risks.
Avoid Overloading
Pneumatic ball valves are designed to handle specific flow rates and pressures. Operating the valve outside of its rated limits can lead to premature failure. Ensure that the valve is correctly sized for your system to avoid overloading.
Conclusion
Pneumatic ball valves are an indispensable component in many industrial systems, offering precise control over fluid and gas flow. Their simplicity, reliability, and low cost make them an attractive option for a variety of applications, from water and wastewater treatment to oil and gas pipelines. By understanding the key components of a pneumatic ball valve, installation considerations, and regular maintenance practices, you can ensure that your valve operates efficiently and safely for many years. Whether you are installing a new valve or troubleshooting an existing system, these best practices will help you maintain optimal performance and prevent costly downtime.
