A control valve is an essential component in a variety of industrial systems, used to regulate the flow, pressure, or temperature of a fluid in pipelines. It’s typically controlled through a valve controller, which receives feedback from the system to adjust the valve's position accordingly. The controller continually compares the feedback signal from the process with the desired parameters (such as pressure, temperature, or flow rate) and determines the necessary valve action to maintain the optimal operating conditions.
The term "control valve controller" is often used interchangeably with "valve pilot" or "pressure pilot," especially in systems that utilize pressure regulation. A pilot valve serves as a tool to monitor and control the upstream or downstream pressure by adjusting the position of a control valve. It does so by sensing a process variable—usually pressure—and sending a corresponding signal to the control valve diaphragm. Based on this signal, the diaphragm adjusts the valve stem to regulate the fluid flow through the valve, ensuring that the process conditions remain within the desired set points.
Let’s dive into the different types of control valves and the technologies behind their controllers to better understand how these systems work.

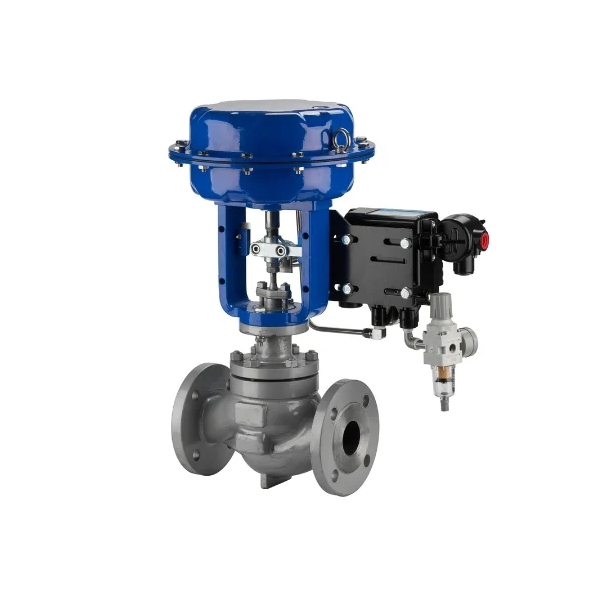

1. Pneumatic Control Valves
Pneumatic control valves are among the most commonly used valve types in industries requiring accurate flow regulation. These valves use pneumatic actuators, which are powered by compressed air to move the valve stem. The actuator’s movement is controlled by a pneumatic pilot, which functions as the controller for the valve.
How Pneumatic Control Valves Work
A pneumatic control valve relies on a feedback system that involves a signal from the process that is compared with a desired set point. The pilot valve senses the pressure in the system and sends a corresponding signal to the pneumatic actuator. This actuator adjusts the valve's position (typically through a diaphragm or piston mechanism), either opening or closing the valve to regulate fluid flow.
Pneumatic Pilot
The pilot is essentially the "brain" of the control system. It uses air pressure to monitor the process variable, such as pressure or flow rate, and sends a signal to the actuator to adjust the valve position.
Mechanical Positioner
The mechanical positioner receives the signal from the pneumatic pilot and positions the valve to ensure that the correct flow rate or pressure is maintained. It can be manually calibrated or adjusted, providing mechanical precision in controlling the valve.
Digital/Smart Positioner
These modern positioners are equipped with microprocessor-based control systems that provide enhanced precision and communication. They allow for automatic calibration, diagnostics, and remote monitoring. Digital or smart positioners can integrate with higher-level control systems, enabling automation and improving efficiency.
Advantages of Pneumatic Control Valves
Reliability
Pneumatic systems are highly reliable, with fewer mechanical parts that can wear out, making them ideal for critical processes.
Quick Response Time
Pneumatic systems react quickly to changes in pressure or flow, making them suitable for applications where rapid adjustments are necessary.
Cost-Effective
Pneumatic systems generally cost less than electric control systems and require less maintenance.
Common Applications
Pneumatic control valves are often found in industries such as oil and gas, chemicals, water treatment, and manufacturing. These valves are typically used to regulate pressure, flow, and temperature in pipeline systems, ensuring smooth and safe operations.

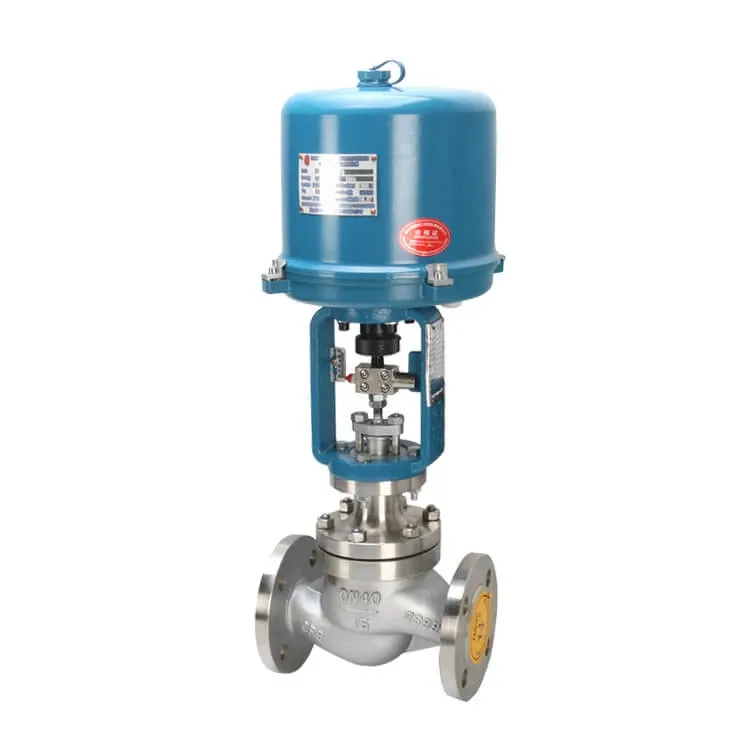

2. Electric Control Valves
Electric control valves are commonly used in systems that require precise, automated control over process variables. Instead of using compressed air for actuation, electric actuators use electric motors to adjust the position of the valve.
How Electric Control Valves Work
In an electric control valve system, the actuator is powered by an electric motor that receives a signal from the valve controller. This signal can come from a Programmable Logic Controller (PLC), Remote Terminal Unit (RTU), or other automated control system. The controller compares the real-time feedback from the process with the desired parameters, sending a corresponding signal to the actuator to move the valve to the appropriate position.
Electric Pilot
In electric control systems, the pilot is often integrated with a PLC or RTU, which allows for more sophisticated control algorithms. These controllers are capable of receiving inputs from multiple sensors in the system, which allows for more dynamic, complex control strategies.
Feedback Loop
Electric control systems use a feedback loop to continuously monitor the valve position and adjust it to ensure that the system remains within desired operational limits. This feedback can come from an electronic position sensor or encoder.
Programmable Logic Controllers (PLC)
PLCs are used extensively in electric control valve systems. They process signals from various sensors and control devices in real time, adjusting the valve's position based on preset parameters. PLC-based systems are flexible and can easily be reprogrammed to accommodate changing process requirements.
Advantages of Electric Control Valves
Precision Control
Electric actuators offer more precise control compared to pneumatic systems, making them ideal for applications requiring fine adjustments and high accuracy.
Integration with Automation Systems
Electric valves can easily integrate with modern control systems such as SCADA (Supervisory Control and Data Acquisition) or DCS (Distributed Control Systems), offering remote monitoring, diagnostics, and control.
Energy Efficiency
Unlike pneumatic valves, electric actuators do not require a continuous supply of compressed air, making them more energy-efficient and reducing operational costs.
Common Applications
Electric control valves are widely used in applications that require automated, high-precision control, such as in HVAC (Heating, Ventilation, and Air Conditioning) systems, pharmaceutical production, food processing, and water treatment plants.
3. Key Components of Control Valve Systems
Control valve systems—whether pneumatic or electric—are made up of several key components that ensure efficient operation. Each part plays a vital role in maintaining the correct flow and pressure within the system.
Control Valve
The main actuator that adjusts the flow of fluid in response to signals from the controller.
Controller
The device that processes the feedback signals from the system and sends control signals to the valve actuator.
Positioner
A device that adjusts the valve’s position to maintain the desired flow rate or pressure.
Pilot
A smaller valve used in conjunction with the controller to regulate pressure or other process variables.
Feedback System
Sensors or devices that provide real-time data about the process variables, helping the controller adjust the valve position accordingly.
4. How Control Valve Controllers Improve Process Efficiency
Control valve controllers are crucial in modern industrial applications. They offer the following key benefits:
Enhanced Process Control
By continually adjusting valve positions based on feedback, control valve controllers ensure that systems remain within optimal operating conditions, which improves process reliability and reduces downtime.
Cost Savings
Control valves help optimize fluid flow and energy usage in a system. By minimizing the waste of resources such as energy or raw materials, control valve controllers can reduce overall operating costs.
Increased System Longevity
By maintaining consistent operational conditions, control valve controllers reduce the risk of damage to other system components, such as pumps, compressors, and pipes, extending the lifespan of the entire system.
Improved Safety
Control valves are integral to maintaining safe pressure levels and fluid flow. By preventing over-pressurization or fluid starvation, they help avoid catastrophic system failures.
5. Conclusion
Control valve controllers play a vital role in regulating the performance of various industrial systems. Whether using pneumatic or electric control systems, these devices ensure that valves are positioned correctly to maintain the desired pressure, temperature, or flow rates. By providing feedback to the valve actuator, controllers enable efficient system operation, contributing to cost savings, improved safety, and enhanced process performance.
As industries continue to evolve, control valve controllers are becoming more sophisticated, incorporating advanced technologies like smart positioners, PLCs, and remote monitoring systems. These innovations allow for even more precise control, reducing human intervention, improving automation, and ensuring reliable system operation across a wide range of industrial applications.
With the growing emphasis on automation and process optimization, control valve controllers will remain essential in ensuring the smooth and efficient operation of modern industrial systems.
