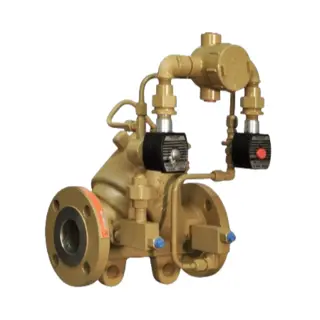

Piston Control Valve, DN50-DN400, Class 150-900 LB
Key Specifications / Features
hits: 0
Leading the industry in piston control valve manufacturing, we specialize in precision flow control and reliable shut-off capabilities. Our valves cater to a wide range of applications, spanning from DN50 to DN400 (2 to 16 inches) and compatible with Class 150 to 900 LB (PN20 to PN150) systems. Crafted from robust carbon steel, our valves meet the rigorous ASTM A352 LCC standards, ensuring durability and performance excellence. Trust our piston control valves for optimal operation and seamless integration into your industrial processes.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Piston Control Valve
Sizes: DN50-DN400, 2 Inch - 16 Inch
Pressure Rating: Class 150 LB - 900 LB, PN20-PN150
Materials: Carbon Steel, ASTM A352 LCC, Stainless Steel, Nickel Coated
O-Ring Materials:
Standard: Viton Dynamic and Buna-N Static
Optional: Neoprene, EPR, Viton GFLT, all Buna-N
Voltage Options: 12 VDC, 24 VDC, 110/120 VAC, 220/240 VAC
Features:
The 45° valve design ensures high capacity while maintaining a low pressure drop.
ANSI Class 6 rating guarantees zero seat leakage.
Inherently prevents reverse flow for added safety.
Universal valve parts enable a reduced spare part inventory.
Simple design, devoid of diaphragms or stuffing boxes, minimizes repair time.
Options for A.P. elastomers and coatings cater to aggressive product applications.
Valve pilots offer precise pressure control within a range of 10 to 1,440 PSI (+/-2 PSI).
Large internal pilot ports accommodate high-pressure applications.
Pre-wired solenoids can be integrated for flow control/loading.
Options for opening/closing speed control prevent valve slam.
Pre-plumbed digital valve/pilot kits reduce field downtime.
A strainer/needle valve in the control loop ensures clean product delivery to pilots/solenoids.
Valves can be equipped with customer-specified parts such as a Rexa Actuator.
Product Name: Piston Control Valve
Sizes: DN50-DN400, 2 Inch - 16 Inch
Pressure Rating: Class 150 LB - 900 LB, PN20-PN150
Materials: Carbon Steel, ASTM A352 LCC, Stainless Steel, Nickel Coated
O-Ring Materials:
Standard: Viton Dynamic and Buna-N Static
Optional: Neoprene, EPR, Viton GFLT, all Buna-N
Voltage Options: 12 VDC, 24 VDC, 110/120 VAC, 220/240 VAC
Features:
The 45° valve design ensures high capacity while maintaining a low pressure drop.
ANSI Class 6 rating guarantees zero seat leakage.
Inherently prevents reverse flow for added safety.
Universal valve parts enable a reduced spare part inventory.
Simple design, devoid of diaphragms or stuffing boxes, minimizes repair time.
Options for A.P. elastomers and coatings cater to aggressive product applications.
Valve pilots offer precise pressure control within a range of 10 to 1,440 PSI (+/-2 PSI).
Large internal pilot ports accommodate high-pressure applications.
Pre-wired solenoids can be integrated for flow control/loading.
Options for opening/closing speed control prevent valve slam.
Pre-plumbed digital valve/pilot kits reduce field downtime.
A strainer/needle valve in the control loop ensures clean product delivery to pilots/solenoids.
Valves can be equipped with customer-specified parts such as a Rexa Actuator.
