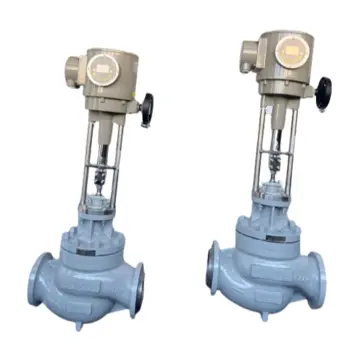

Electric Control Valve, Class 150-2500 LB, ASTM A216 WCB
Key Specifications / Features
Hits: 1
Electric control valves are essential in industrial automation, finding extensive application in oil, chemicals, power generation, and pharmaceutical sectors. Our experts offer precise guidance on model parameters and operational conditions, ensuring optimal selection and utilization of these valves. Compliant with ANSI/ISA 75.01.01 and ASME B16.34 standards, with Face to Face Standard ASME B16.10 and Flange Standard ASME B16.5, they cover sizes from 1 inch to 24 inches (DN25-DN600). With pressure ratings ranging from Class 150 LB to 600 LB (PN20-PN100) and crafted from A216 WCB, these valves guarantee reliability and efficiency across diverse industrial requirements. Flow characteristics include Equal Percentage and Linear, with a broad temperature range of -196 to +550°C.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Electric Globe Control Valve
Design Standard: ANSI/ISA 75.01.01 & ASME B16.34
Body Materials: ASTM A216 WCB, WC6, ASTM A352 LCB, ASTM A351 CF8, CF8M, CF3M, CF3
Size Ranges: 1 Inch - 24 Inch, DN25-DN600
Pressure Rating: Class 150 LB - 600 LB, PN20-PN100
Flow Characteristics: Equal Percentage, Linear
Face to Face Standard: ASME B16.10
Flange Standard: ASME B16.5
Temperature Range: -196 to +550°C
Electric Actuator Basics:
Power Supply: Options DC24V, AC220V, AC380V.
Input Control Signal: Typically 4-20MA or DC1-5V.
Feedback Control Signal: Usually DC4-20MA (load resistance under 500 ohms).
Product Name: Electric Globe Control Valve
Design Standard: ANSI/ISA 75.01.01 & ASME B16.34
Body Materials: ASTM A216 WCB, WC6, ASTM A352 LCB, ASTM A351 CF8, CF8M, CF3M, CF3
Size Ranges: 1 Inch - 24 Inch, DN25-DN600
Pressure Rating: Class 150 LB - 600 LB, PN20-PN100
Flow Characteristics: Equal Percentage, Linear
Face to Face Standard: ASME B16.10
Flange Standard: ASME B16.5
Temperature Range: -196 to +550°C
Electric Actuator Basics:
Power Supply: Options DC24V, AC220V, AC380V.
Input Control Signal: Typically 4-20MA or DC1-5V.
Feedback Control Signal: Usually DC4-20MA (load resistance under 500 ohms).
