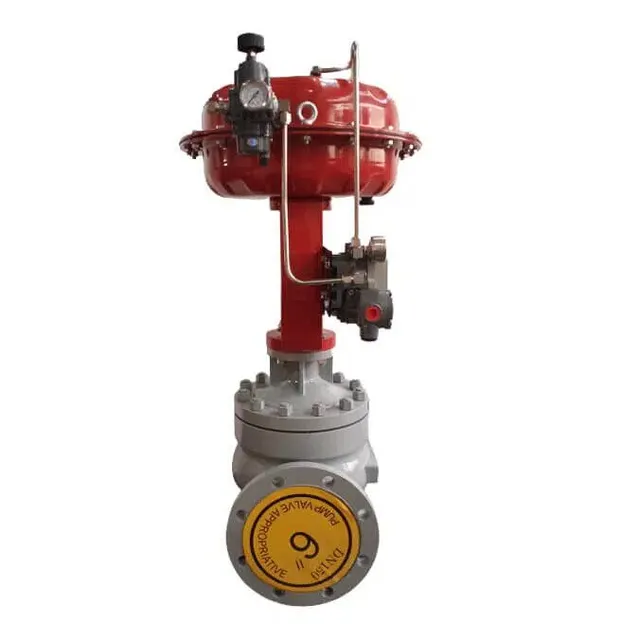

Straight-Through Cage Control Valves, 6 Inch, 150 LB, WCB

Key Specifications / Features
Hits: 3
The Globe Straight-Way Series, made from ASTM A216 WCB, is available in 6-inch sizes and pressure ratings from 150 LB to 2500 LB, with flanged or butt-welded connections. This versatile control valve excels in various applications due to its balanced and cage-guided plug, providing high performance. The HCB Series is particularly suited for heavy-duty and demanding service conditions. Its simple construction, extensive range of trim types, and diverse materials make it ideal for high-temperature and corrosive fluids, severe low-noise requirements, and sour service per NACE standards.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Straight-Through Cage Control Valve
Product Name: Linear Cage Control Valves
Applications: Power Plants, Chemical Plants, Sugar Mills, and Textile Mills.
Materials: ASTM A216 WCB, SS 304, SS 316, ASTM A351 CF8M, CF3M, CF3, CF8, ASTM A352 LCB, LCC, 2205, Duplex stainless steel etc.
Sizes: 1 Inch, 2 Inch, 3 Inch, 4 Inch, 6 Inch, 8 Inch, 10 Inch, 12 Inch, 14 Inch, 16 Inch, 18 Inch, 20 Inch
Pressure Ratings: ANSI Class 150 LB, 300 LB, 600 LB, 900 LB, 1500 LB, 2500 LB
End Connection: Flanged, butt-welded, socket-welded, and threaded
Face-to-face dimensions as per IEC 60534-3-2 – long series
Flow direction: flow to open, flow to close
Main advantages:
1. Handles high-pressure drops with no practical limitations
2. Enhanced plug stability from large guiding areas
3. Wide-range capability supported by numerous reduced capacity trims
4. Excellent noise reduction with low-noise single-stage trim for gas and steam services
5. Superior cavitation protection for liquid services
6. Available multistage trims for advanced cavitation control
7. Balanced plug construction reduces thrust and actuator sizes
8.Piloted plug construction ensures tight shut-off up to Class V in high-temperature services
Product Name: Straight-Through Cage Control Valve
Product Name: Linear Cage Control Valves
Applications: Power Plants, Chemical Plants, Sugar Mills, and Textile Mills.
Materials: ASTM A216 WCB, SS 304, SS 316, ASTM A351 CF8M, CF3M, CF3, CF8, ASTM A352 LCB, LCC, 2205, Duplex stainless steel etc.
Sizes: 1 Inch, 2 Inch, 3 Inch, 4 Inch, 6 Inch, 8 Inch, 10 Inch, 12 Inch, 14 Inch, 16 Inch, 18 Inch, 20 Inch
Pressure Ratings: ANSI Class 150 LB, 300 LB, 600 LB, 900 LB, 1500 LB, 2500 LB
End Connection: Flanged, butt-welded, socket-welded, and threaded
Face-to-face dimensions as per IEC 60534-3-2 – long series
Flow direction: flow to open, flow to close
Main advantages:
1. Handles high-pressure drops with no practical limitations
2. Enhanced plug stability from large guiding areas
3. Wide-range capability supported by numerous reduced capacity trims
4. Excellent noise reduction with low-noise single-stage trim for gas and steam services
5. Superior cavitation protection for liquid services
6. Available multistage trims for advanced cavitation control
7. Balanced plug construction reduces thrust and actuator sizes
8.Piloted plug construction ensures tight shut-off up to Class V in high-temperature services
